About the product

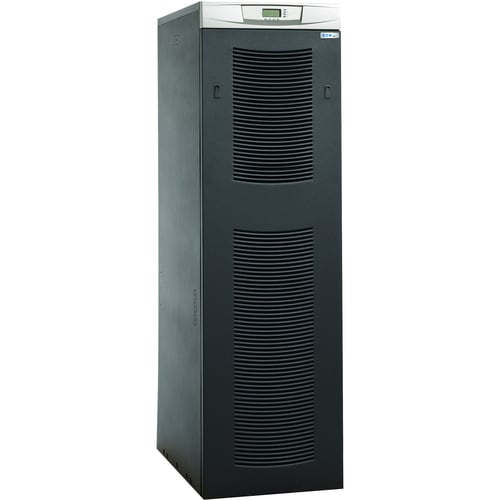

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
Technical Specifications
| Technical Information | |
| Transfer Time | 1 ms |
| Interfaces/Ports | |
| Modular Slots | 2 x X-Slot |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 11 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Power Management Software |
| Country of Origin | United States |
| Management | |
| Bypass Switch | Maintenance |
| Automatic | |
| Manual | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Weight (Approximate) | 526.17 kg |
| Form Factor | Tower |
| Height | 66" (1676.40 mm) |
| Width | 20" (508 mm) |
| Depth | 34.10" (866.14 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | KB3013200000010 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | 9355 |
| Product Name | 9355 UPS |
| Brand Name | Eaton |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Output Voltage | 208 V AC |
| 220 V AC | |
| 227 V AC | |
| 480 V AC | |
| 120 V AC | |
| Output Frequency | 60 Hz |
| Input Frequency | 65 Hz |
| Load Capacity (VA) | 30 kVA |
