About the product

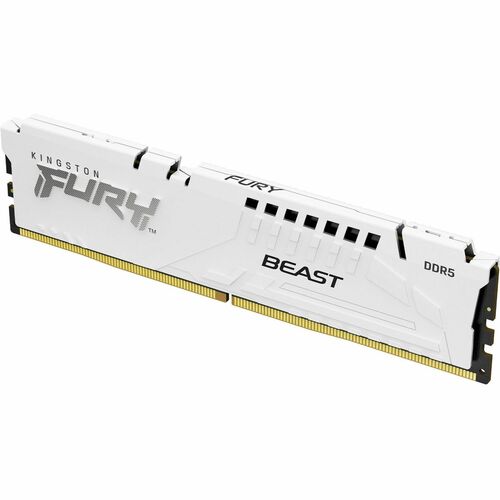

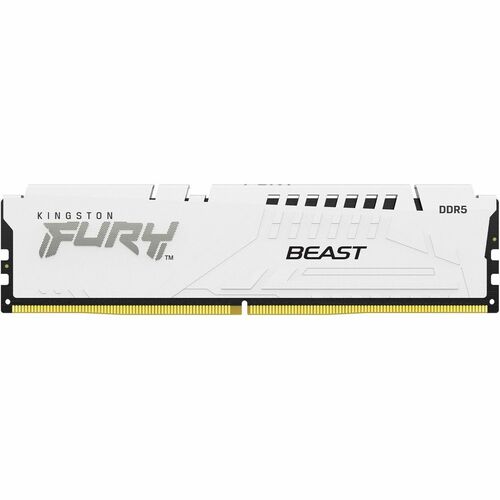

Kingston FURY KF560C30BW-16 is a 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at REACHDDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
DEFAULT FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
- DIMM 16 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- 6000 MHz of memory speed skillfully manages the variety of apps and computational tasks
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Technical Specifications
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Number of Pins | 288-pin |
| Thickness | 0.26" (6.62 mm) |
| Form Factor | DIMM |
| Length | 5.25" (133.35 mm) |
| Width | 1.37" (34.90 mm) |
| General Information | |
| Product Type | RAM Module |
| Manufacturer Part Number | KF560C30BW-16 |
| Manufacturer Website Address | http://www.kingston.com |
| Manufacturer | Kingston Technology Company |
| Product Name | 16GB (1x16GB) DDR5 6000MT/s CL30 FURY Beast White XMP |
| Product Line | FURY Beast |
| Brand Name | Kingston |
| Technical Information | |
| CAS Latency | CL30 |
| Error Checking | Non-ECC |
| Number of Modules | 1 x 16GB |
| Signal Processing | Unbuffered |
| Memory Speed | 6000 MHz |
| Memory Size | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-6000/PC5-48000 |
| Memory Voltage | 1.40 V |
| Memory Rank | Single-rank |
