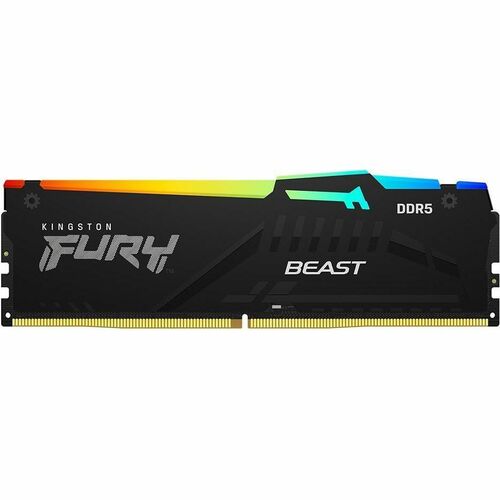

16GB 6800MT/S DDR5 CL34 DIMM FURY BEAST RGB XMP

Kingston FURY KF568C34BBA-16 is a 2G x 64-bit (16GB) DDR5-6800 CL34 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6800 at a low latency timing of 34-45-45 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-6800 CL34-45-45 @1.4V
• XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #3: DDR5-6000 CL30-36-36 @1.4V

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66" (42.23mm), w/heatsink

• DIMM 16 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
• 6800 MHz of memory speed with Unbuffered signal and CL34 latency makes your computer great at multitasking
• The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
