About the product

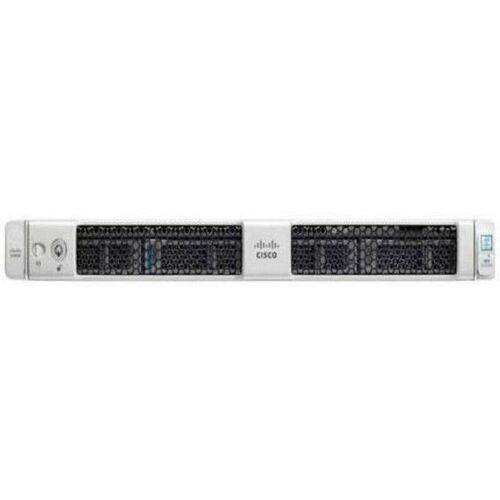

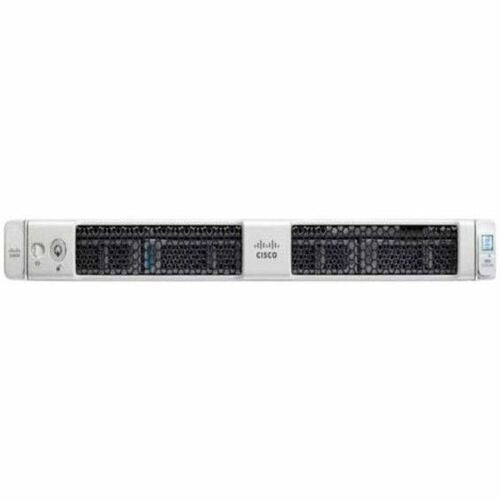

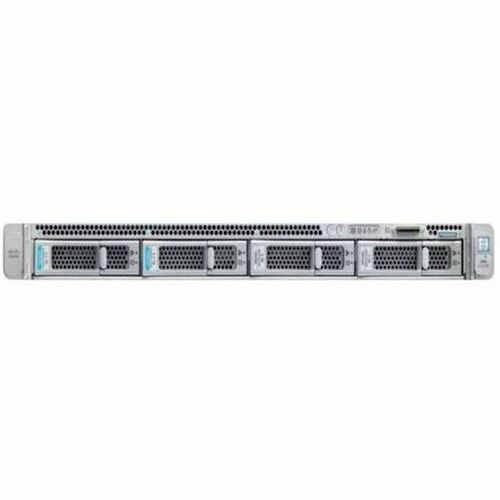

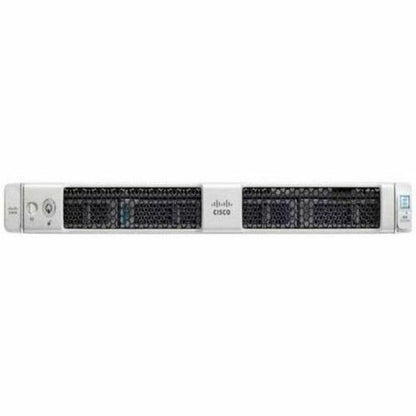

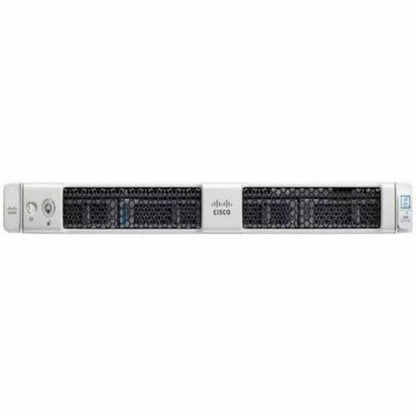

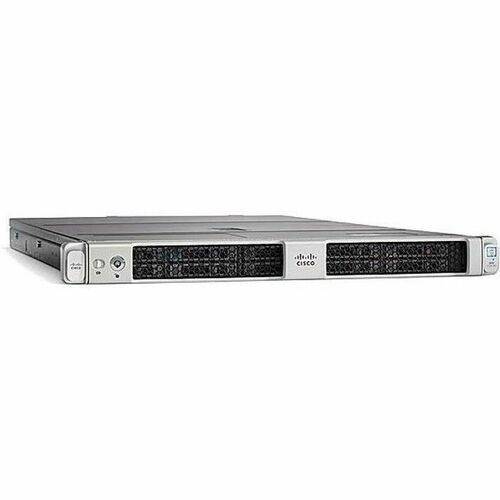

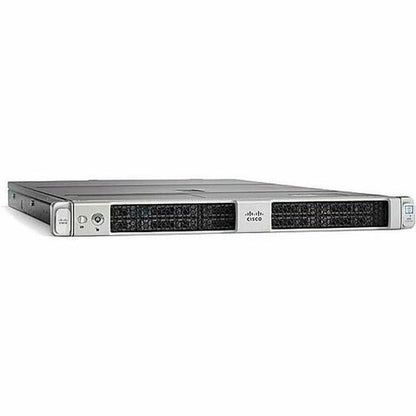

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- 770 W power supply unit (PSU) fulfills your system's power requirements
- RAID provides data reliability, fault tolerance and improves overall performance
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Additional Warranty Information |
|
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Controllers | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Technology | DDR4 SDRAM |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux |
| SuSE Linux Enterprise Server | |
| Windows Server 2022 Standard | |
| Windows Server 2019 Standard | |
| Windows Server 2022 Datacenter | |
| Windows Server 2019 Datacenter | |
| Physical Characteristics | |
| Weight (Approximate) | 59.97 lb (27200 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | KINUCSM51RUK9 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C220 M5 Server |
| Product Series | C220 M5 |
| Brand Name | Cisco |
| I/O Expansions | |
| Riser Card | 3 PCIe 3.0 slots via riser 1 |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| Number of LFF Bays | 4 |
| PCI Express Details | One full-height profile, 3/4-length slot with x24 connector and x16 lane; One half-height profile, half-length slot with x24 connector and x16 lane. |

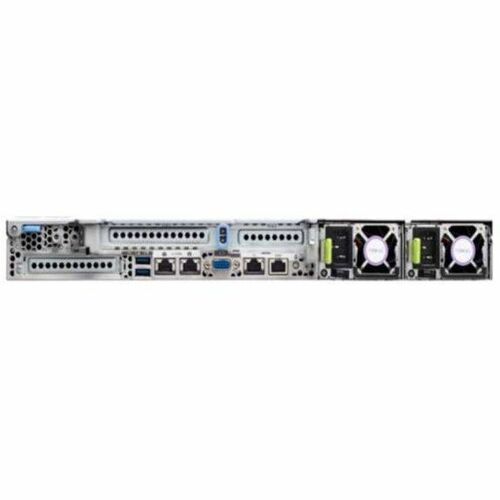

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Remote Management Controller | Cisco Integrated Management Controller (CIMC) |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 9 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 24 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 770 W |
| Processor | |
| Cache | 13.75 MB |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4114 |
| Processor Core | Deca-core (10 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
