About the product

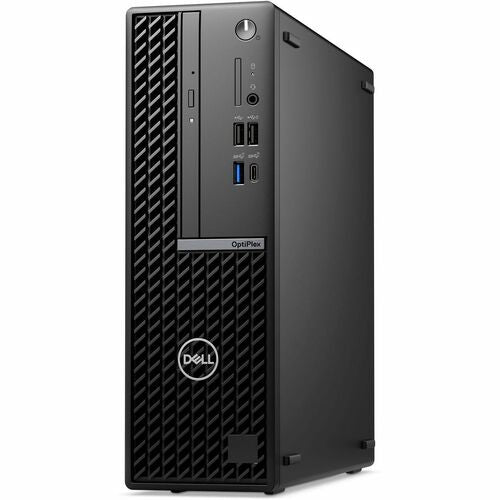

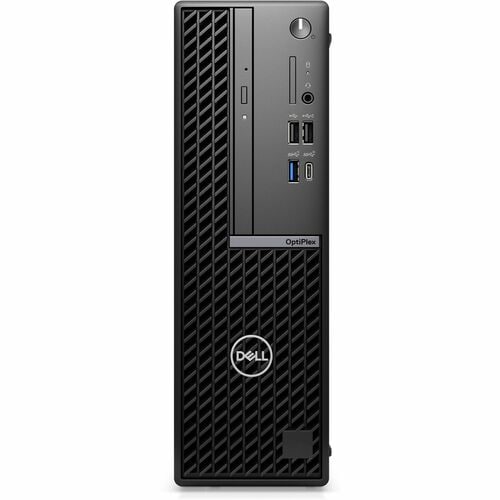

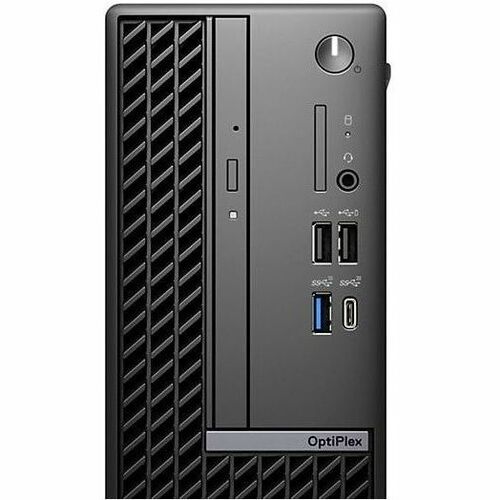

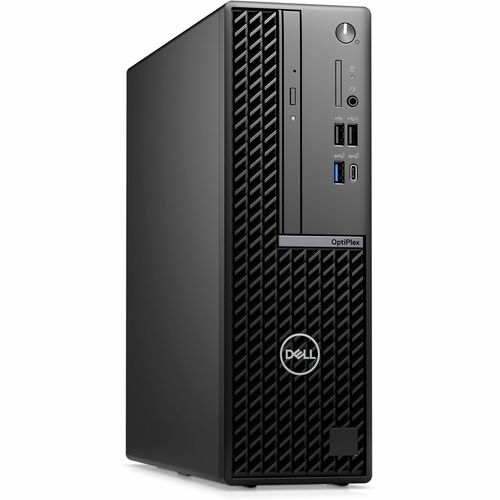

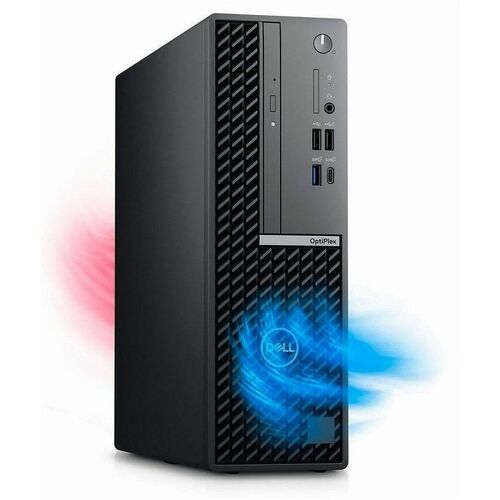

Designed for flexible performance options in the slimmest footprint possible, the OptiPlex Small Form Factor provides a clean desk solution while being highly expandable with no compromise on port options. Features an Intel Core processor, three native DisplayPorts, three M.2 SSD slots and a USB-C 3.2 Gen 2x2 (20 Gbps) port.
- Intel UHD Graphics 770 shared graphic card for watching HD videos, editing pictures, and complex office applications
- Intel Core i7 2.10 GHz processor provides lightning fast speed and peak performance even for toughest tasks and intensive games
- 32 GB of memory to get a remarkable gaming experience
- 512 GB SSD is enough to store your favorite songs, movies, pictures, and essential documents
- It's Windows 11 Pro operating system offers powerful platform to efficiently run routine applications
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Input Devices | |
| Keyboard Localization | English (US) |
| Power Description | |
| Maximum Power Supply Wattage | 260 W |
| Technical Information | |
| Release Year | 2024 |
| Warranty | |
| Additional Warranty Information | 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS |
| Network & Communication | |
| Wireless LAN | No |
| Ethernet Technology | Gigabit Ethernet |
| Operating System | |
| Operating System | Windows 11 Pro |
| Operating System Platform | Windows |
| Operating System Language | English/Spanish/French/Brazilian Portuguese |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Storage | |
| Drive Type | SSD |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Total Solid State Drive Capacity | 512 GB |
| SSD Form Factor | M.2 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Memory Configuration | 2 x 16 GB |
| Total Number of Memory Slots | 4.0 |
| Physical Characteristics | |
| Weight (Approximate) | 12.39 lb (5620 g) |
| Form Factor | Small Form Factor |
| Height | 11.42" (290.07 mm) |
| Width | 3.65" (92.71 mm) |
| Depth | 11.53" (292.86 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | KTK3V |
| Manufacturer Website Address | http://www1.ca.dell.com |
| Manufacturer | Dell Technologies |
| Product Model | 7020 Plus |
| Product Name | OptiPlex Small Form Factor (Plus 7020) |
| Product Line | OptiPlex |
| Product Series | 7000 |
| Brand Name | Dell |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) | |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Processor | |
| Processor Speed | 2.10 GHz |
| Processor Type | Core i7 |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Manufacturer | Intel |
| vPro Technology | Yes |
| Maximum Turbo Speed | 5.30 GHz |
| Processor Generation | 14th Gen |
| Processor Threads | 28 |

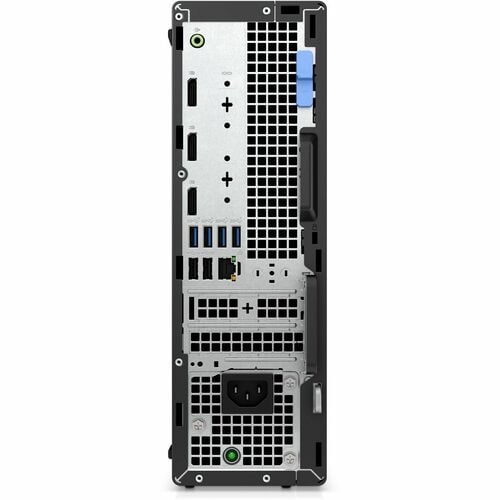

| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number Of Ethernet Ports | 1 |
| Number of HDMI Outputs (Rear) | 1 |
| HDMI (Rear) | Yes |
| Number of USB 2.0 Ports (Front) | 2 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of DisplayPort Outputs (Rear) | 3 |
| DisplayPort (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Optional Ports | Details regarding optional ports aggregated from the information available for this product's family/series |
