About the product
Extend KVM signals up to 33,000 feet (10km) over singlemode fiber via SFP
Technical Specifications
| Primary Information | |
| Device Type: | KVM Extender |
| Connectivity Technology: | Wired |
| Interfaces: | TRANSMITTERHost connection:Video Input: (2) DisplayPort female;Serial Control Port: (1) DB9 female;Link Port: (2) SFP cage;USB: (1) USB Type-B female;Audio: (1) Line in; (1) Line out;Local Video Output: (2) DisplayPort femaleRECEIVERConsole connection: ;Video Output: (2) DisplayPort female;Serial Control Port: (1) DB9 male;Link Port: (2) SFP cage;USB: (4) USB Type-A female;Audio: (1) Mic In; (1) Speaker Out |
| Connections: | USB |
| Max Resolution (external): | 3840x2160 |
| Data Link Protocol: | USB |
| Width: | 3.27 Inch |
| Depth: | 7.09 Inch |
| Height: | 0.83 Inch |
| Service & Support Type: | 2 Year Double Diamond Warranty (Standard) |

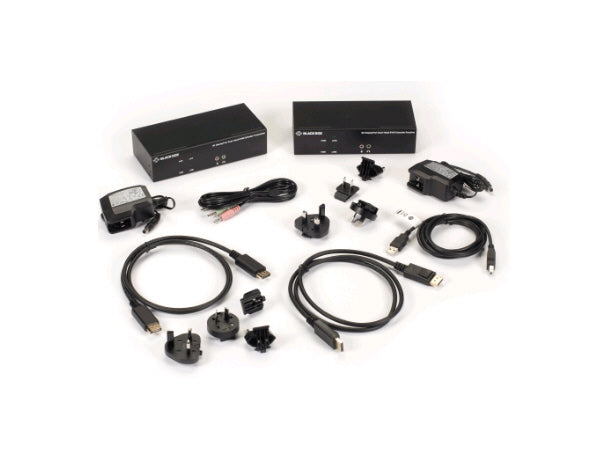

| What's Included: | (1) Transmitter(1) Receiver(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)(2) DisplayPort Cables 1.2m (4 ft.)(1) USB Type A To B Cable, M/M 1.8m (6 ft.)(1) 3.5-mm Dual Audio/Mic Cable, M/M 1.8m (6 ft.)(2) Deskmounting brackets (with screws) |
| Features: | DisplayPort 4K transmission up to 30 km over singlemode cableLocal and remote units connect at distances of up to 10 km using SFP below 1250 MbpsSupports DisplayPort UHD video resolution up to 3840x2160 at 30HzTransparent USB 2.0 extension supports HID devices, mass storage devicesSupports RS-232 peripheral (serial) devicesBi-directional audio via speaker/mic connectionLocal video port loopback for monitoring on transmitter (TX) unit |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43211604 |
