Black Box Corp Kvx Series Hdmi 4K Kvm Extender, Sh

Name: Black Box Corp Kvx Series Hdmi 4K Kvm Extender, Sh
Brand: Black
SKU: T598231
Price: 761.83 CAD
Availability: InStock

$761.83 CAD

~~$838.02 CAD~~ $761.83 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Black Box Corp Kvx Series Hdmi 4K Kvm Extender, Sh

VPN:KVXLCH-100 SKU:T598231 UPC:822088133650

Quantity

Product information summary

Extend KVM signals up to 100m over CAT5/6 cable.

Primary Information
Device Type:	KVM Extender
Networking Type:	Ethernet
Connectivity Technology:	Wired
Interfaces:	CATX TRANSMITTERHost Connection:Video Input: (1) HDMI (Female);Serial Control Port: (1) DB9 (Female);Link Port: (1) RJ45 (Female);USB: (1) USB Type-B (Female);Audio: (1) Line in; (1) Line out;Local Video Output: (1) HDMI (Female)CATX RECEIVERConsole Connection:Video Output: (1) HDMI (Female);Serial Control Port: (1) DB9 (Male);Link Port: (1) RJ45 (Female);USB: (4) USB Type-A (Female);Audio: (1) Mic In; (1) Speaker Out
Connections:	RJ-45
Max Resolution (external):	3840x2160
Data Link Protocol:	Gigabit Ethernet
Width:	3.27 Inch
Depth:	7.09 Inch
Height:	0.83 Inch
Service & Support Type:	2 Year Double Diamond Warranty (Standard)
Model:	KVXLCH-100

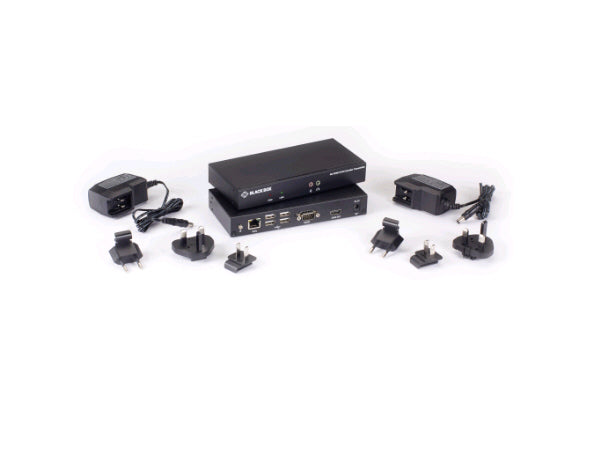

What's Included:	(1) Transmitter(1) Receiver(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)(1) HDMI Cable, M/M 1.2m (4 ft.)(1) USB Type A to B Cable, M/M 1.8m (6 ft.)(1) 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)(2) Deskmounting brackets (with screws)
Features:	HDMI video resolution up to UHD 4KRemote access up to 100 meterSupports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz over Fiber opticTransparent USB 2.0 extension supports HID devices, mass storage devicesSupports RS-232 peripheral (serial) devicesBi-directional audio via speaker/mic connectionLocal video port loopback for monitoring on transmitter (TX) unitSupports EDID pass-through
Special Feature
COO:	TAIWAN
UNSPSC Code
UNSPSC Code:	43211604
