About the product
Extend KVM signals up to 100m over CATx cable.
Technical Specifications
| Primary Information | |
| Device Type: | KVM Extender |
| Networking Type: | Ethernet |
| Connectivity Technology: | Wired |
| Interfaces: | Host Connection:Video Input: (1) HDMI (Female); (1) DisplayPort (Female)Serial Control Port: (1) DB9 (Female)Link Port: (1) RJ45 (Female)USB: (1) USB Type-B (Female)Audio: (1) Line in; (1) Line outLocal Video Output: (1) HDMI (Female); (1) DisplayPort (Female)Console Connection:Video Output: (2) HDMI (Female)Serial Control Port: (1) DB9 (Male)Link Port: (1) RJ45 (Female)USB 2.0: (4) USB Type-A (Female)Audio: (1) Mic In; (1) Speaker Out |
| Connections: | USB; RJ-45 |
| Max Resolution (external): | 3840x2160 |
| Data Link Protocol: | Gigabit Ethernet |
| Width: | 7.15 Inch |
| Depth: | 3.25 Inch |
| Height: | 1.1 Inch |
| Service & Support Type: | Double Diamond Warranty (Standard) |
| Model: | KVXLCHDP-200 |

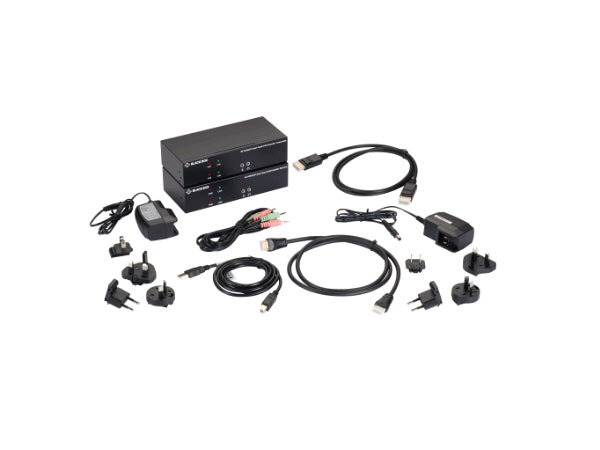

| What's Included: | (1) Transmitter(1) Receiver(2) 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types)(1) HDMI Cables 1.2m (4 ft.)(1) DisplayPort Cables 1.2m (4 ft.)(1) 3.5mm Audio Cable 1.8m (6 ft.)(1) USB-B to USB-A Cable 1.8m (6 ft.) |
| Features: | DisplayPort or HDMI Dual Head transmission up to 100m over standard CATx cableLocal and remote units connect at distances of up to 330 feet (100m) using two CAT5e cablesSupports DisplayPort and HDMI video resolution up to 3840x2160 at 30HzTransparent USB 2.0 extension supports HID devices, mass storage devicesSupports RS-232 peripheral (serial) devicesBi-directional audio via speaker/mic connectionLocal video port loopback for monitoring on transmitter (TX) unit |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43211604 |
