About the product
Improving Visual Precision with Micro Pixel Technology
LG MAGNIT's Micro Pixel Pitch Technology offers remarkable visual precision. Our advanced LED chips provide impressive detail accuracy and precise light control, delivering crystal-clear images on the display. With accurate color expression, every hue is rendered with stunning clarity and depth, providing a true-to-life visual experience. Enjoy the fineness of display technology with LG MAGNIT.
Enhanced Uniformity with LST (LG Surface Treatment) Technology
LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces color distortion across a wide viewing angle, delivering true and accurate viewing experiences. This technology ensures remarkable color uniformity, resulting in superb image quality.
Achieving Deep Black with Black Coating Technology
LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards, combined with the black coating technology and reduced spacing between the chips and the board, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black color, ensuring that every image is rich, vibrant, and true to life.
AI-powered Viewing Experience with Alpha 7 Processor
LG MAGNIT features an advanced AI-powered Alpha 7 Intelligent Processor that provides clarity and sharpness to deliver an immersive viewing experience. Its advanced AI technology enables the processor to recognize and analyze content, tailoring the display settings for each individual scene to create a highly realistic and vivid image possible.

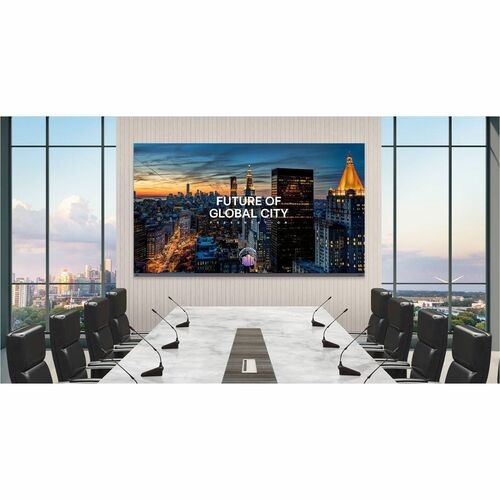

All-in-One LED Screen with Built-in SpeakerThe LAAA series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
- Pixel Pitch : 1.56 mm
- Screen Size: 136" (Full HD)
- Brightness (After Calibration) : 500 nit / 1,000 nit (Peak.)
- Achieving Deep Black
- Intelligent Processor
- Embedded System Controller and Built-in Speaker
Technical Specifications
| Processor & Chipset | |
| Processor Type | ?7 Gen 2 Intelligent Processor |
| Software | |
| Operating System | WebOS |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Network & Communication | |
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Technical Information | |
| Ingress Protection (IP) Rating | IP20 |
| IP50 | |
| Maximum Heat Generation | 749.1 kJ |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Video | |
| Brightness | 1000 cd/m² |
| Color Depth | 20-bit |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 25,000:1 |
| Miscellaneous | |
| Application/Usage | Meeting Room |
| Office | |
| Business | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 418.88 lb (190000 g) |
| Mount Type | Wall Mountable |
| Height | 68.58" (1742 mm) |
| Width | 118.31" (3005 mm) |
| Depth | 2.16" (54.90 mm) |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | LAAA015G2 |
| Manufacturer Website Address | http://www.lg.com |
| Manufacturer | LG Electronics |
| Product Model | LAAA015-G2 |
| Product Name | LAAA015-G2 2023 LG 136'' All-in-Onc Micro LED Display |
| Product Series | LAAA |
| Brand Name | LG |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 3 |
| Serial | Yes |
| Number of DisplayPorts | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Digital Audio Optical Output | Yes |
| Display & Graphics | |
| Pixel Pitch | 61.42 mil (1.56 mm) |
| Display Resolution | 1920 x 1080 |
| Screen Size | 136" (3454.40 mm) |
| Graphics Modes | Full HD |
| Display Screen Type | LCD |
| Backlight Technology | Micro LED |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HDR10 Pro |
| HDR10 | |
| Number of Modules Per Cabinet | 10×15 |
| Maximum LED Life | 11.4 Year |
