About the product

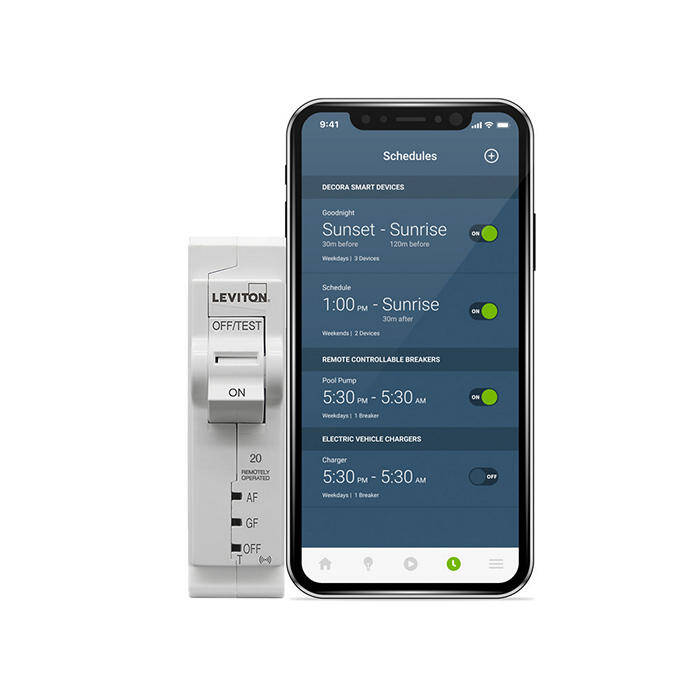

Leviton 2nd Gen Smart Circuit Breakers provide you unmatched control over your Leviton Load Centre by enabling you to remotely turn on and off circuits or to set up a schedule using the My Leviton app. Leviton 2nd Gen Smart Circuit Breakers are the smart answer for your home's electrical system when paired with real-time energy usage statistics, historical graphs, anomaly detection, notifications, and remote firmware upgrades.

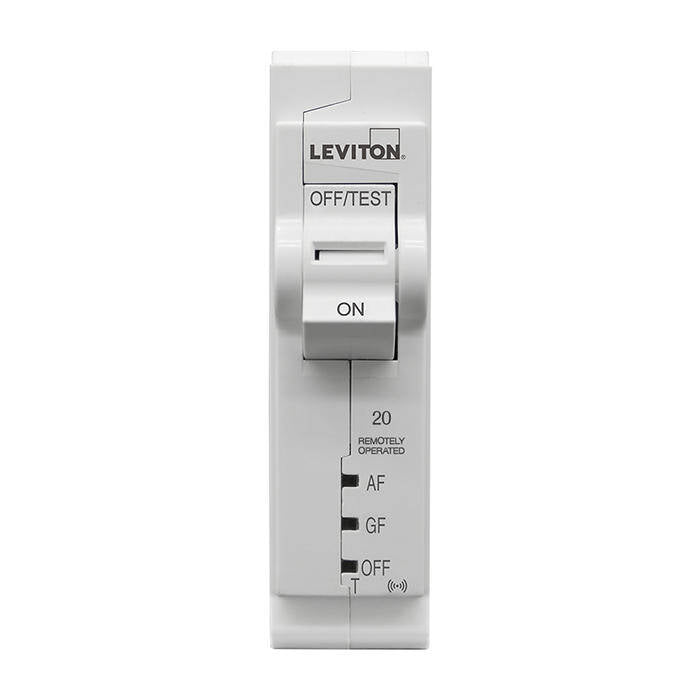

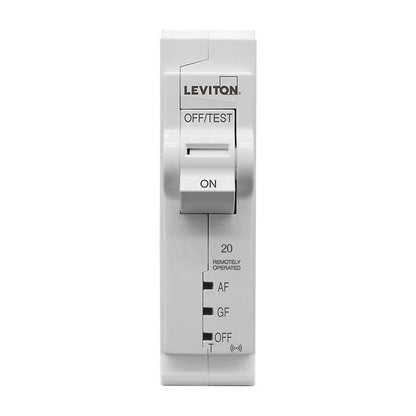

20A 1-Pole 2nd Gen Smart AFCI/GFCI Branch Circuit Breaker with Remote Control Features and Benefits:
- Smart: Easily access your 2nd Gen Smart Circuit Breakers with Remote Control and home’s energy data via smartphone, tablet, or desktop in the My Leviton app
- Simple: Features an all plug-on installation - no wiring to circuit breakers up to 60A for copper wire, and 50A for aluminum wire
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify cause of trip. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped)
- Scheduling: Select breakers can automatically turn ON or OFF based on a predefined schedule
- Control: Remotely turn circuit breakers ON or OFF
- Monitor: View real-time energy consumption in the My Leviton app: total aggregate, individual circuit, or trends by day, week, month, and year
- Flexible: Can be installed in any Leviton Load Center. Upgrading to a Smart Load Center is as easy as prioritizing which loads to enable with smart capabilities, pulling the old breakers out, snapping the new 2nd Gen Smart Circuit Breakers with Remote Control in their place, and enrolling them to the My Leviton app.
20A 1-Pole 2nd Gen Smart AFCI/GFCI Branch Circuit Breaker with Remote Control Specifications:
- Dimensions: Single Pole 3.9” H x 1.0” W x 3.1” D, Double Pole 3.9” H x 2.0” W x 3.1” D
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight: Single Pole 0.42 lbs. Double Pole 0.85 lbs.
- Wiring: All Plug-on up to 60A for Cu wire, 50A for Al wire
- Amperage: Refer to catalogue number tables
- Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton Main Breaker; see Series Ratings Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL1699 (AFCI), where applicable
Technical Specifications
Leviton 2nd Gen Smart Circuit Breakers provide you unmatched control over your Leviton Load Centre by enabling you to remotely turn on and off circuits or to set up a schedule using the My Leviton app. Leviton 2nd Gen Smart Circuit Breakers are the smart answer for your home's electrical system when paired with real-time energy usage statistics, historical graphs, anomaly detection, notifications, and remote firmware upgrades.
20A 1-Pole 2nd Gen Smart AFCI/GFCI Branch Circuit Breaker with Remote Control Features and Benefits:
- Smart: Easily access your 2nd Gen Smart Circuit Breakers with Remote Control and home’s energy data via smartphone, tablet, or desktop in the My Leviton app
- Simple: Features an all plug-on installation - no wiring to circuit breakers up to 60A for copper wire, and 50A for aluminum wire
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify cause of trip. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped)
- Scheduling: Select breakers can automatically turn ON or OFF based on a predefined schedule
- Control: Remotely turn circuit breakers ON or OFF
- Monitor: View real-time energy consumption in the My Leviton app: total aggregate, individual circuit, or trends by day, week, month, and year
- Flexible: Can be installed in any Leviton Load Center. Upgrading to a Smart Load Center is as easy as prioritizing which loads to enable with smart capabilities, pulling the old breakers out, snapping the new 2nd Gen Smart Circuit Breakers with Remote Control in their place, and enrolling them to the My Leviton app.
20A 1-Pole 2nd Gen Smart AFCI/GFCI Branch Circuit Breaker with Remote Control Specifications:
- Dimensions: Single Pole 3.9” H x 1.0” W x 3.1” D, Double Pole 3.9” H x 2.0” W x 3.1” D
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight: Single Pole 0.42 lbs. Double Pole 0.85 lbs.
- Wiring: All Plug-on up to 60A for Cu wire, 50A for Al wire
- Amperage: Refer to catalogue number tables
- Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton Main Breaker; see Series Ratings Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL1699 (AFCI), where applicable
