About the product

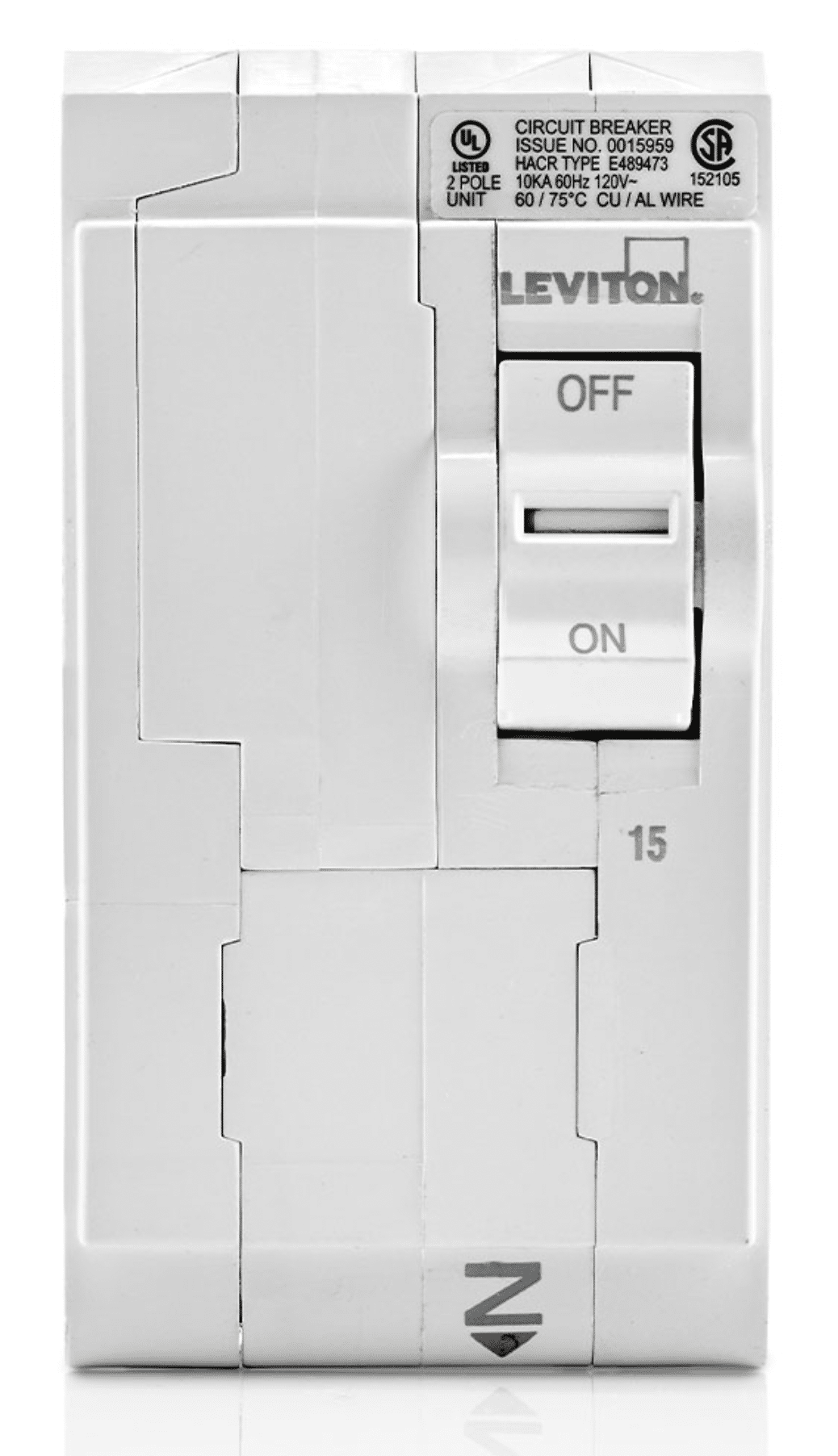

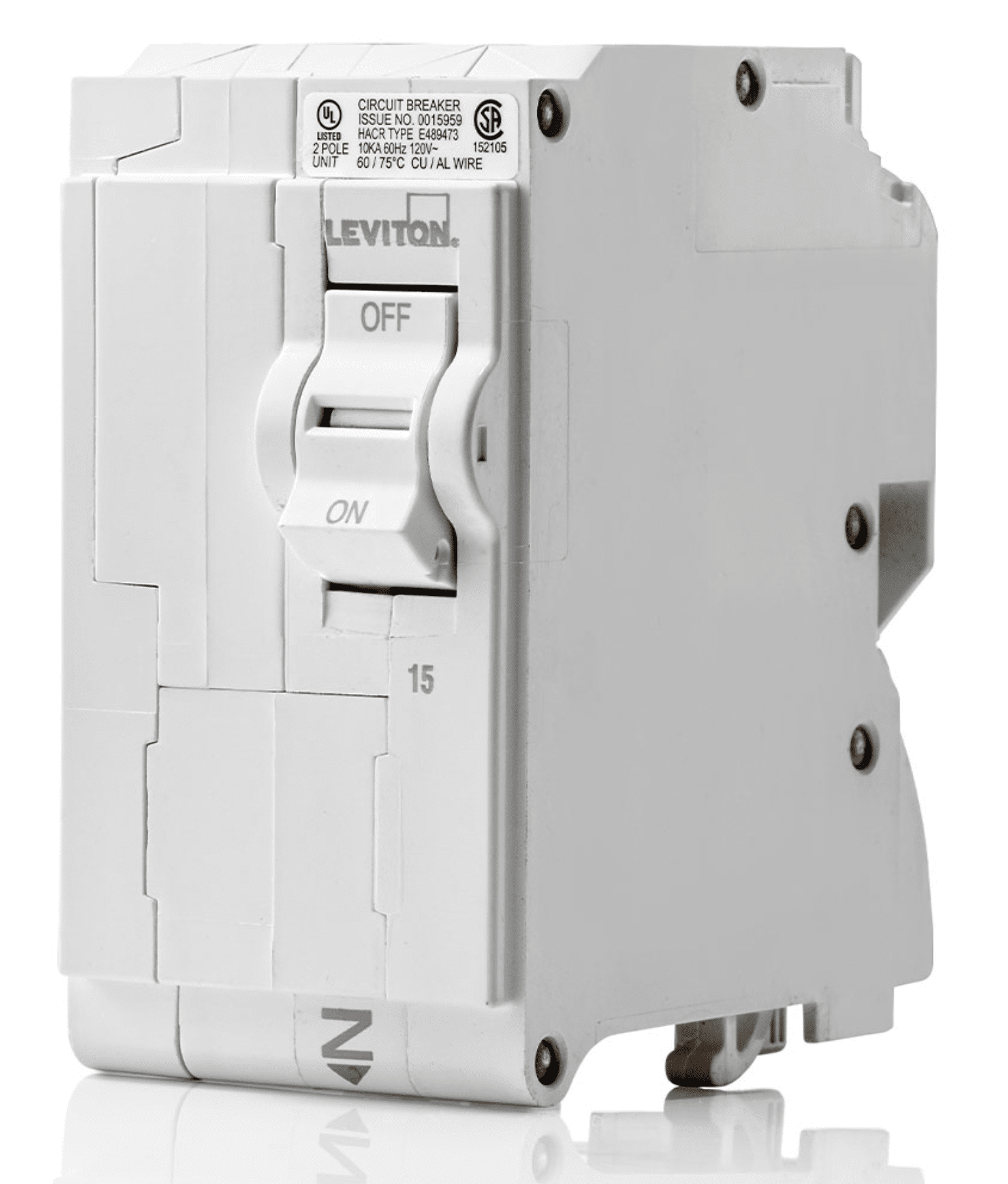

Leviton Branch Circuit Breaker GFCI 2P 15A 120/240V 10KA
Take power to new heights with the award-winning Leviton Load Center – the most intelligent circuit breaker system. It’s the smart solution that offers unparalleled management of your home’s electrical system.
Leviton Branch Circuit Breaker GFCI Features
- Approachable
- Modern design with intuitive functionality and appealing aesthetics
- LEDs communicate trip conditions and type of fault (AF/GF) and remain illuminated even when tripped.
- Smart
- Remote monitoring, tripping, and firmware updates
- Safer
- As the first GFCI circuit breakers on the market that met the newest/May 2021 UL requirements1, Leviton GFCIs set the bar for home safety.
- Leviton AFCI, GFCI, and dual-function circuit breakers feature patented reset lockout technology, and will not reset if Ground or Arc Fault protection is compromised
- Fastest Installation
- Allows for all wiring at rough-in, without any circuit breakers present2
- Only Fully Plug-On Breaker System (up to 60A)
- Circuit Breakers simply snap in for up to 25% faster install
- Energy Use
- View real-time energy consumption: total aggregate, individual circuit, or trends by week, month, and year
- The app can calculate your approximate total energy cost
- Control
- Remotely turn OFF any circuit breaker3 and turn smart plugs, dimmers, and switches ON or OFF4
- View system status in real-time and detect if critical loads need to be addressed
- Alerts & Updates
- Know when and why a circuit breaker trips
- Be informed if a load is ON or not drawing power for an extended time
- Via remote firmware updates, get the latest protection capabilities and newest features
Leviton Branch Circuit Breaker GFCI Applications
Ideal for harsh climates, Hydraulic Magnetic circuit breakers offer more precise trips based on current, even in extreme temperatures: from -40ºC to 85ºC, without re-rating. The most advanced circuit breakers on the market are now the fastest to install. Only Leviton circuit breakers feature an all-plug-on design, so you can wire the entire panel at rough-in, without a single circuit breaker present. Intuitive diagnostics such as LEDs on electronic circuit breakers indicate fault type and color indicators in each rocker handle display operational status at-a-glance.
Leviton Branch Circuit Breaker GFCI Benefits
- Precision: Offers more precise trips based on current, even in extreme temperatures: -40ºC to 85ºC, without re-rating
- Simple: Features an all plug-on installation - no wiring to circuit breakers less than 70A
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify the cause of the trip. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped).
Leviton Branch Circuit Breaker GFCI Specifications
- Physical Specifications:
- Dimensions:
- Single Pole: 3.9” H x 1.0” W x 3.1” D
- Double Pole: 3.9” H x 2.0” W x 3.1” D
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight:
- Single Pole 0.42 lbs.
- Double Pole 0.85 lbs.
- Wiring: All Plug-on up to 60A
- Dimensions:
- Electrical Specifications
- Amperage: Refer to catalog number tables
- Breaker Technology: Hydraulic Magnetic
- Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton Main Breaker; see Series Rating Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL 1699 (AFCI), where applicable
Technical Specifications
Leviton Branch Circuit Breaker GFCI 2P 15A 120/240V 10KA
Take power to new heights with the award-winning Leviton Load Center – the most intelligent circuit breaker system. It’s the smart solution that offers unparalleled management of your home’s electrical system.
Leviton Branch Circuit Breaker GFCI Features
- Approachable
- Modern design with intuitive functionality and appealing aesthetics
- LEDs communicate trip conditions and type of fault (AF/GF) and remain illuminated even when tripped.
- Smart
- Remote monitoring, tripping, and firmware updates
- Safer
- As the first GFCI circuit breakers on the market that met the newest/May 2021 UL requirements1, Leviton GFCIs set the bar for home safety.
- Leviton AFCI, GFCI, and dual-function circuit breakers feature patented reset lockout technology, and will not reset if Ground or Arc Fault protection is compromised
- Fastest Installation
- Allows for all wiring at rough-in, without any circuit breakers present2
- Only Fully Plug-On Breaker System (up to 60A)
- Circuit Breakers simply snap in for up to 25% faster install
- Energy Use
- View real-time energy consumption: total aggregate, individual circuit, or trends by week, month, and year
- The app can calculate your approximate total energy cost
- Control
- Remotely turn OFF any circuit breaker3 and turn smart plugs, dimmers, and switches ON or OFF4
- View system status in real-time and detect if critical loads need to be addressed
- Alerts & Updates
- Know when and why a circuit breaker trips
- Be informed if a load is ON or not drawing power for an extended time
- Via remote firmware updates, get the latest protection capabilities and newest features
Leviton Branch Circuit Breaker GFCI Applications
Ideal for harsh climates, Hydraulic Magnetic circuit breakers offer more precise trips based on current, even in extreme temperatures: from -40ºC to 85ºC, without re-rating. The most advanced circuit breakers on the market are now the fastest to install. Only Leviton circuit breakers feature an all-plug-on design, so you can wire the entire panel at rough-in, without a single circuit breaker present. Intuitive diagnostics such as LEDs on electronic circuit breakers indicate fault type and color indicators in each rocker handle display operational status at-a-glance.
Leviton Branch Circuit Breaker GFCI Benefits
- Precision: Offers more precise trips based on current, even in extreme temperatures: -40ºC to 85ºC, without re-rating
- Simple: Features an all plug-on installation - no wiring to circuit breakers less than 70A
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify the cause of the trip. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped).
Leviton Branch Circuit Breaker GFCI Specifications
- Physical Specifications:
- Dimensions:
- Single Pole: 3.9” H x 1.0” W x 3.1” D
- Double Pole: 3.9” H x 2.0” W x 3.1” D
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight:
- Single Pole 0.42 lbs.
- Double Pole 0.85 lbs.
- Wiring: All Plug-on up to 60A
- Dimensions:
- Electrical Specifications
- Amperage: Refer to catalog number tables
- Breaker Technology: Hydraulic Magnetic
- Short Circuit Current Rating: 10 KA, Series Rated 22KA with Leviton Main Breaker; see Series Rating Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL 1699 (AFCI), where applicable
