About the product

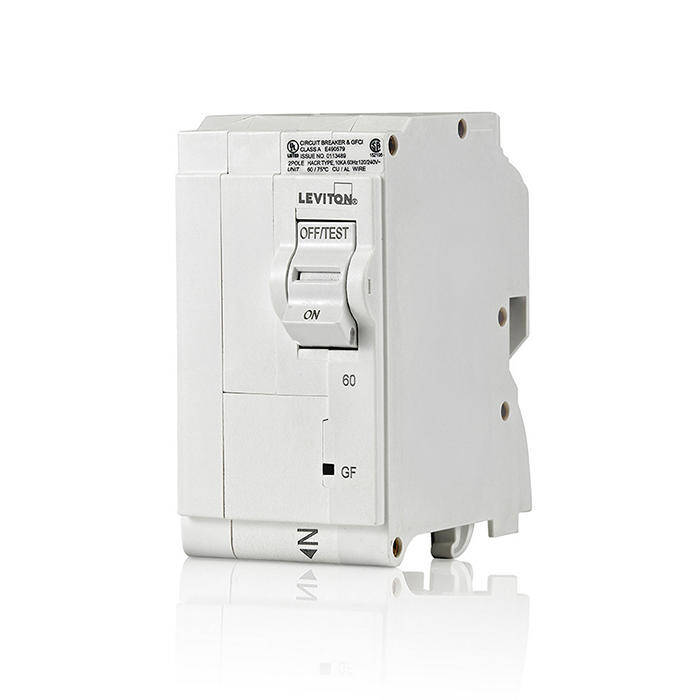

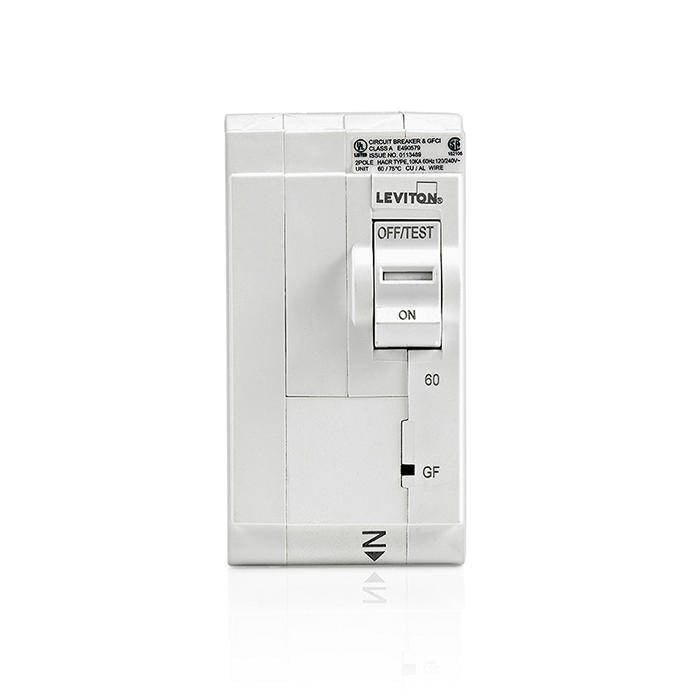

60A 2-Pole GFCI Hydraulic Magnetic Branch Circuit Breaker Features and Benefits:
- Simple: Features an all plug-on installation - no wiring to circuit breakers up to 60A for copper wire and 50A for aluminium wire
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify cause of trip: Arc Fault (series or parallel), or Ground Fault. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped)
- Approachable: Contemporary aesthetic and rocker style handle are more user friendly
60A 2-Pole GFCI Hydraulic Magnetic Branch Circuit Breaker Specifications:
- Dimensions: Single Pole 3.9” H x 1.0” W x 3.1” D
- Double Pole 3.9” H x 2.0” W x 3.1” D
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight: Single Pole 0.42 lbs.
- Double Pole 0.85 lbs.
- Wiring: All Plug-on
- Amperage: Refer to catalogue number tables
- Breaker Technology: Thermal Magnetic / Hydraulic Magnetic*
- Short Circuit Current Rating: 10 K, Series Rated 22KA with Leviton Main Breaker; see Series Ratings Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Thermal Magnetic Operating Temperature: -40C to + 70C
- Hydraulic Magnetic Operating Temperature: -40C to + 85C
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL 1699 (AFCI), where applicable
Technical Specifications
60A 2-Pole GFCI Hydraulic Magnetic Branch Circuit Breaker Features and Benefits:
- Simple: Features an all plug-on installation - no wiring to circuit breakers up to 60A for copper wire and 50A for aluminium wire
- Intuitive: Line-side powered LEDs stay lit, even after a circuit breaker has tripped, and identify cause of trip: Arc Fault (series or parallel), or Ground Fault. Color indicators in each rocker handle designate operational status at-a-glance (ON/OFF/Tripped)
- Approachable: Contemporary aesthetic and rocker style handle are more user friendly
60A 2-Pole GFCI Hydraulic Magnetic Branch Circuit Breaker Specifications:
- Dimensions: Single Pole 3.9” H x 1.0” W x 3.1” D
- Double Pole 3.9” H x 2.0” W x 3.1” D
- Warranty: 10-Year Limited, 2-Years for electronic components
- Weight: Single Pole 0.42 lbs.
- Double Pole 0.85 lbs.
- Wiring: All Plug-on
- Amperage: Refer to catalogue number tables
- Breaker Technology: Thermal Magnetic / Hydraulic Magnetic*
- Short Circuit Current Rating: 10 K, Series Rated 22KA with Leviton Main Breaker; see Series Ratings Tables for additional Ratings
- Type: Available in Standard, AFCI, GFCI, AFCI/GFCI, GFPE
- Thermal Magnetic Operating Temperature: -40C to + 70C
- Hydraulic Magnetic Operating Temperature: -40C to + 85C
- Standards & Certifications
- CSA-C22.2 No. 5-02
- EMC Compatible
- FCC
- RoHS
- UL 489, HACR rated
- UL 943 (GFCI), where applicable
- UL 1699 (AFCI), where applicable
