About the product

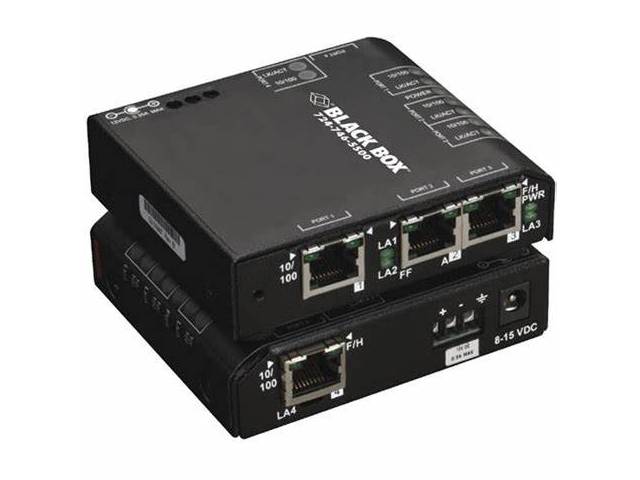

Convenient Switches are versatile autosensing four-port switches that enable you to quickly add ports anywhere on your Ethernet network. They're designed as part of our Media Converter Switch family and are available in the same robust chassis choices to fit environments ranging from comfortable offices to demanding outdoor installations. You can also choose from a wide range of power supplies and mounting options.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LBH101A-H-12 |
| Form Factor: | Wall-mount |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 4 |
| Data Link Protocol: | Fast Ethernet |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power / Voltage Required: | 12V DC |
| For Use With: | Black |
| Features: | Four 10-/100-Mbps RJ45 switch ports.Extended temperature range of -13 to +140 F (-25 to +60 C).Suitable for dusty or dirty environments with a temperature range between -13 and +140 F (-25 to +60 C).12VDC power input.Includes panel mount kit. |
| Interfaces / Ports | |
| Interfaces: | (4) 10/100-Mbps Copper RJ45 |
| 10/100BASE-T Ports: | 4 |
| Network | |
| 10/100BASE-T Ports: | 4 |
| Interfaces: | (4) 10/100-Mbps Copper RJ45 |
| Dimensions&Miscellaneous | |
| Width: | 3 Inch |
| Depth: | 3.5 Inch |
| Height: | 1 Inch |
| Weight: | 0.3 lbs. |
| Service&Support | |
| Service & Support Type: | 3 Years Warranty |
| Special Feature | |
| Min Operating Temperature: | 0 C |
| Max Operating Temperature: | 40 C |
| Min Storage Temperature: | -40 C |
| Max Storage Temperature: | 85 C |
| RoHS: | Y |
| COO: | UNITED STATES |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
