About the product

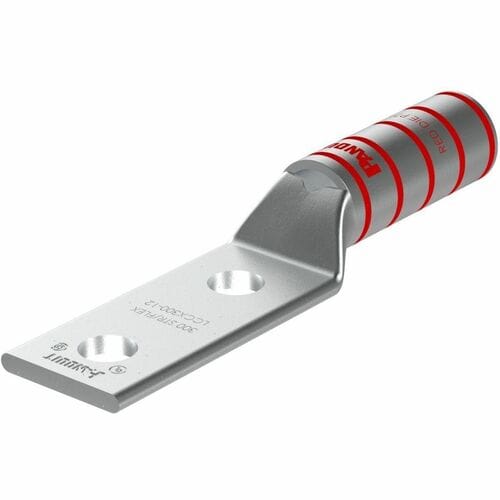

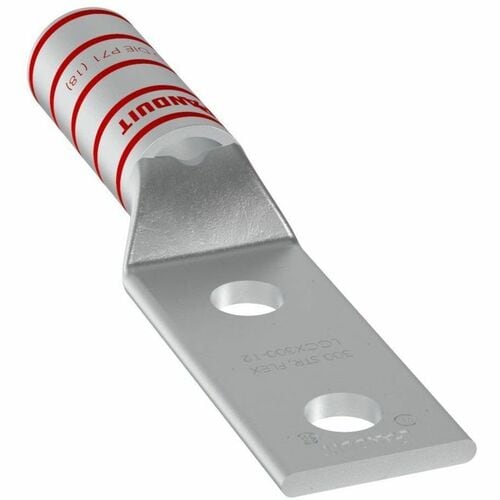

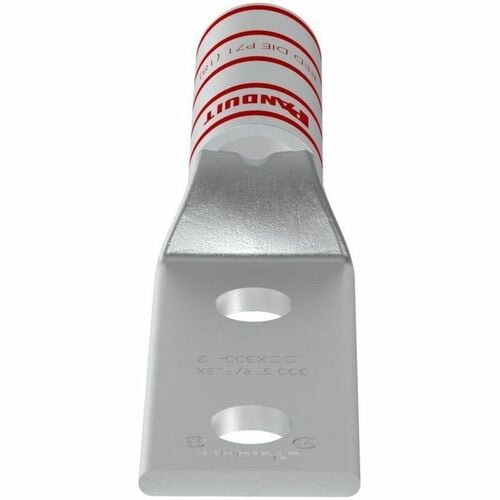

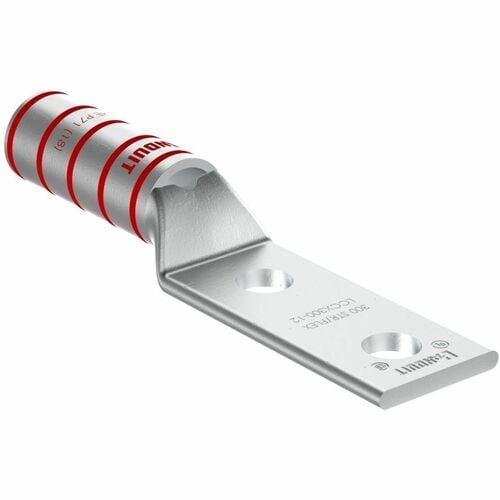

The LCCX300-12-6 Tin Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Technical Specifications
| Physical Characteristics | |
| Length | 5.85" (148.60 mm) |
| Diameter | 0.95" (24.13 mm) |
| Product Color | Red |
| Color Family | Red |
| Product Material | Tin Plated Copper |
| Copper | |
| General Information | |
| Product Type | Grounding Lug |
| Manufacturer Part Number | LCCX300126 |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Name | Pan-Lug LCCX300-12-6 Comp. Lug, Flex, 300, Tin Plt Copper, Strt, Two 1/2" Stud |
| Product Line | Pan-Lug |
| Brand Name | Panduit |
