About the product

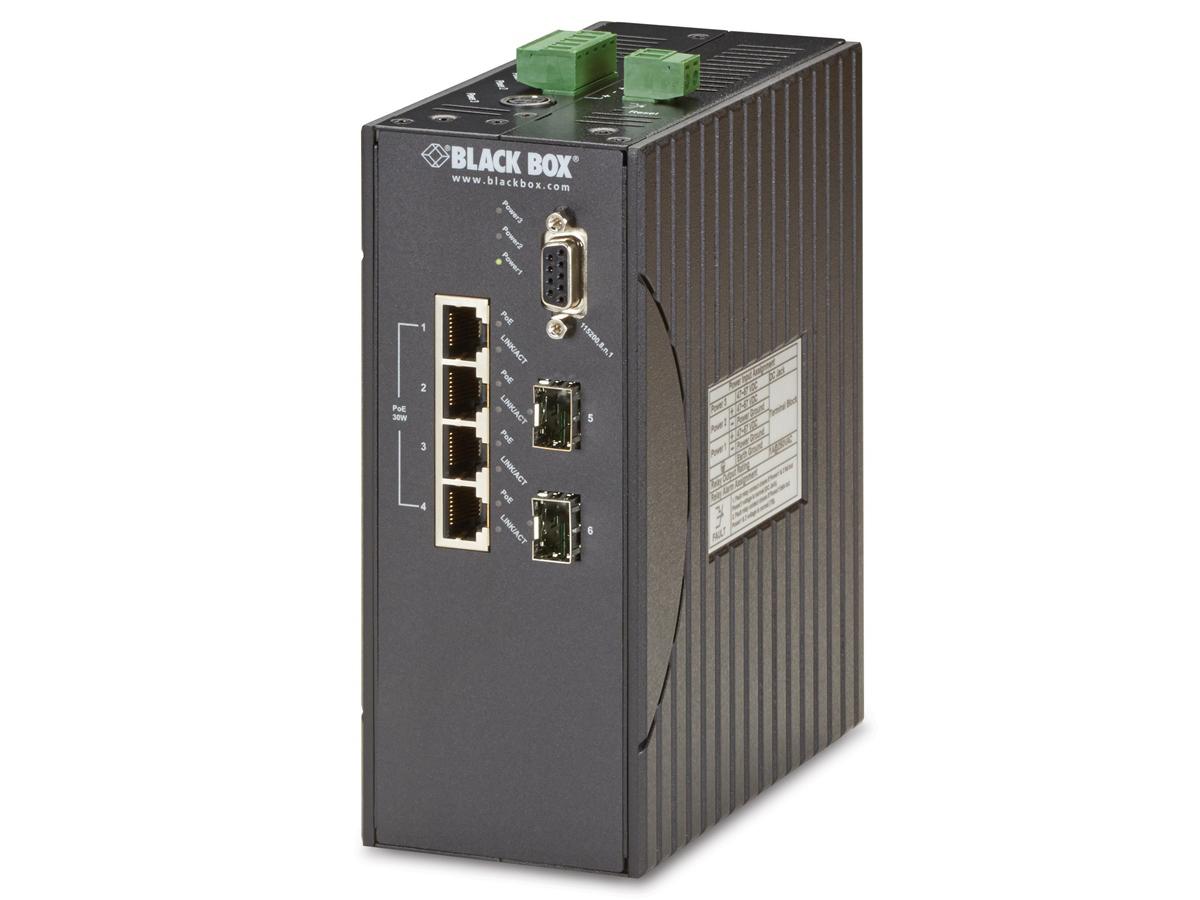

Designed for rugged environments, this Hardened Managed Ethernet Switch gives you the high reliability you need. Use this managed switch to configure, control, and monitor remote equipment in the worst environments. Because it supports PoE+, you can use it to power remote PoE devices through your Ethernet lines.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LEH1104 Series |
| Form Factor: | SFP |
| Data Transfer Rate: | 100 Mbps |
| Networking / Ports Qty: | 6 |
| Data Link Protocol: | Fast Ethernet |
| Status Indicators: | LED |
| Networking Compliant Standards: | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, 100BASE-FX, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1W, IEEE 802.1x; IEEE 802.3at |
| Power / Device Type: | Power Supply |
| Features: | Offers less than a 30-msec recovery time, link failover, and redundant power inputs.Meets numerous harsh/industrial standards, including NEMA TS1/2 for traffic control, EN6100-6-2 and -6-4 for industrial environments, including railway applications.Features bandwidth rate control, traffic prioritization, and quality of service.Manage through a Web interface, SNMP, or command-line interface (CLI).Supports IEEE 802.1x security |
| Interfaces / Ports | |
| Interfaces: | (4) RJ-45 10/100 PoE+ (802.3at), (2) 100BFX SFP; 10/100BASE-TX: (4) RJ-45 100BASE-FX: (2) SFP; (1) DB9 RS-232 |
| SFP Ports: | 2 |
| Network | |
| SFP Ports: | 2 |
| Interfaces: | (4) RJ-45 10/100 PoE+ (802.3at), (2) 100BFX SFP; 10/100BASE-TX: (4) RJ-45 100BASE-FX: (2) SFP; (1) DB9 RS-232 |
| Dimensions&Miscellaneous | |
| Width: | 2.85 Inch |
| Depth: | 6.8 Inch |
| Height: | 5.6 Inch |
| Weight: | 3.74 lbs. |
| Service&Support | |
| Service & Support Type: | 3 Year Warranty |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 85 Celsius |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
