About the product

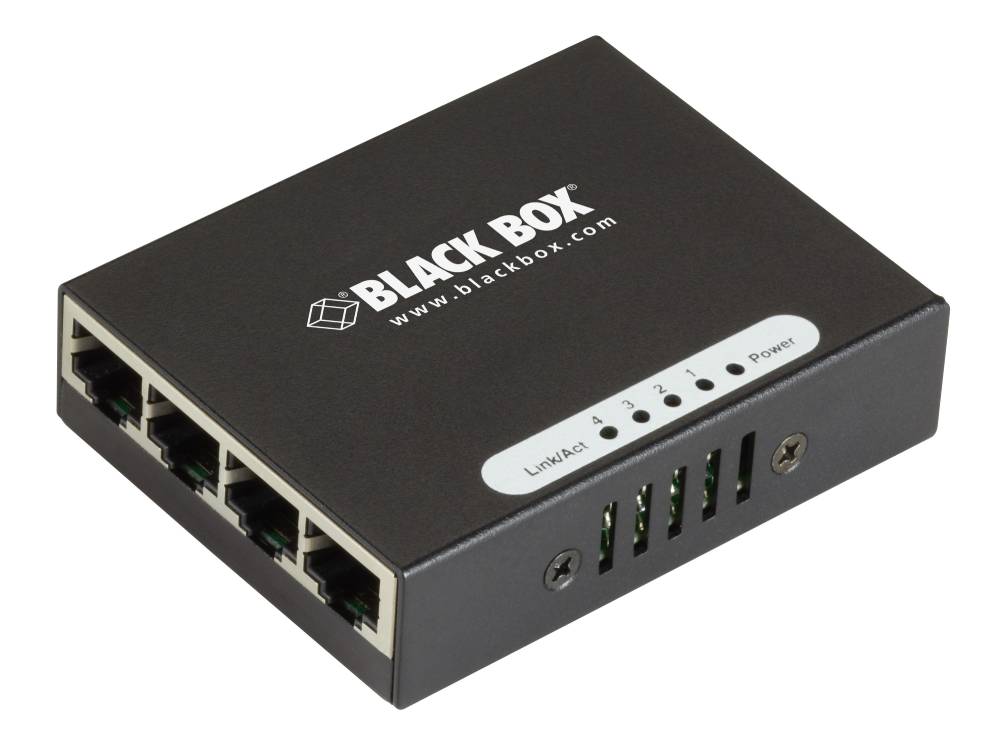

The Black Box LGB304A is a compact gigabit Ethernet switch with four 10/100/1000 Mbps RJ45 ports. Typical applications include LAN connectivity for small workgroups. The switch is ideal for mobile teams such as auditors that require a small, portable switch to expand port counts. The switch can be powered from a USB port or from the included power adapter. The switch delivers line rate, non blocking throughput. Ports are autonegotiating half/full duplex and include LED indicators to view port status. This unmanaged switch is plug and play and does not require any configuration.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LGB304A |
| Form Factor: | Wall-mount |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 4 |
| Data Link Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3x Flow Control |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power Consumption Operational: | 3.3 Watt |
| Power / Voltage Required: | 115-VAC, 60-Hz |
| For Use With: | Black |
| Features: | Build a small network or add ports to an existing network.Can also be powered through a PC's USB port so there's no need to find a spare outletFour autosensing 10-/100-/1000-Mbps portsAutonegotiating half-/full-duplexAuto-MDI/MDI-X function on all ports, so no need for cross-pinned cablesNon-blocking, store-and-forward switching methodEasy-to-see LED indicators.Easy plug-and-play operation. |
| Interfaces / Ports | |
| Interfaces: | (4) 10/100/1000-Mbps Copper RJ45 |
| 10/100/1000BASE-T Ports: | 4 |
| Network | |
| 10/100/1000BASE-T Ports: | 4 |
| Interfaces: | (4) 10/100/1000-Mbps Copper RJ45 |
| Dimensions&Miscellaneous | |
| Width: | 2.4 Inch |
| Depth: | 3.1 Inch |
| Height: | 0.8 Inch |
| Weight: | 0.4 Kg |
| Service&Support | |
| Service & Support Type: | 1 Year Warranty |
| Special Feature | |
| RoHS: | Y |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
