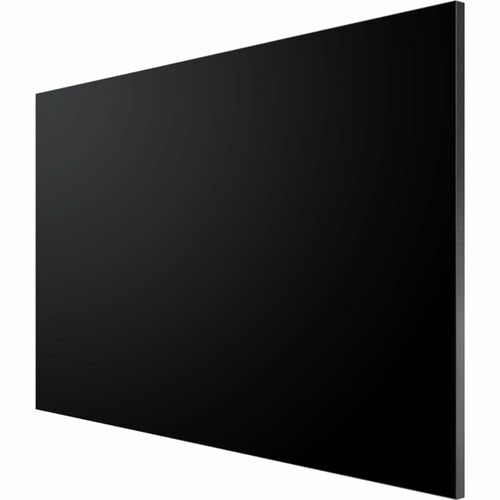

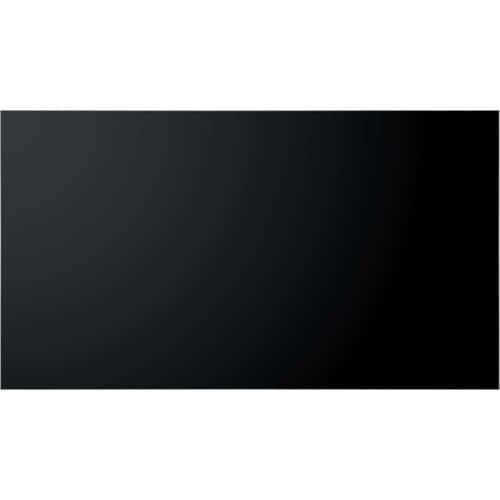

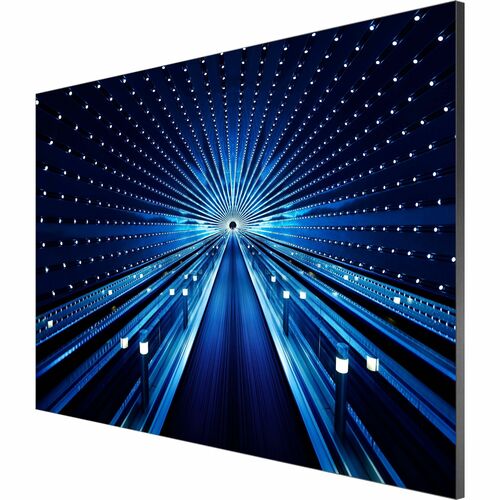

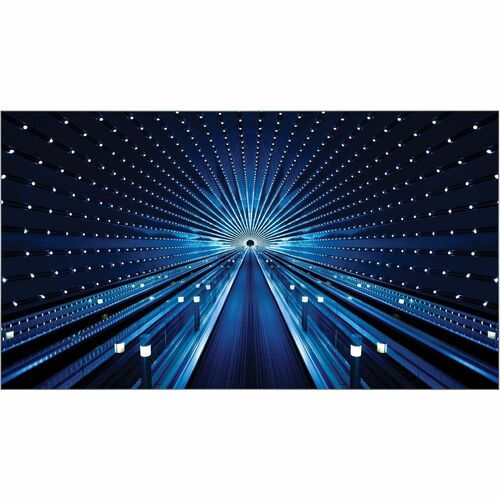

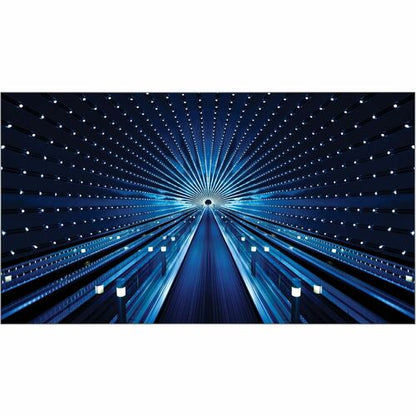

Samsung The Wall All-in-One 146\" (2K)
Samsung The Wall All-in-One 146\" (2K)
VPNLH016IABMHS/GO SKU:728321DIS UPC:887276656823
- With its 146" screen size and 1600 cd/m² brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
- Experience luminescent visual images with LCD display
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details









Recently Viewed
Samsung The Wall All-in-One 146\" (2K)
Product information summary

About the product
Make a bold statement, faster
Power on an awe-inspiring viewing experience with The Wall All-in-One. Engineered to be quickly enjoyed out of the box, Samsung's most advanced and stunning display makes a bold statement in any environment. With the Wall All-in-One you simply choose your size and resolution, and you're assured of a complete, easy-to-install, brilliant solution. Choose from three pre-configured sizes: 110" 2K, 146" 2K or 146" 4K.
An abyss of depth | Black Seal Technology
A deep black background blankets the screen with accurate uniformity, creating a seamless canvas for purer black levels. The enhanced depth delivers unparalleled contrast and immaculate detail.
Superior color purity | Ultra Chroma Technology
Colors leap to life with spectacular vibrancy to recreate scenes as if you were there in real life. Narrower wavelengths produce RGB colors two times purer and more accurate than conventional LEDs.
The installation process, reinvented pre-assembled installation

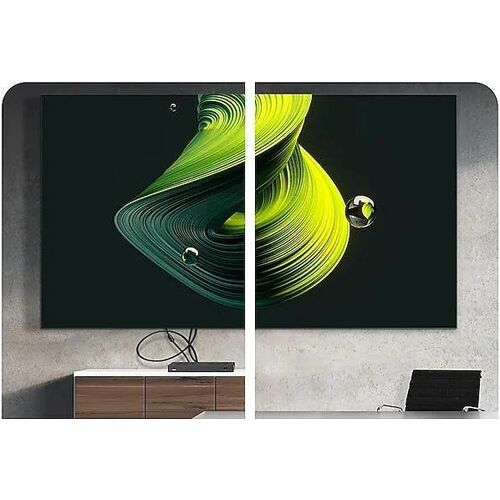

The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size. Installation now takes only two hours for two people to complete the screen.
Auto configuration setup | Built-in Control Box
Time-consuming configuration between control box and cabinet is no longer needed. The Wall All-in-One integrates the control box so it's built into the display, eliminating a cumbersome configuration process to have the display up and running faster.
Critical decisions without complexitySimple Choice
The Wall All-in-One removes complex elements traditionally associated with LED displays, creating a streamlined purchase path. Now, make purchases based on just two factors-resolution and size-without complications such as pixel pitch or configuration.
No extra peripherals needed All-inclusive Components
The Wall All-in-One includes everything you need to begin operations-from the control box and wall brackets to speakers and deco bezels. No additional purchases or components are required, allowing you to focus on getting your display up and running fast.
Colors mapped to perfection | 20bit Processing
The Wall All-in-One offers 20bit processing to present exact color mapping with faultless accuracy. Deeper bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.
Continuous natural shading | Linear Grayscale
A precise linear grayscale showcases intricacies in every scene, delivering textures, volume and continuous shadow details. The elevated continuity pulls you further into your content for unbroken immersion.
Instant AI optimization | Neural Quantum Processor 4K
Every second of content is instantly analyzed and optimized for perfect picture quality. The powerful AI processor delivers superior visuals in any size up to 4K resolution, enhancing contrast and removing noise.
Dazzling dynamic range | MICRO HDR
Reimagine the limits of conventional screens with advanced picture refinement-HDR10/10+ and LED HDR. Illuminate ideal peak brightness and contrast in every scene for precise, true-to-life imagery.
Smooth, seamless motionMICRO Motion
Every motion becomes sharper, with greater clarity. The Wall All-in-One automatically converts standard 60Hz signals to 120Hz, removing motion judder in fast-paced action for smoother streams and a seamless viewing experience, every time.
- With its 146" screen size and 1600 cd/m² brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
- Experience luminescent visual images with LCD display
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
- Engages your customers and makes their viewing experience breathtaking with its 1080p content
Technical Specifications
Processor & Chipset | |
Processor Type | Neural Quantum Processor 4K |
Software | |
Operating System | Tizen 6.5 |
Miscellaneous | |
Application/Usage | Indoor |
Package Contents |
|
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Network & Communication | |
Bluetooth | No |
Ethernet | Yes |
Wireless LAN | No |
Technical Information | |
Video Wall Compatible | Yes |
Ingress Protection (IP) Rating | IP20 |
Maximum Heat Generation | 4463.9 kJ |
Video | |
Brightness | 1600 cd/m² |
Color Depth | 20-bit |
Scan Format | 1080p |
Dynamic Contrast Ratio | 24,000:1 |

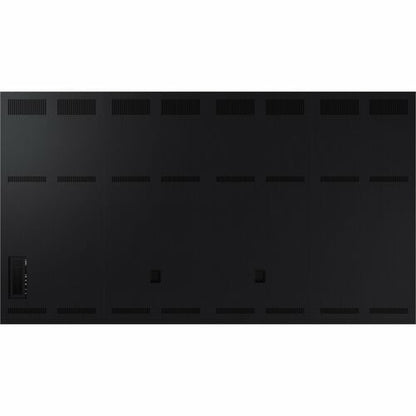

Physical Characteristics | |
Weight (Approximate) | 370.38 lb (168000 g) |
Mount Type | Wall Mountable |
Height | 53.70" (1363.98 mm) |
Width | 95.40" (2423.16 mm) |
Depth | 2" (50.80 mm) |
Environmental Conditions | |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Minimum Storage Temperature | -4°F (-20°C) |
Maximum Storage Temperature | 113°F (45°C) |
Minimum Operating Humidity | 10% |
Maximum Operating Humidity | 80% |
Minimum Storage Humidity | 5% |
Maximum Storage Humidity | 95% |
General Information | |
Product Type | Digital Signage Display |
Manufacturer Part Number | LH016IABMHSGO |
Manufacturer Website Address | http://www.samsung.com |
Manufacturer | Samsung |
Product Model | IA016B |
Product Name | The Wall All-in-One 146" (2K) |
Product Line | Premium |
Product Series | IA |
Brand Name | Samsung |

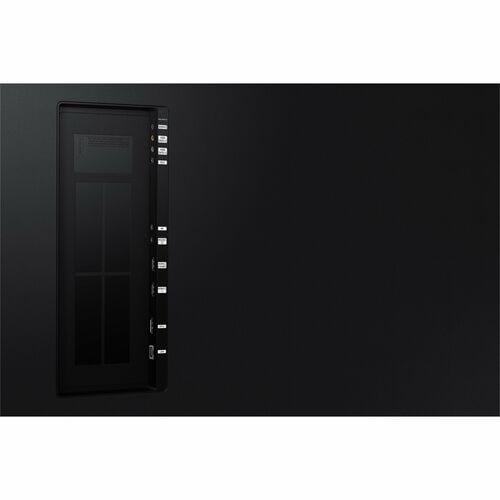

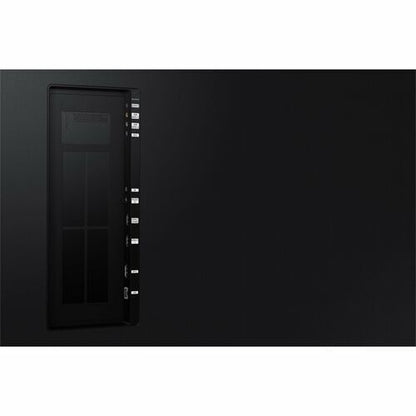

Interfaces/Ports | |
USB | Yes |
HDMI | Yes |
DisplayPort | Yes |
Number of HDMI Inputs | 3 |
Number of USB 2.0 Ports | 2 |
Serial | Yes |
Number of DisplayPorts | 1 |
RS-232C Input | Yes |
Number of HDMI 2.0 Ports | 3 |
Number of DisplayPort 1.2 Ports | 1 |
Display & Graphics | |
Pixel Pitch | 66.14 mil (1.68 mm) |
Display Resolution | 1920 x 1080 |
Screen Size | 146" |
Number of Screens | 192 |
Graphics Modes | Full HD |
Display Screen Type | LCD |
Backlight Technology | Direct View LED |
High Dynamic Range (HDR) | Yes |
High Dynamic Range (HDR) Type | HDR10+ |
Number of Modules Per Cabinet | 16x12 |
Maximum LED Life | 17.1 Year |
