About the product

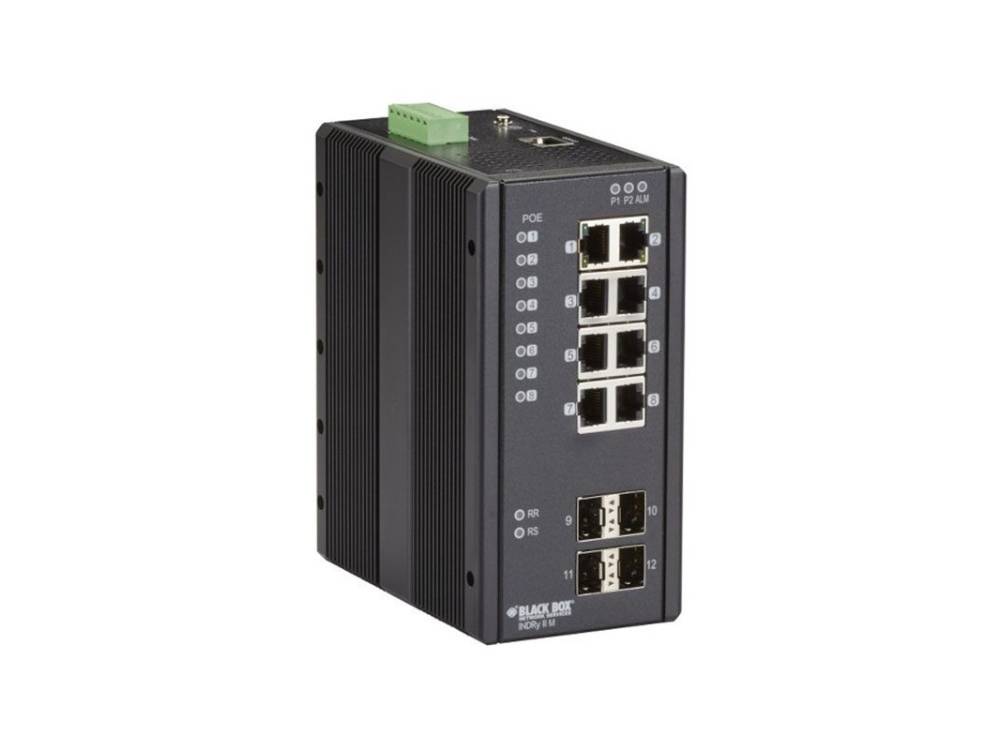

This switch has eight 10/10/1000-Mbps PoE/PoE+ copper ports and four SFP ports for uplinks. This way you can power distant access points, security cameras, and other industrial equipment over the copper Ethernet lines at the far edges of your network where it's impractical to run electrical wires. The SFP fiber uplinks give you almost unlimited fiber distance options, depending on the SFP.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LIE1014A |
| Form Factor: | Rackmount |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 12 |
| Data Link Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802.1ab |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power Consumption Operational: | 15 Watt |
| Power / Voltage Required: | 46-57 VDC |
| For Use With: | Black |
| Features: | Provides eight 10/100/1000-Mbps PoE+ RJ-45 ports and four multispeed SFP slotsPoE 802.3af and PoE+ 802.3at compatibleOffers link loss recovery of <20-msec. |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 4 |
| Interfaces: | (8)10/100/1000-Mbps Copper RJ45,(4)100/1000-Mbps SFP |
| Interfaces / Ports | |
| Interfaces: | (8)10/100/1000-Mbps Copper RJ45,(4)100/1000-Mbps SFP |
| 10/100/1000BASE-T Ports: | 8 |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 5 Inch |
| Depth: | 6 Inch |
| Height: | 3 Inch |
| Weight: | 0.7 lbs. |
| Service&Support | |
| Service & Support Type: | 5 Year Warranty |
| Special Feature | |
| Min Operating Temperature: | -40 C |
| Max Operating Temperature: | 75 C |
| Min Storage Temperature: | -40 C |
| Max Storage Temperature: | 85 C |
| RoHS: | Y |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
