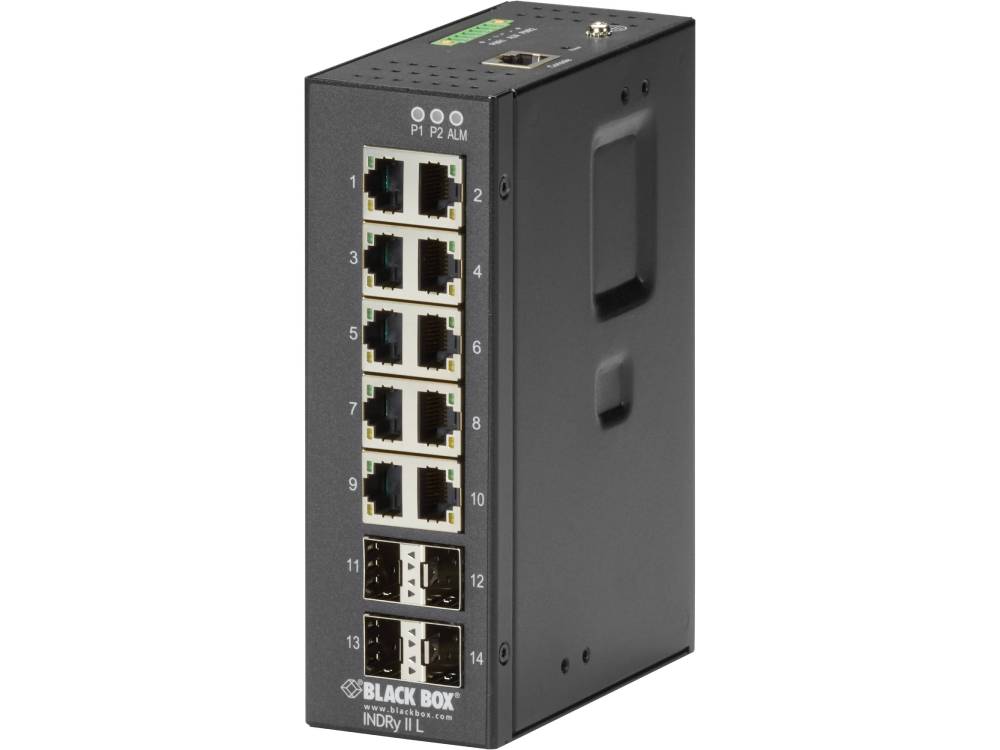

About the product
This switch has ten 10/10/1000-Mbps RJ-45 copper ports and four multi-speed SFP ports for uplinks. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables."
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LIG1014A |
| Form Factor: | Rackmount |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 14 |
| Data Link Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | IEEE 802.1ab |
| Power / Device Type: | Power Supply |
| Power / Installed Qty: | 1 |
| Power Consumption Operational: | 17 Watt |
| Power / Voltage Required: | 12 - 58 VDC |
| For Use With: | Black |
| Features: | Provides ten 10/100/1000-Mbps RJ-45 ports and four multispeed SFP slots10-/100-/1000-Mbps ports are autosensingSwitch supports LACP, Spanning Tree, and ring fail-overSFP ports enable Gigabit fiber uplinks over long distances |
| Interfaces / Ports | |
| Interfaces: | (10) RJ45; (4) SFP |
| 10/100/1000BASE-T Ports: | 10 |
| SFP Ports: | 4 |
| Network | |
| 10/100/1000BASE-T Ports: | 10 |
| SFP Ports: | 4 |
| Interfaces: | (10) RJ45; (4) SFP |
| Dimensions&Miscellaneous | |
| Width: | 4.3 Inch |
| Depth: | 6 Inch |
| Height: | 2.4 Inch |
| Weight: | 2.33 lbs. |
| Service&Support | |
| Service & Support Type: | 1 Year Warranty |
| Special Feature | |
| Min Operating Temperature: | -40 C |
| Max Operating Temperature: | 75 C |
| Min Storage Temperature: | -40 C |
| Max Storage Temperature: | 85 C |
| RoHS: | Y |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
