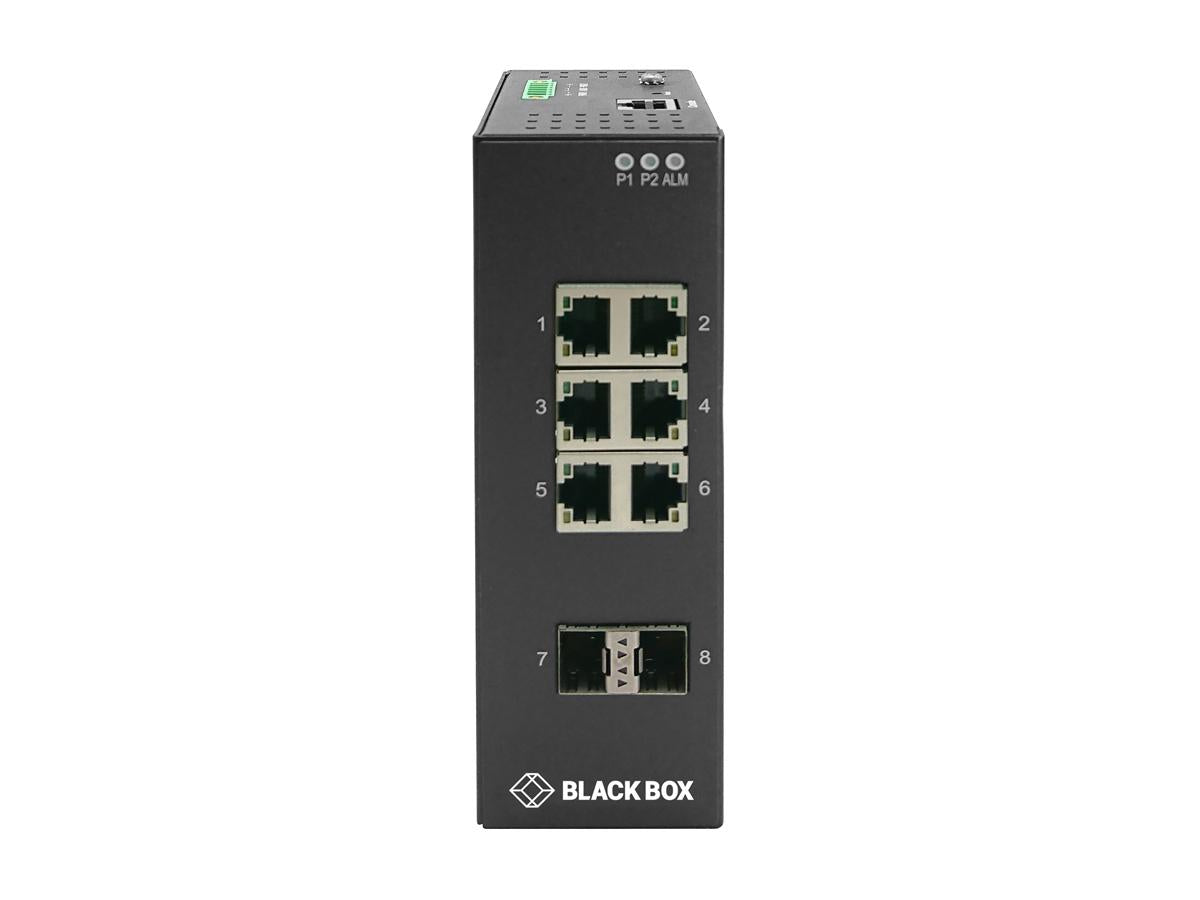

About the product
This switch has six 10/10/1000-Mbps RJ-45 copper ports that are autosensing. It offers full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LIG1082A |
| Connectivity Technology: | Wired |
| Status Indicators: | LED Indicators |
| Networking Compliant Standards: | IEEE 802.3x, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 14 Watt |
| Power / Voltage Required: | 12-58 VDC |
| Features: | Dual DC power inputs for redundancy;IP30-rated for shock and vibration protection;Manage through a Web interface, SNMP or command-line interface (CLI);Economical switch delivers features normally found in more expensive switches. |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 8000 MAC Addresses |
| Jumbo Frame Support: | 9000 Bytes (Jumbo frame capable) |
| Remote Management Protocol: | HTTPS; DHCP; TFTP; SSH; SNMP |
| Authentication Method: | Radius |
| 10/100/1000BASE-T Ports: | 6 |
| SFP Ports: | 2 |
| Interfaces: | (6) RJ-45, 10/100/1000-Mbps, auto-negotiation, MDI-MDI-X auto-crossover; (2) 100/1000-Mbps SFP slots (LC); (1) RJ-45 RS-232 console port |
| Interfaces / Ports | |
| Interfaces: | (6) RJ-45, 10/100/1000-Mbps, auto-negotiation, MDI-MDI-X auto-crossover; (2) 100/1000-Mbps SFP slots (LC); (1) RJ-45 RS-232 console port |
| 10/100/1000BASE-T Ports: | 6 |
| SFP Ports: | 2 |
| Dimensions&Miscellaneous | |
| Width: | 4.3 Inch |
| Depth: | 2.3 Inch |
| Height: | 6 Inch |
| Weight: | 2.33 lbs. |
| Service&Support | |
| Service & Support Type: | 1 Year Double Diamond Warranty (Standard) |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 85 Celsius |
| RoHS: | Y |
| COO: | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
