About the product

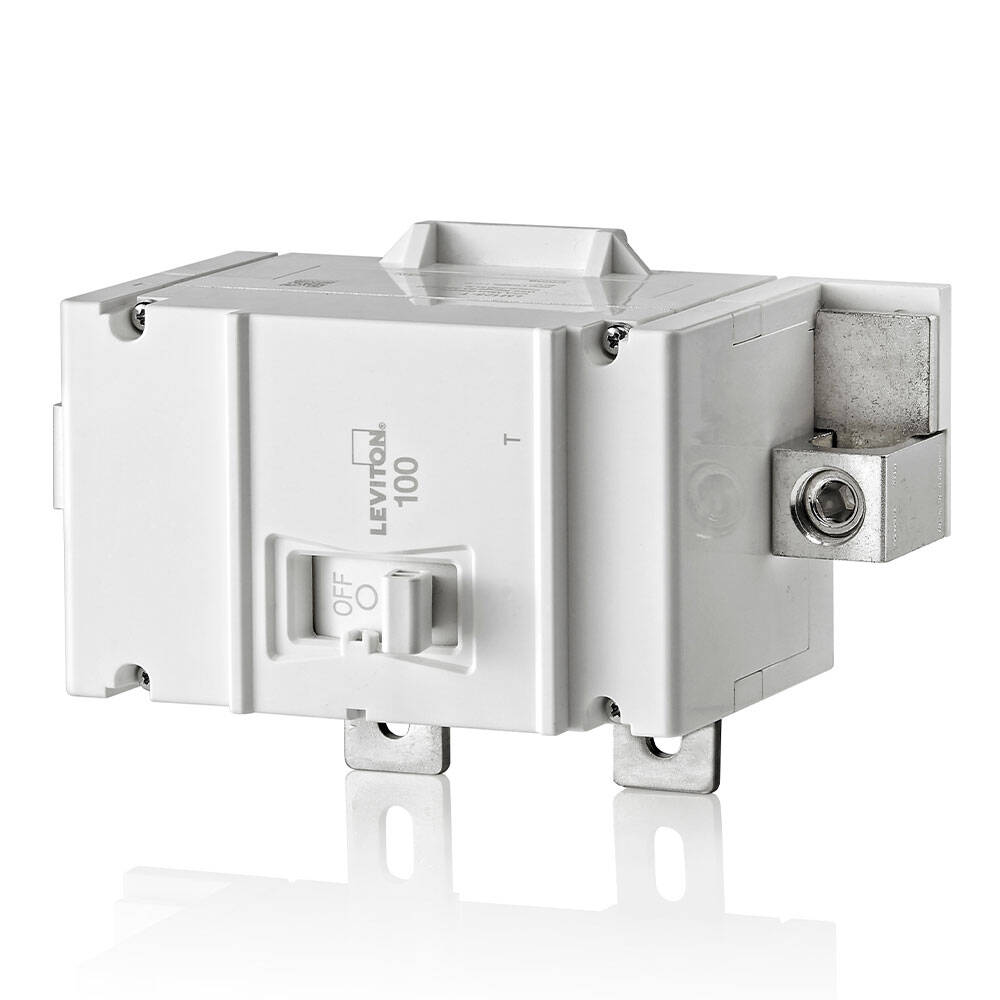

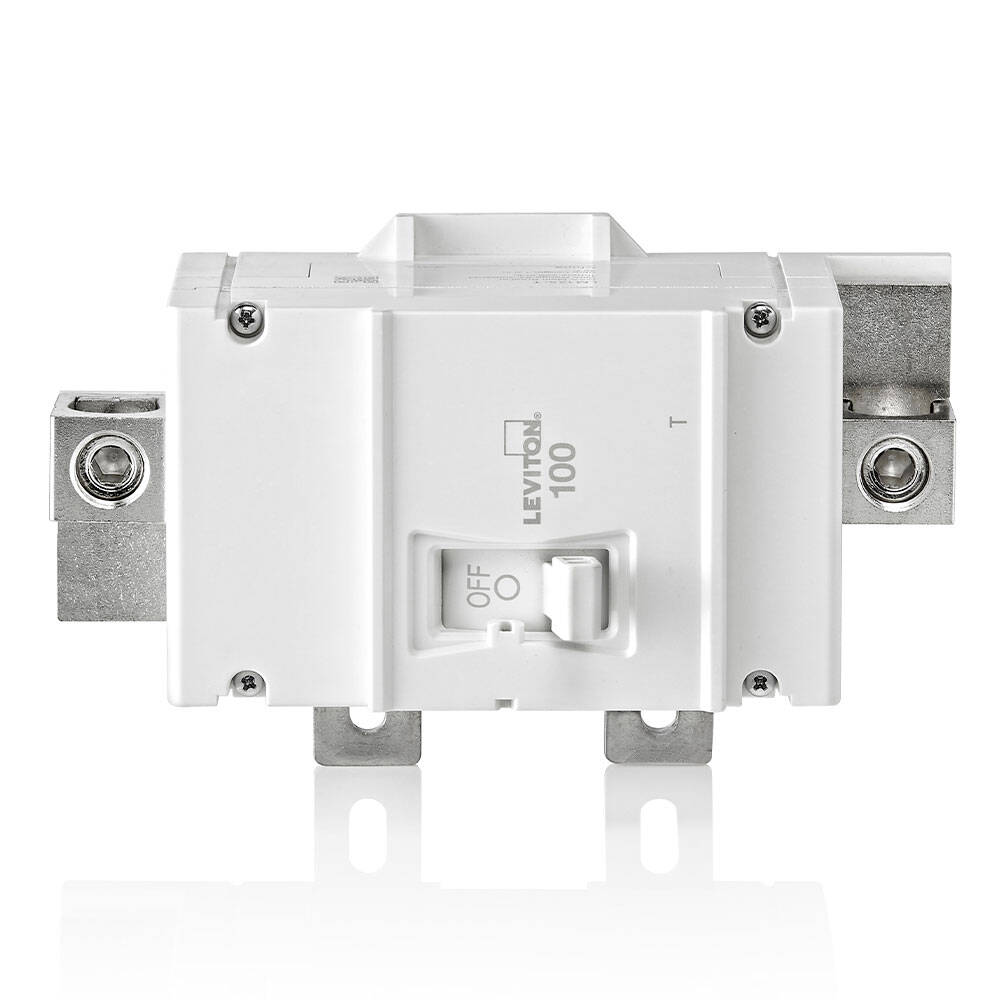

Leviton Main Breaker (FG) Basic 2SP 100A Overview
100A 2-Pole Main Circuit Breaker with Thermal Magnetic Trip Technology. 120/240V, 22kA Interrupt Rating
- SAFE – Provides overload and short circuit protection for your home electrical system
- CONVERTIBLE – All Leviton Load Centers come standard with 225A bussing, making it easy to adapt to project scope changes on the fly without changing load centers
- PROPRIETARY – Designed for use with Leviton Load Centers
- MODERN DESIGN – Matches our Indoor Load Center's white powder-coated finish for a sleek, modern appearance
Leviton Main Breaker (FG) Specifications
- Electrical Specifications
- Amperage: 100 A
- Breaker Technology: Thermal Magnetic
- Operating Temperature: -40C to +70C
- Short Circuit Current Rating: 22 KA
- Type: Main
- Voltage: 120/240 VAC
- Mechanical Specifications
- Weight: 2.83 lbs.
- Wiring: 6 AWG - 300 MCM Cu/Al
- Standards & Certifications
- CSA-C22.2 No. 5-02: Yes
- EMC Compatibility: Yes
- FCC: Yes
- RoHS: Yes
- UL 489: Molded Case Circuit Breakers
- Product Features
- Warranty: 10-Year Limited
Technical Specifications
Leviton Main Breaker (FG) Basic 2SP 100A Overview
100A 2-Pole Main Circuit Breaker with Thermal Magnetic Trip Technology. 120/240V, 22kA Interrupt Rating
- SAFE – Provides overload and short circuit protection for your home electrical system
- CONVERTIBLE – All Leviton Load Centers come standard with 225A bussing, making it easy to adapt to project scope changes on the fly without changing load centers
- PROPRIETARY – Designed for use with Leviton Load Centers
- MODERN DESIGN – Matches our Indoor Load Center's white powder-coated finish for a sleek, modern appearance
Leviton Main Breaker (FG) Specifications
- Electrical Specifications
- Amperage: 100 A
- Breaker Technology: Thermal Magnetic
- Operating Temperature: -40C to +70C
- Short Circuit Current Rating: 22 KA
- Type: Main
- Voltage: 120/240 VAC
- Mechanical Specifications
- Weight: 2.83 lbs.
- Wiring: 6 AWG - 300 MCM Cu/Al
- Standards & Certifications
- CSA-C22.2 No. 5-02: Yes
- EMC Compatibility: Yes
- FCC: Yes
- RoHS: Yes
- UL 489: Molded Case Circuit Breakers
- Product Features
- Warranty: 10-Year Limited
