About the product

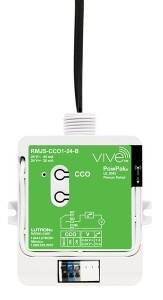

Lutron LMJ-CCO1-24-B RF CCO Module Overview
The Vive PowPak contact closure module is a low-voltage radio-frequency (RF) control that provides a single dry contact closure output based on input from Pico remote controls and Radio Powr Savr sensors. It can be powered by 24 VAC or 24VDC for easy connection and integration into building management, HVAC, VAV, and other 3rd-party systems. Communication with the RF input devices is accomplished using Lutron's reliable Clear Connect RF technology.
Communication with RF input devices, such as Pico remote controls and Radio Powr Savr sensors, is accomplished using Lutron Clear Connect RF Technology.
These products are also compatible with the Vive hub which enables a simple setup process using a standard web browser on any Wi-Fi-enabled phone, tablet, or computer. It also enables control and monitoring of all Vive devices. The Vive hub can be added at any time. System reprogramming will be required.
Lutron RF CCO Module Features
- Single contact closure output includes both normally open (NO) and normally closed (NC) dry contacts.
- Maintained output type.
- Operates at 24 V~ or 24 V.
- Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy/vacancy sensors, and 1 Radio Powr Savr daylight sensor.
- Utilizes Lutron Clear Connect RF Technology.
- Screw tabs are provided for surface mounting (recommended), or mount to a U.S.-style junction box through a standard-size knockout.
Lutron RF CCO Module Specifications
- Item #: LUT-RMJS-CCO1-24-B
- Brand: Lutron
- MPN: RMJS-CCO1-24-B
- UOM: EA
- UPC: 784276150507
- Origin: MX
- Condition: New
- Power:
- Operating voltage: 24 V~/24 V
- Operating current, nominal: 45 mA (24 V~) 35 mA (24 V-)
- Standby Power Consumption (all models): < 1.0 W
- IEC PELV/NEC® Class 2
- System Communication:
- Operates using Clear Connect® RF Technology for reliable wireless communication.
- Wireless sensors and controls must be located within a 60 ft (18 m) line of sight, or 30 ft (9 m), through walls, of the associated control module. The 60 ft (18 m) range is not reduced by
- RF range is 30 ft (9 m)
- Environment:
- 0% to 90% humidity, non-condensing
- For indoor use only
- All drivers and ballasts used with Vive wireless controls must comply with the limits for a Class A device pursuant to Part 15 of the FCC Rules
- Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
- Regulatory Approvals:
- FCC approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules. (USA)
- UL® Listed (USA)
- Complies with requirements for use in other spaces used for environmental air (plenums) per NEC® 2014 300.22(C)(3)
- Listed in accordance with CAN/ULC S102.2-2010 with a Flame Spread Rating of 0 and a Smoke Developed Classification of 40, with a minimum spacing of 6 ft (1.83 m) off center
- Contact Closure Output:
- Provides both normally open (NO) and normally closed (NC) dry contacts
- The CCO is not rated to control unclamped, inductive loads. Inductive loads include, but are not limited to, relays, solenoids, and motors. To control these types of equipment, a flyback diode must be used
- CCO terminals accept 20 AWG to 16 AWG (0.5 mm to 1.5 mm) solid or stranded wire
- Maintained output type
- Output is latching
Technical Specifications
Lutron LMJ-CCO1-24-B RF CCO Module Overview
The Vive PowPak contact closure module is a low-voltage radio-frequency (RF) control that provides a single dry contact closure output based on input from Pico remote controls and Radio Powr Savr sensors. It can be powered by 24 VAC or 24VDC for easy connection and integration into building management, HVAC, VAV, and other 3rd-party systems. Communication with the RF input devices is accomplished using Lutron's reliable Clear Connect RF technology.
Communication with RF input devices, such as Pico remote controls and Radio Powr Savr sensors, is accomplished using Lutron Clear Connect RF Technology.
These products are also compatible with the Vive hub which enables a simple setup process using a standard web browser on any Wi-Fi-enabled phone, tablet, or computer. It also enables control and monitoring of all Vive devices. The Vive hub can be added at any time. System reprogramming will be required.
Lutron RF CCO Module Features
- Single contact closure output includes both normally open (NO) and normally closed (NC) dry contacts.
- Maintained output type.
- Operates at 24 V~ or 24 V.
- Receives wireless inputs from up to 10 Pico remote controls, 10 Radio Powr Savr occupancy/vacancy sensors, and 1 Radio Powr Savr daylight sensor.
- Utilizes Lutron Clear Connect RF Technology.
- Screw tabs are provided for surface mounting (recommended), or mount to a U.S.-style junction box through a standard-size knockout.
Lutron RF CCO Module Specifications
- Item #: LUT-RMJS-CCO1-24-B
- Brand: Lutron
- MPN: RMJS-CCO1-24-B
- UOM: EA
- UPC: 784276150507
- Origin: MX
- Condition: New
- Power:
- Operating voltage: 24 V~/24 V
- Operating current, nominal: 45 mA (24 V~) 35 mA (24 V-)
- Standby Power Consumption (all models): < 1.0 W
- IEC PELV/NEC® Class 2
- System Communication:
- Operates using Clear Connect® RF Technology for reliable wireless communication.
- Wireless sensors and controls must be located within a 60 ft (18 m) line of sight, or 30 ft (9 m), through walls, of the associated control module. The 60 ft (18 m) range is not reduced by
- RF range is 30 ft (9 m)
- Environment:
- 0% to 90% humidity, non-condensing
- For indoor use only
- All drivers and ballasts used with Vive wireless controls must comply with the limits for a Class A device pursuant to Part 15 of the FCC Rules
- Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
- Regulatory Approvals:
- FCC approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules. (USA)
- UL® Listed (USA)
- Complies with requirements for use in other spaces used for environmental air (plenums) per NEC® 2014 300.22(C)(3)
- Listed in accordance with CAN/ULC S102.2-2010 with a Flame Spread Rating of 0 and a Smoke Developed Classification of 40, with a minimum spacing of 6 ft (1.83 m) off center
- Contact Closure Output:
- Provides both normally open (NO) and normally closed (NC) dry contacts
- The CCO is not rated to control unclamped, inductive loads. Inductive loads include, but are not limited to, relays, solenoids, and motors. To control these types of equipment, a flyback diode must be used
- CCO terminals accept 20 AWG to 16 AWG (0.5 mm to 1.5 mm) solid or stranded wire
- Maintained output type
- Output is latching
