About the product
Leviton Indoor Load Centers are easy to install and feature a white enclosure housing white circuit breakers for a modern, appealing unit. An optional observation window in the cover allows at-a-glance operating status of all the circuit breakers.

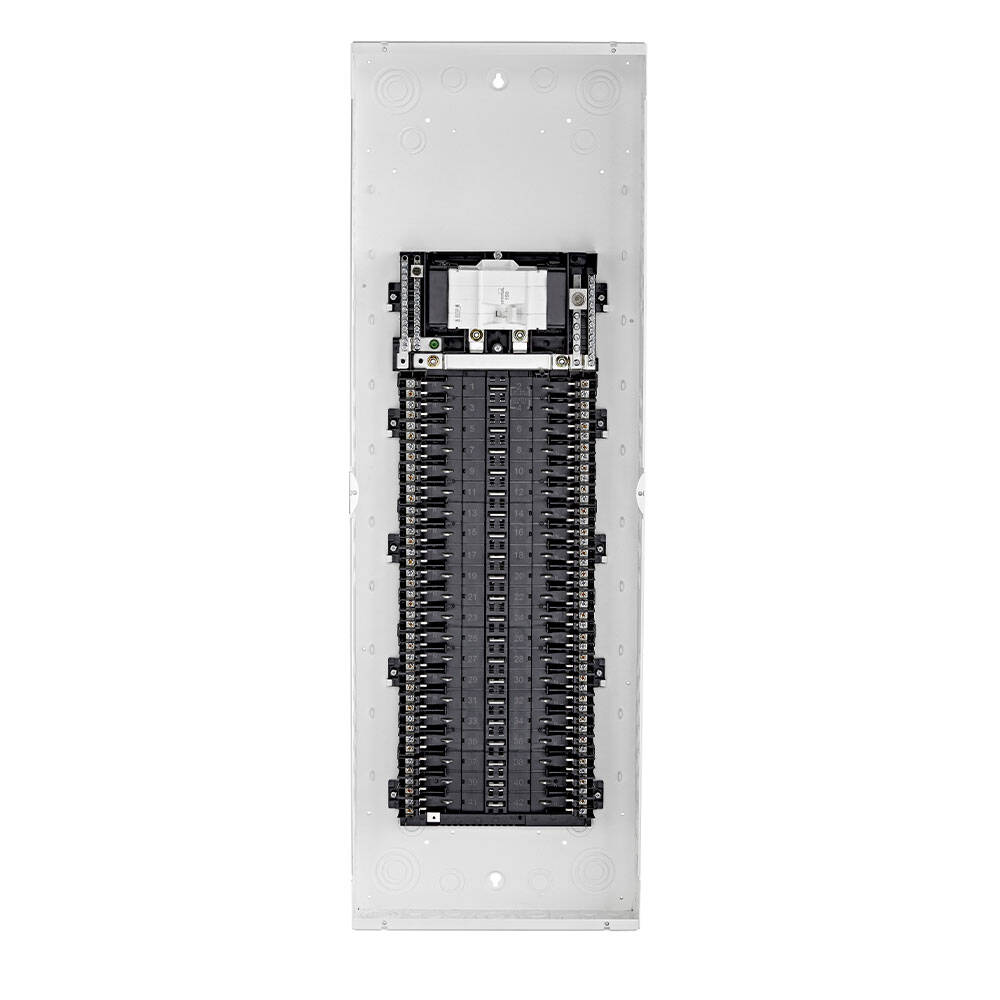

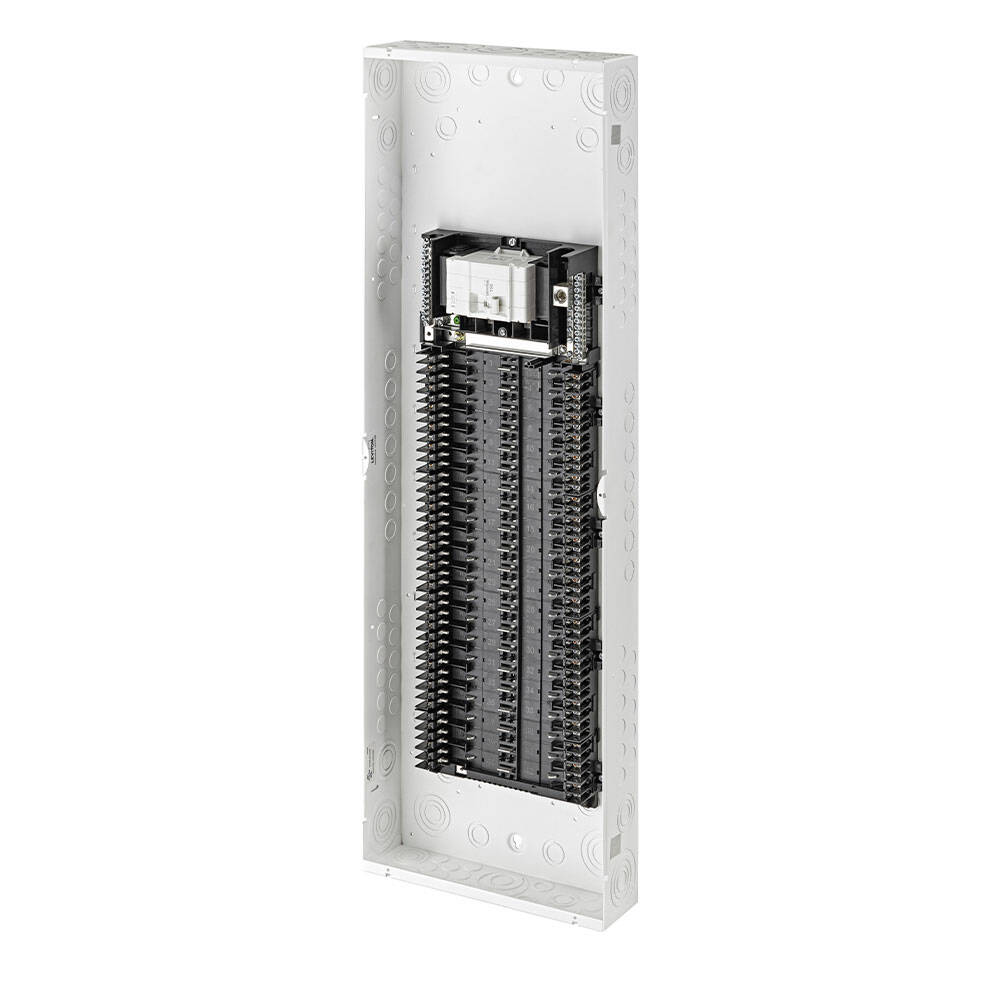

Leviton Load Center NEMA1 Indoor, Main Breaker with Door 100A 42SP Features:
- Color: White
- Type: Indoor Without Window
- Warranty: 10-Year Limited
Leviton Load Center NEMA1 Indoor, Main Breaker with Door 100A 42SP Specifications:
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated Enclosure
- Material: Galvanized Steel, White Powder Coated
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG – 300 MCM
- Dimensions: 30.15” x 14.25” x 3.85”
- Standards and Certifications:
- CSA Std.: C22.2 No. 29-15
- Certificate: 70170209
- UL 67: File E480408
- UL 50: Yes
- UL 50E: Yes
- UL 869A: Yes
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
Technical Specifications
Leviton Indoor Load Centers are easy to install and feature a white enclosure housing white circuit breakers for a modern, appealing unit. An optional observation window in the cover allows at-a-glance operating status of all the circuit breakers.
Leviton Load Center NEMA1 Indoor, Main Breaker with Door 100A 42SP Features:
- Color: White
- Type: Indoor Without Window
- Warranty: 10-Year Limited
Leviton Load Center NEMA1 Indoor, Main Breaker with Door 100A 42SP Specifications:
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated Enclosure
- Material: Galvanized Steel, White Powder Coated
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG – 300 MCM
- Dimensions: 30.15” x 14.25” x 3.85”
- Standards and Certifications:
- CSA Std.: C22.2 No. 29-15
- Certificate: 70170209
- UL 67: File E480408
- UL 50: Yes
- UL 50E: Yes
- UL 869A: Yes
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
