About the product

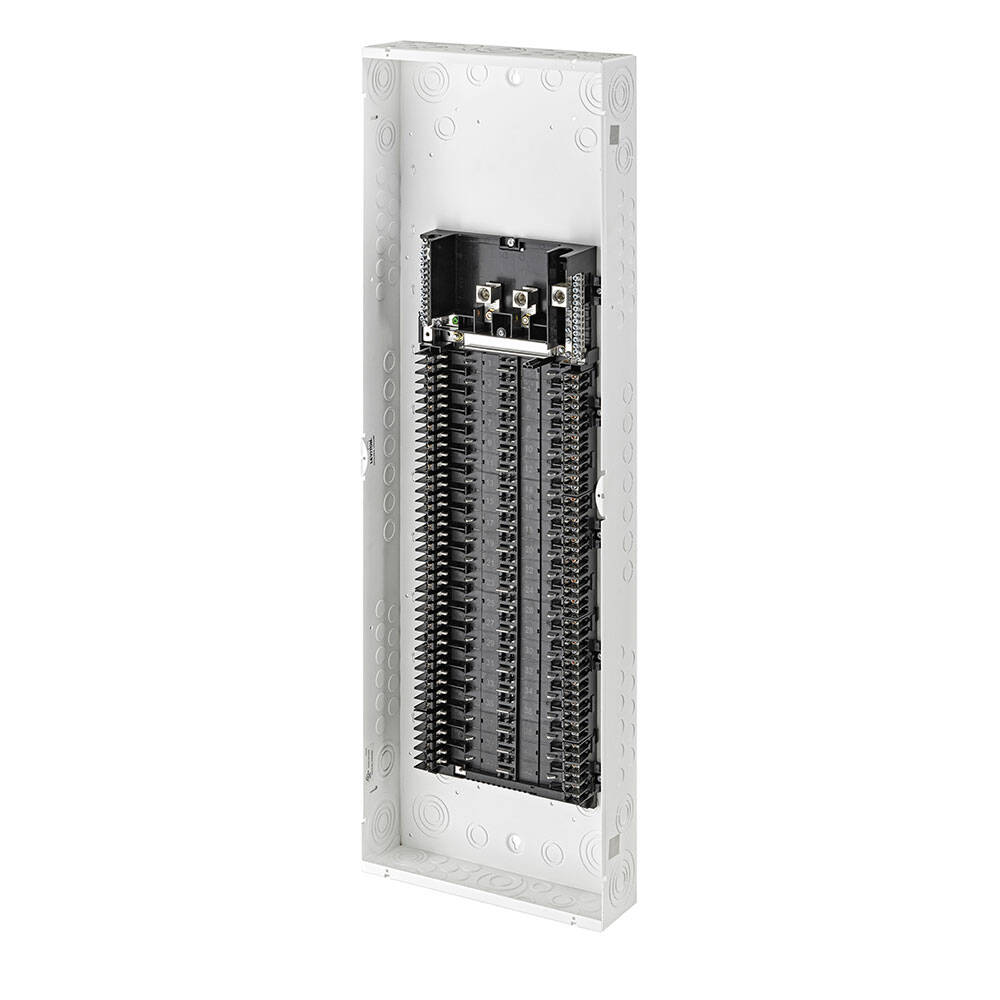

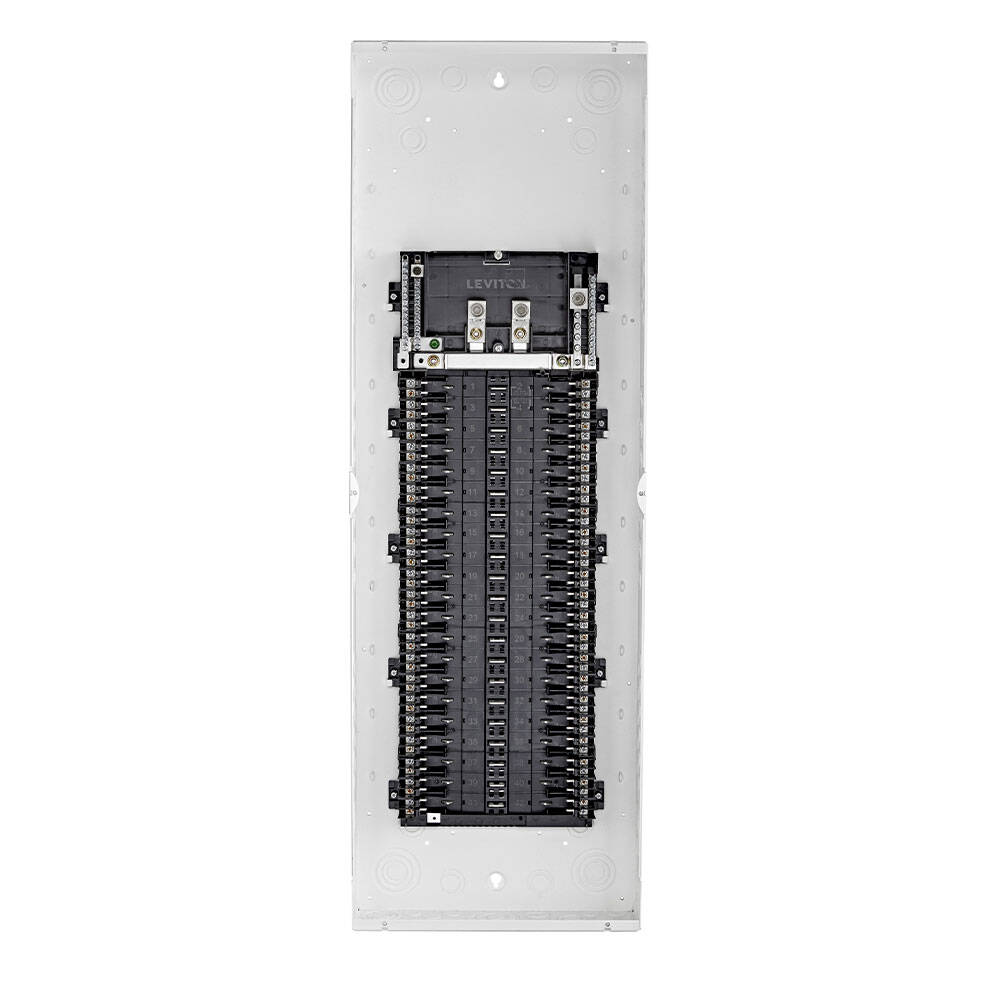

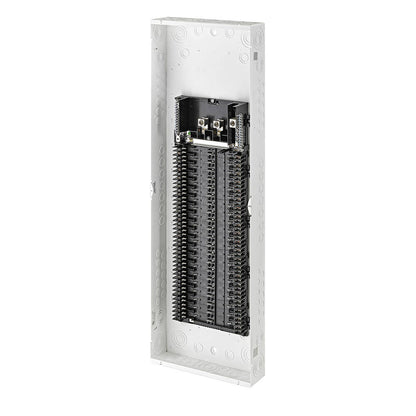

Leviton Load Center NEMA1 Indoor MAIN LUGS with Windowed Door 225A 42SP Features:
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- MODERN DESIGN – Features a white, powder coated finish for a sleek, modern appearance
- OBSERVATION WINDOW – Provides at-a-glance operational status of circuit breakers. Easily identify when a breaker has tripped, and the type of fault with intuitive LED diagnostics
Leviton Load Center NEMA1 Indoor MAIN LUGS with Windowed Door 225A 42SP Specifications:
- Color: White
- Type: Indoor With Window
- Warranty: 10-Year Limited
- Amperage: 225 A
- Short Circuit Current Rating: 10kA
- Spaces / Circuits: 42 / 42
- Type of Load Center: Main Lug
- Voltage: 120/240 VAC
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Dimensions: 43"" H x 14.25"" W x 4""/ 45.3"" H x 16.25"" W
- Enclosure Material: Galvanized Steel, White Powder Coat
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- Weight: 30 lbs / 20.3 lbs
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
- CSA: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
Technical Specifications
Leviton Load Center NEMA1 Indoor MAIN LUGS with Windowed Door 225A 42SP Features:
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- MODERN DESIGN – Features a white, powder coated finish for a sleek, modern appearance
- OBSERVATION WINDOW – Provides at-a-glance operational status of circuit breakers. Easily identify when a breaker has tripped, and the type of fault with intuitive LED diagnostics
Leviton Load Center NEMA1 Indoor MAIN LUGS with Windowed Door 225A 42SP Specifications:
- Color: White
- Type: Indoor With Window
- Warranty: 10-Year Limited
- Amperage: 225 A
- Short Circuit Current Rating: 10kA
- Spaces / Circuits: 42 / 42
- Type of Load Center: Main Lug
- Voltage: 120/240 VAC
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Dimensions: 43"" H x 14.25"" W x 4""/ 45.3"" H x 16.25"" W
- Enclosure Material: Galvanized Steel, White Powder Coat
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- Weight: 30 lbs / 20.3 lbs
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
- CSA: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
