About the product
Leviton Indoor Load Centers are easy to install and feature a white enclosure housing white circuit breakers for a modern, appealing unit. An optional observation window in the cover allows at-a-glance operating status of all the circuit breakers.

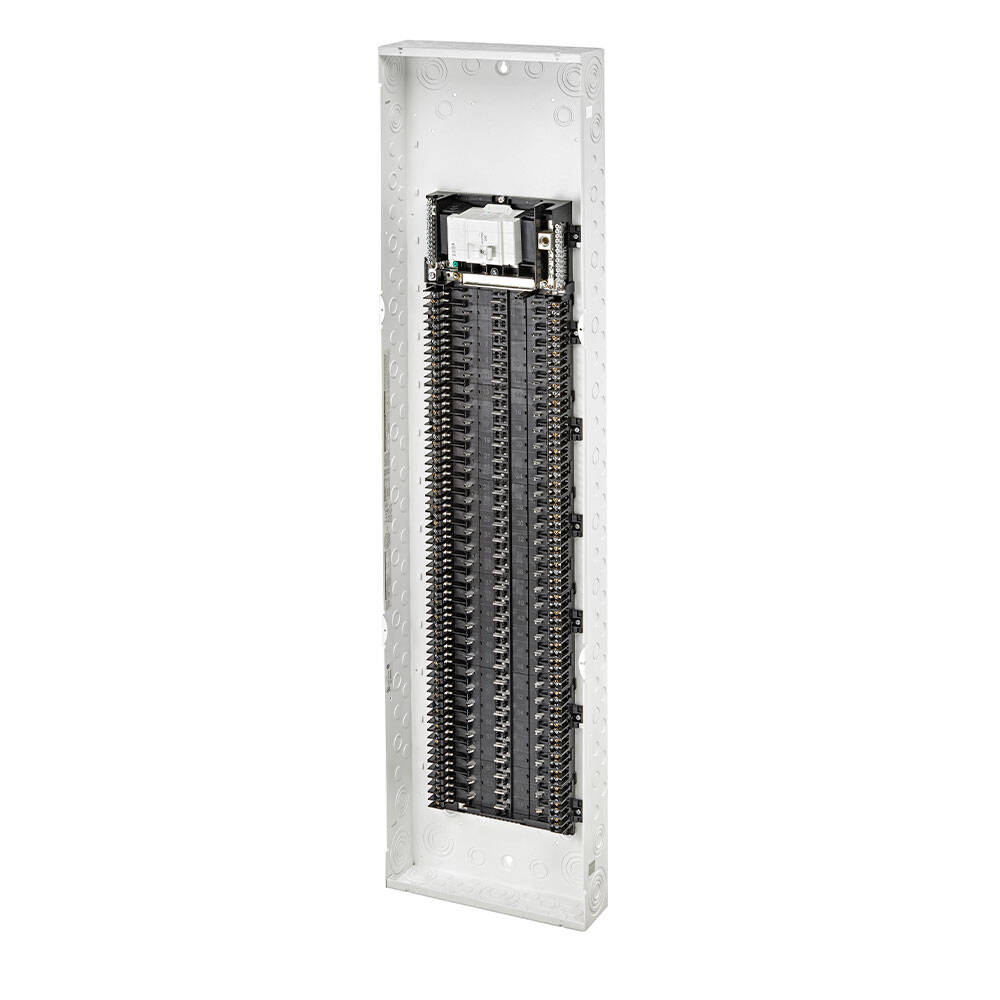

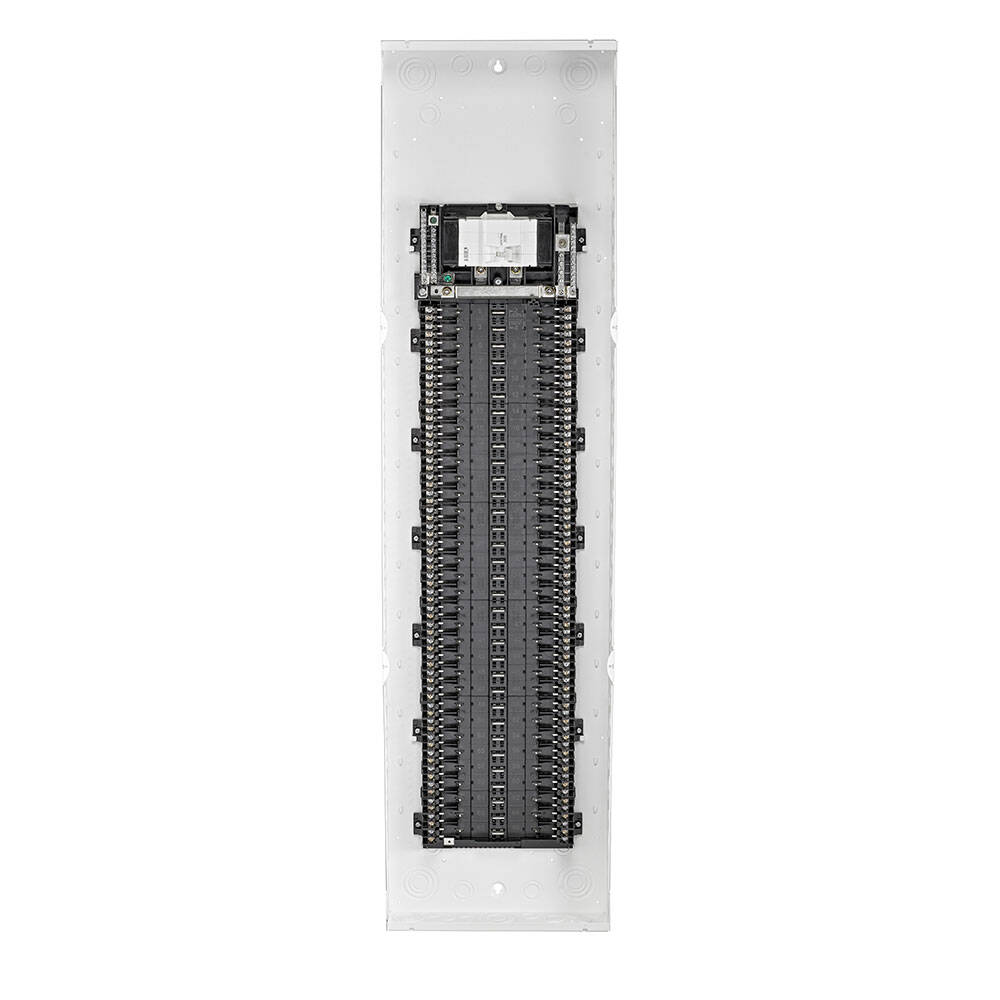

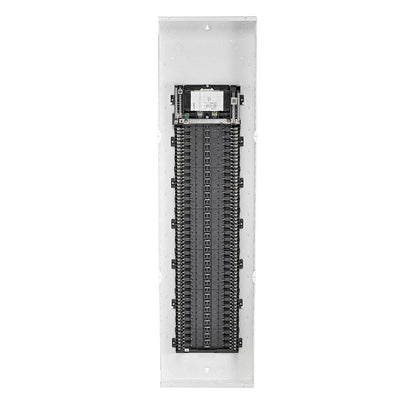

Leviton Load Center Indoor NEMA1, 200A Main Breaker, 66 Space, Standard Door Features:
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Easily invertible for bottom feed applications
- Copper bus is standard
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Leviton Load Center Indoor NEMA1, 200A Main Breaker, 66 Space, Standard Door Specifications:
- Standards and Certifications:
- CSA Std.: C22.2 No. 29-15
- Certificate: 70170209
- UL 67: File E480408
- UL 50: Yes
- UL 50E: Yes
- UL 869A: Yes
- Warranty: 10-Year Limited
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, White Powder Coated
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG – 300 MCM
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
Technical Specifications
Leviton Indoor Load Centers are easy to install and feature a white enclosure housing white circuit breakers for a modern, appealing unit. An optional observation window in the cover allows at-a-glance operating status of all the circuit breakers.
Leviton Load Center Indoor NEMA1, 200A Main Breaker, 66 Space, Standard Door Features:
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Easily invertible for bottom feed applications
- Copper bus is standard
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Leviton Load Center Indoor NEMA1, 200A Main Breaker, 66 Space, Standard Door Specifications:
- Standards and Certifications:
- CSA Std.: C22.2 No. 29-15
- Certificate: 70170209
- UL 67: File E480408
- UL 50: Yes
- UL 50E: Yes
- UL 869A: Yes
- Warranty: 10-Year Limited
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, White Powder Coated
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG – 300 MCM
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
