About the product

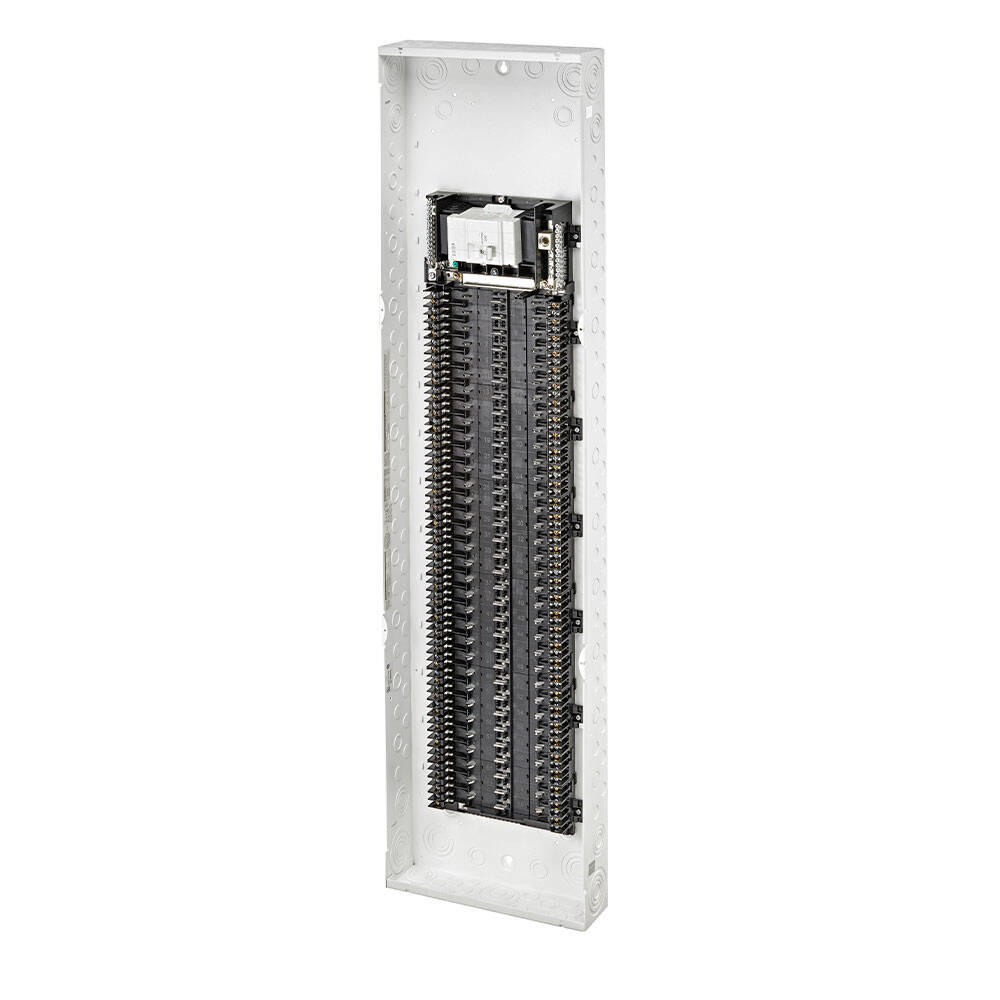

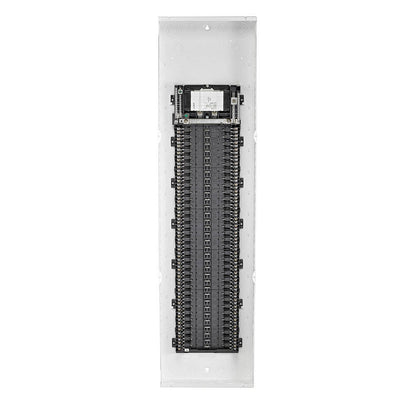

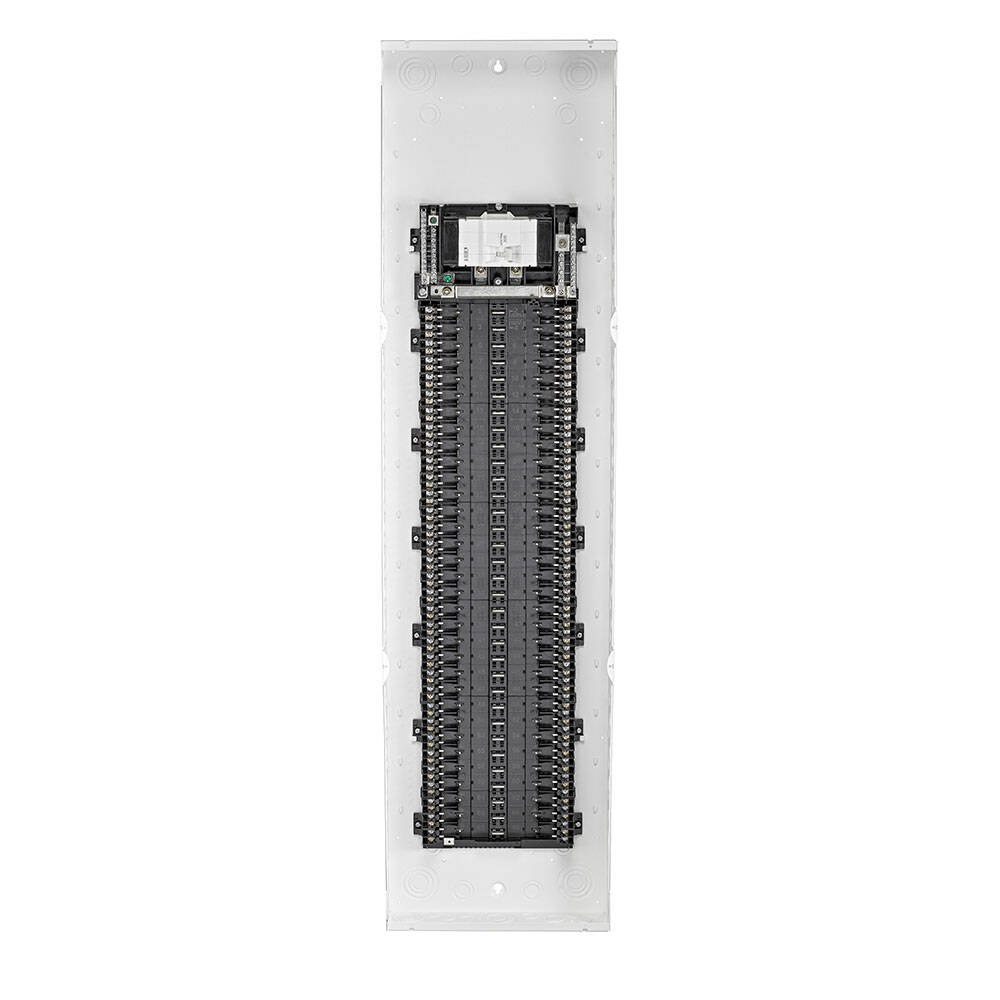

Leviton Indoor Load Center with 225A Main Circuit Breaker Factory Installed, 66 Spaces, NEMA 1 Rated. Includes Enclosure, and Door. Designed for use in Canada
Leviton Indoor Load Center with Main Breaker, 225 Amp 66 Space, Door Features:
- Color: White
- Warranty: 10-Year Limited
Leviton Indoor Load Center with Main Breaker, 225 Amp 66 Space, Door Specifications:
- Amperage: 225 A
- Short Circuit Current Rating: 22 KA
- Spaces / Circuits: 66 / 66
- Type: Indoor Without Window
- Type of Load Center: Main Breaker
- Voltage: 120/240 VAC
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Enclosure Material: Galvanized Steel, White Powder Coat
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Material: Galvanized Steel
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
- Standards & Certifications:
- CSA: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
Technical Specifications
Leviton Indoor Load Center with 225A Main Circuit Breaker Factory Installed, 66 Spaces, NEMA 1 Rated. Includes Enclosure, and Door. Designed for use in Canada
Leviton Indoor Load Center with Main Breaker, 225 Amp 66 Space, Door Features:
- Color: White
- Warranty: 10-Year Limited
Leviton Indoor Load Center with Main Breaker, 225 Amp 66 Space, Door Specifications:
- Amperage: 225 A
- Short Circuit Current Rating: 22 KA
- Spaces / Circuits: 66 / 66
- Type: Indoor Without Window
- Type of Load Center: Main Breaker
- Voltage: 120/240 VAC
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Enclosure Material: Galvanized Steel, White Powder Coat
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Material: Galvanized Steel
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 1 Indoor
- Operating Temperature: -40°C to 70°C
- Standards & Certifications:
- CSA: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
