About the product

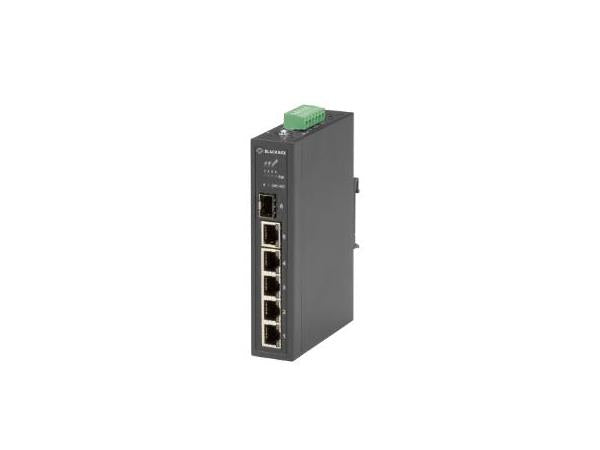

Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial Unmanaged Ethernet PoE+ Switch from Black Box comes in. This extreme industrial switch features four autosensing 10-/100-Mbps PoE/PoE+ 802 af/at copper ports, one autosensing Gigabit copper port, and one Gigabit SFP fiber uplink port. Fiber SFPs are available with a variety of connectors in single- or multimode, and with ranges dependant upon the SFP used.
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | LPH3061A |
| Connectivity Technology: | Wired |
| Status Indicators: | LEDs |
| Networking Compliant Standards: | IEEE 802.3, 802.3u, 802.3x, 802.1ab, 802.1z |
| Power / Device Type: | Power Supply |
| Max Power Consumption: | 2 Watt |
| Power / Voltage Required: | 48 VDC |
| Features: | Provides four Fast Ethernet PoE/PoE+ ports, one Gigabit copper port and one Gigabit SFP port.Extended temperature range of -40 to +167 F (-40 to +75 C) with an IP30 case.Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories. |
| Network | |
| Power Over Ethernet (PoE) Support: | YES |
| 10/100BASE-T Ports: | 4 |
| 10/100/1000BASE-T Ports: | 1 |
| SFP Ports: | 1 |
| Interfaces: | (4) 10/100-Mbps Copper RJ45 PoE+, (1) 10/100/1000-Mbps Copper RJ45, (1) 1000-Mbps SFP |
| Interfaces / Ports | |
| Interfaces: | (4) 10/100-Mbps Copper RJ45 PoE+, (1) 10/100/1000-Mbps Copper RJ45, (1) 1000-Mbps SFP |
| 10/100BASE-T Ports: | 4 |
| 10/100/1000BASE-T Ports: | 1 |
| SFP Ports: | 1 |
| Dimensions&Miscellaneous | |
| What's Included: | Panel mount Kit |
| Width: | 1.18 Inch |
| Depth: | 3.74 Inch |
| Height: | 5.51 Inch |
| Service&Support | |
| Service & Support Type: | 1 Year Double Diamond Warranty (Standard) |
| Special Feature | |
| Min Operating Temperature: | -40 CELSIUS |
| Max Operating Temperature: | 75 CELSIUS |
| Min Storage Temperature: | -40 CELSIUS |
| Max Storage Temperature: | 85 CELSIUS |
| COO: | CHINA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
