About the product

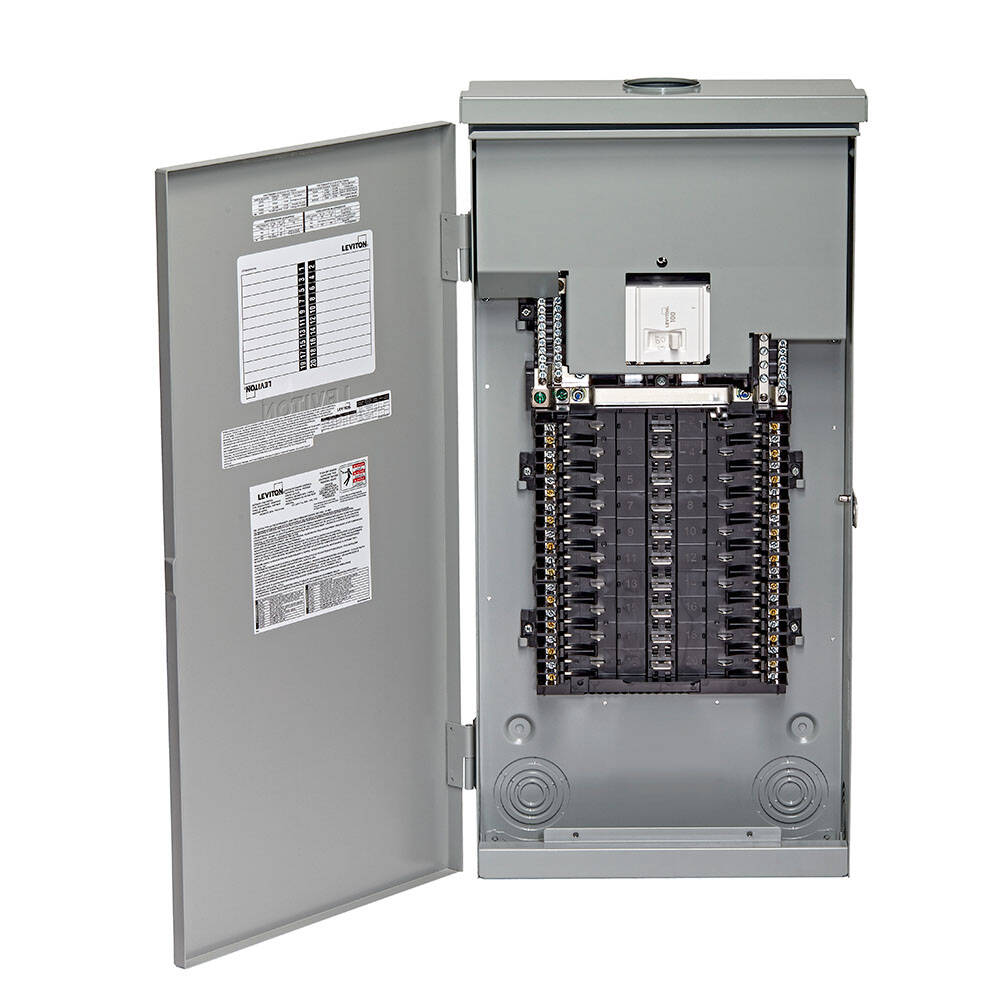

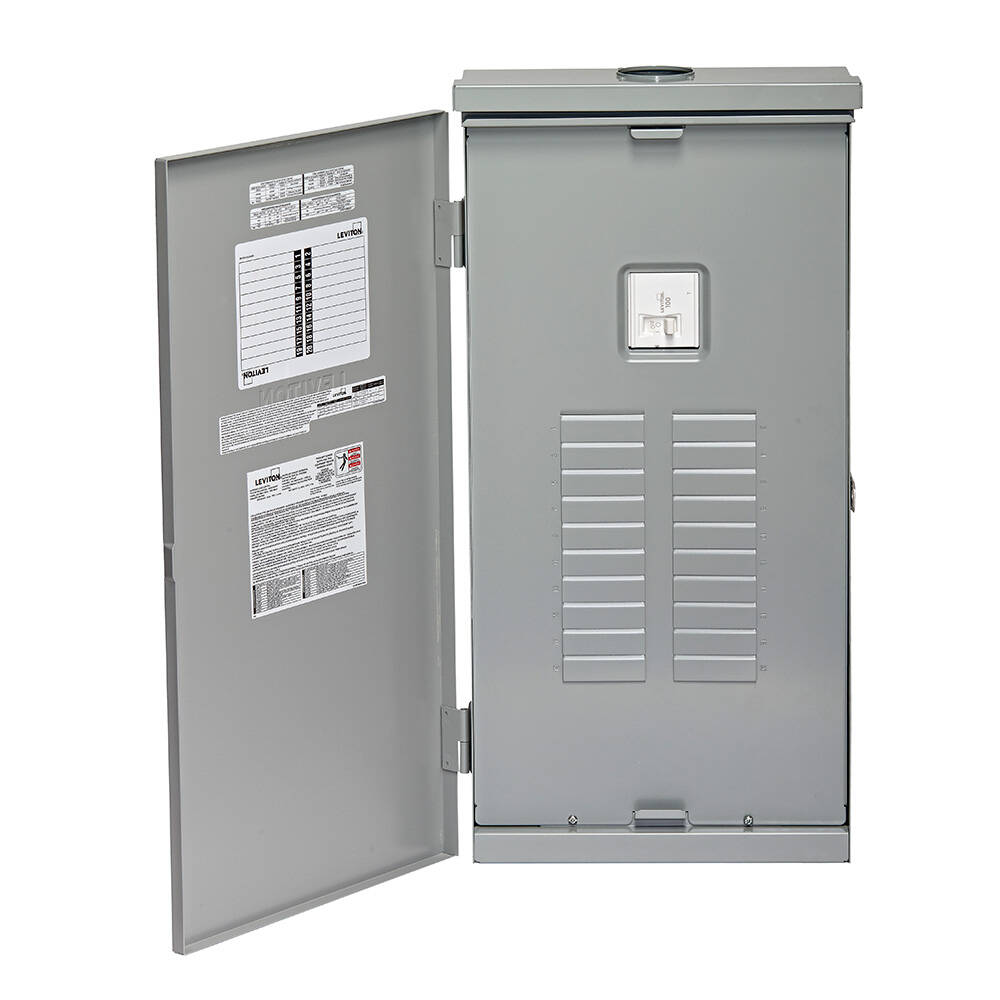

The Leviton Outdoor Load Center is easy to install and designed to withstand the elements. It features a gray, weather-resistant enclosure with a solid cover housing white circuit breakers.
Leviton Load Center NEM3R Outdoor Main Breaker 100A 20SP 22KA Features:
- Color- Gray
- Type: Outdoor
- Warranty: 10-Year Limited
Leviton Load Center NEM3R Outdoor Main Breaker 100A 20SP 22KA Specifications:
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40°C to 70°C
- Standards and Certifications:
- CSA Std. C22.2 No. 29-15
- Certificate 70170209
- UL 67: File E480408
- UL 50
- UL 50E
- UL 869A
Technical Specifications
The Leviton Outdoor Load Center is easy to install and designed to withstand the elements. It features a gray, weather-resistant enclosure with a solid cover housing white circuit breakers.
Leviton Load Center NEM3R Outdoor Main Breaker 100A 20SP 22KA Features:
- Color- Gray
- Type: Outdoor
- Warranty: 10-Year Limited
Leviton Load Center NEM3R Outdoor Main Breaker 100A 20SP 22KA Specifications:
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40°C to 70°C
- Standards and Certifications:
- CSA Std. C22.2 No. 29-15
- Certificate 70170209
- UL 67: File E480408
- UL 50
- UL 50E
- UL 869A
