About the product

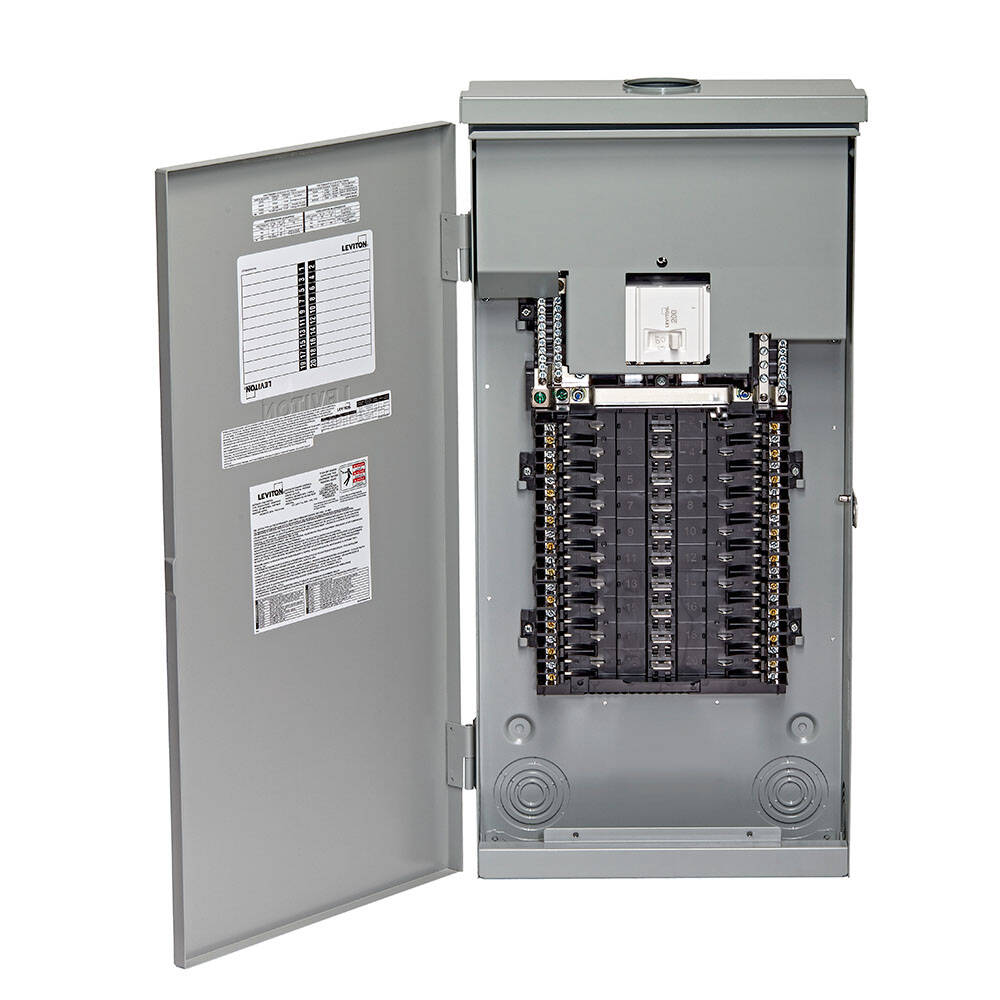

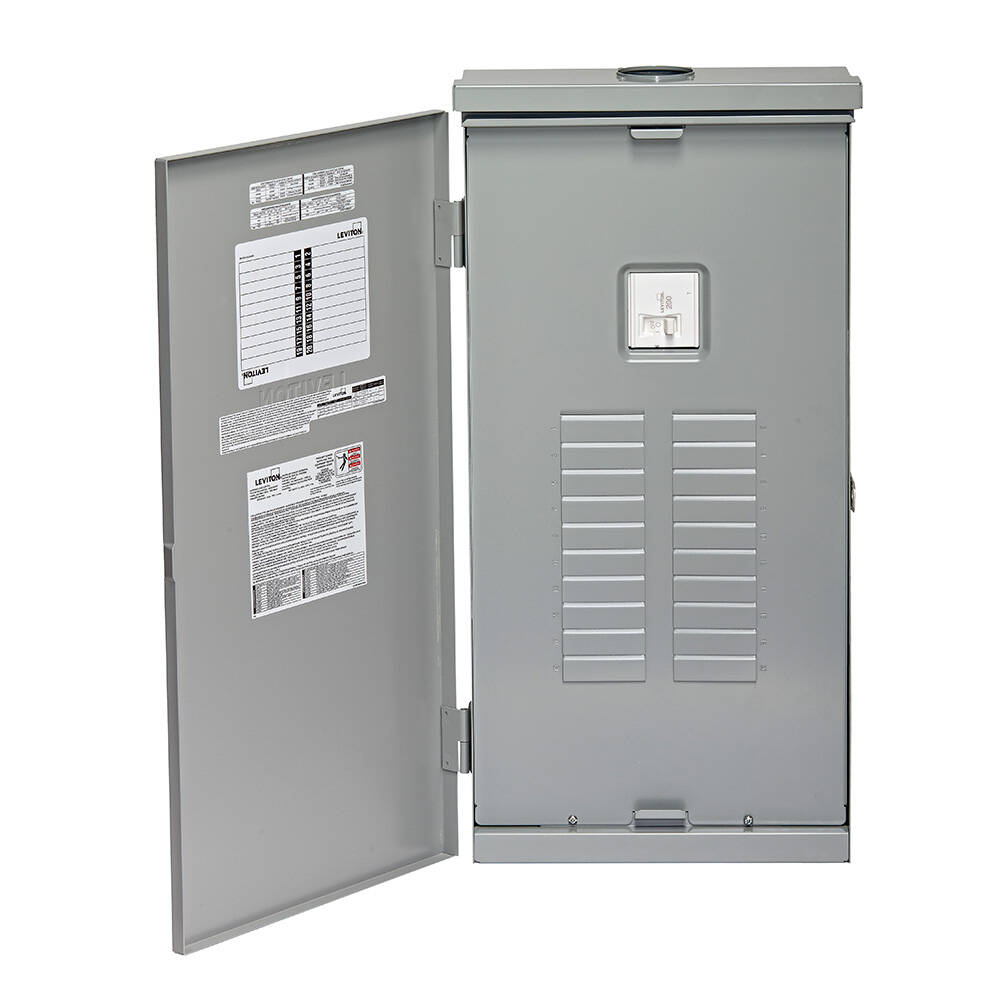

The Leviton Outdoor Load Center is easy to install and designed to withstand the elements. It features a gray, weather-resistant enclosure with a solid cover housing white circuit breakers.
Leviton Load Center Outdoor NEMA3, 200A Main Breaker, 20 Space Features:
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Copper bus is standard
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Leviton Load Center Outdoor NEMA3, 200A Main Breaker, 20 Space Specifications:
- Standards and Certifications:
- CSA Std. C22.2 No. 29-15
- Certificate 70170209
- UL 67: File E480408
- UL 50
- UL 50E
- UL 869A
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Bus bar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40ºC to 70ºC
Technical Specifications
The Leviton Outdoor Load Center is easy to install and designed to withstand the elements. It features a gray, weather-resistant enclosure with a solid cover housing white circuit breakers.
Leviton Load Center Outdoor NEMA3, 200A Main Breaker, 20 Space Features:
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Copper bus is standard
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Leviton Load Center Outdoor NEMA3, 200A Main Breaker, 20 Space Specifications:
- Standards and Certifications:
- CSA Std. C22.2 No. 29-15
- Certificate 70170209
- UL 67: File E480408
- UL 50
- UL 50E
- UL 869A
- Short Circuit Current Rating: 22 KA
- Voltage: 120/240 VAC
- Bus bar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 3 AWG - 300 MCM Cu/Al
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40ºC to 70ºC
