About the product

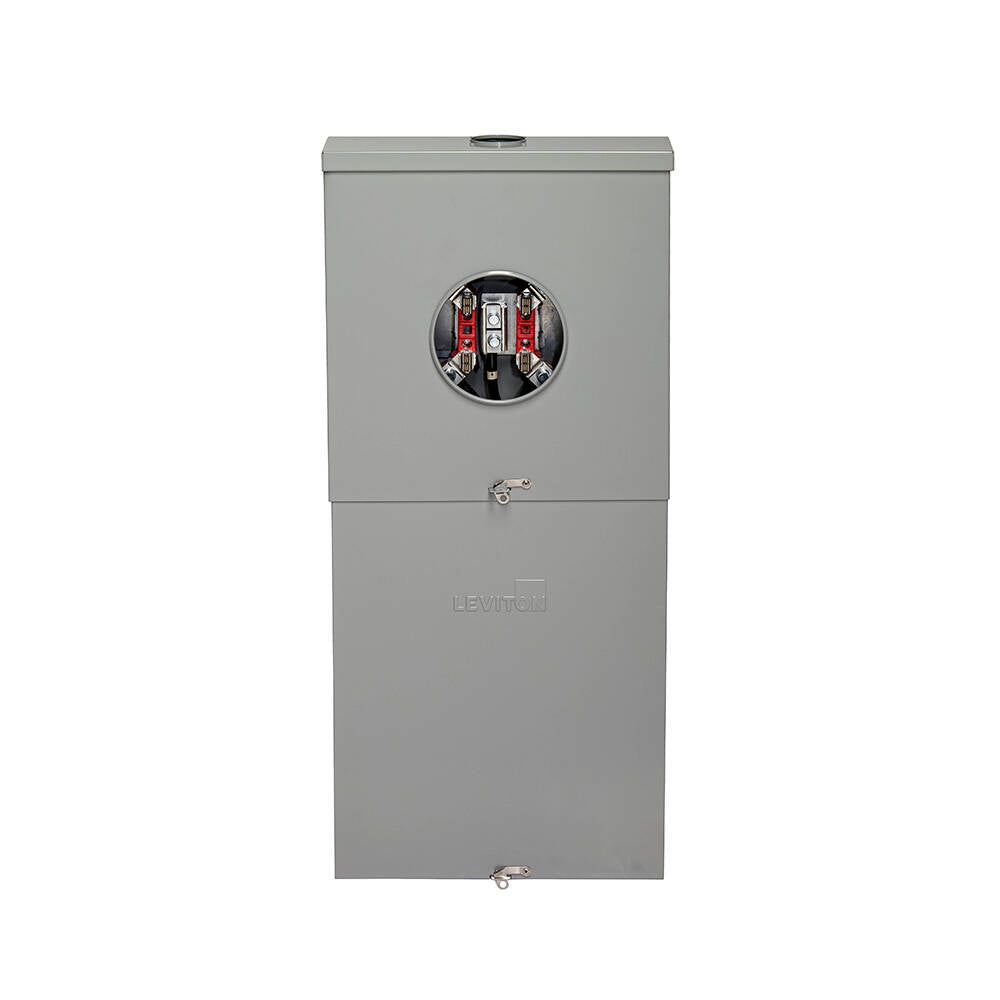

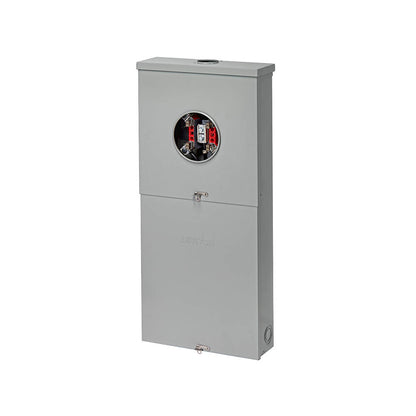

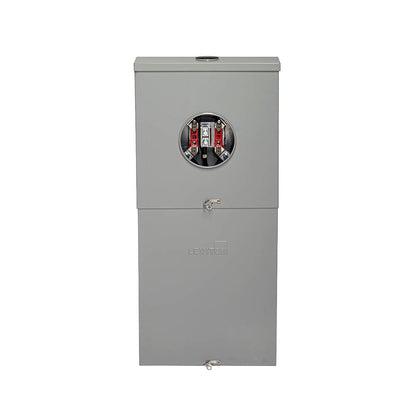

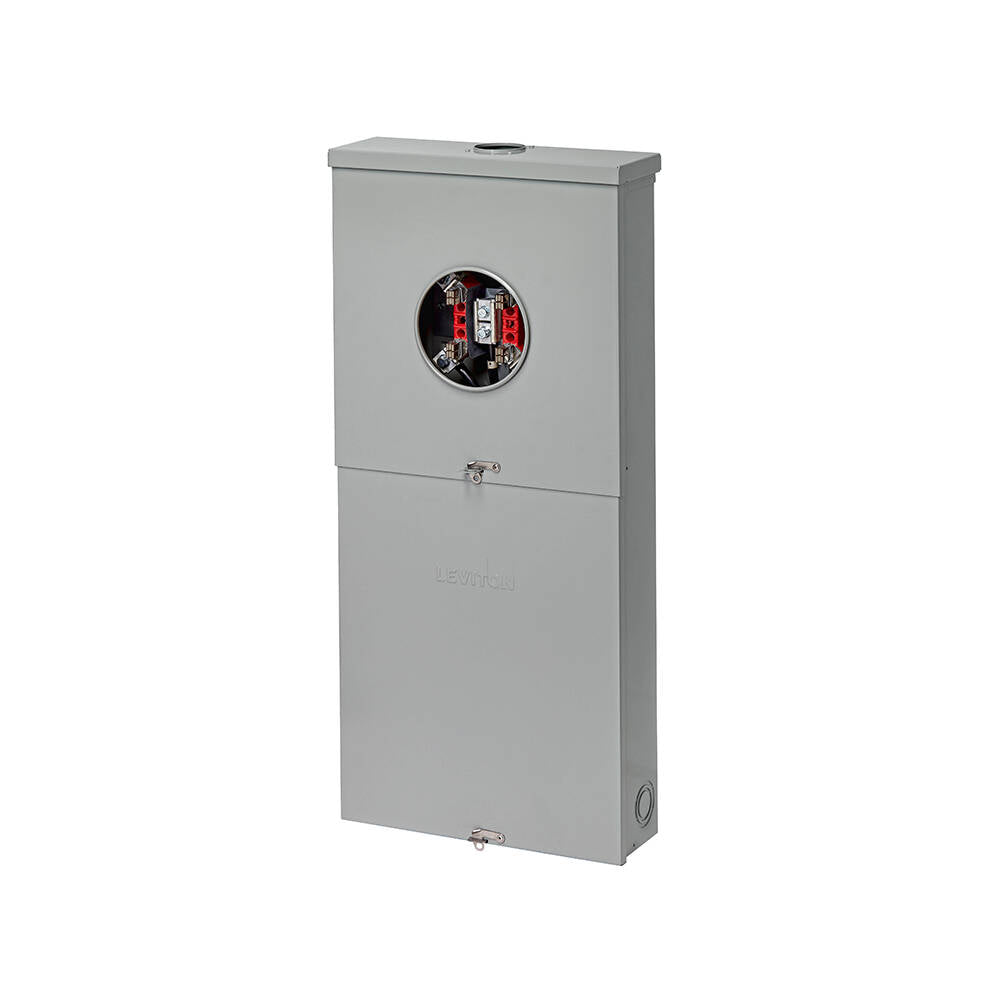

Leviton Load Center Meter Main Panels combine the Meter and Main Breaker into one easy-to-install unit. Each Meter Main includes 8 spaces to enable easy wiring of outdoor circuits.
Leviton Outdoor Meter Main Combo, 8 spaces, 150A, Ring Type, No Bypass, NEMA3r Features:
- NEMA 3R
- 22kA Interrupt Rating
- In Compliance with CSA Std. C22.2 No.29, 94.2, and 0.19 and Standards UL 50, UL 50E, UL 67
- Powder Coated
Leviton Outdoor Meter Main Combo, 8 spaces, 150A, Ring Type, No Bypass, NEMA3r Specifications:
- Standards and Certifications:
- CSA Std. C22.2 No.29: Yes
- CSA Std. C22.2 No.94.2: Yes
- CSA Std. C22.2 No.0.19: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
- Short Circuit Current Rating: 22 KA
- Spaces/Circuits: 8/8
- Type: Outdoor
- Type of Load Center: Meter Main
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Material: Galvanized Steel
- Supply Connections: 6 AWG – 350 MCM
- Weight: 56.8 lbs
- Warranty: 10-Year Limited
Technical Specifications
Leviton Load Center Meter Main Panels combine the Meter and Main Breaker into one easy-to-install unit. Each Meter Main includes 8 spaces to enable easy wiring of outdoor circuits.
Leviton Outdoor Meter Main Combo, 8 spaces, 150A, Ring Type, No Bypass, NEMA3r Features:
- NEMA 3R
- 22kA Interrupt Rating
- In Compliance with CSA Std. C22.2 No.29, 94.2, and 0.19 and Standards UL 50, UL 50E, UL 67
- Powder Coated
Leviton Outdoor Meter Main Combo, 8 spaces, 150A, Ring Type, No Bypass, NEMA3r Specifications:
- Standards and Certifications:
- CSA Std. C22.2 No.29: Yes
- CSA Std. C22.2 No.94.2: Yes
- CSA Std. C22.2 No.0.19: Yes
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
- Short Circuit Current Rating: 22 KA
- Spaces/Circuits: 8/8
- Type: Outdoor
- Type of Load Center: Meter Main
- Voltage: 120/240 VAC
- Busbar rating (all panels): 225A
- Busbar Material: Copper, Bright Tin-Plated
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Material: Galvanized Steel
- Supply Connections: 6 AWG – 350 MCM
- Weight: 56.8 lbs
- Warranty: 10-Year Limited
