About the product

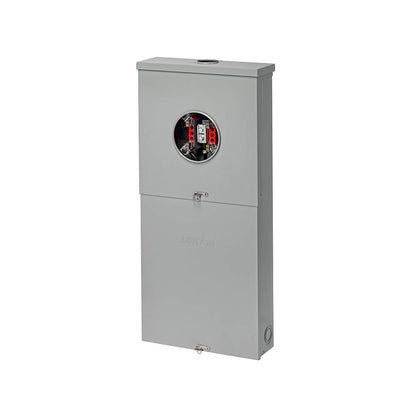

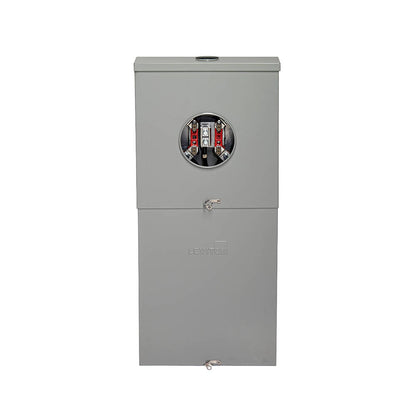

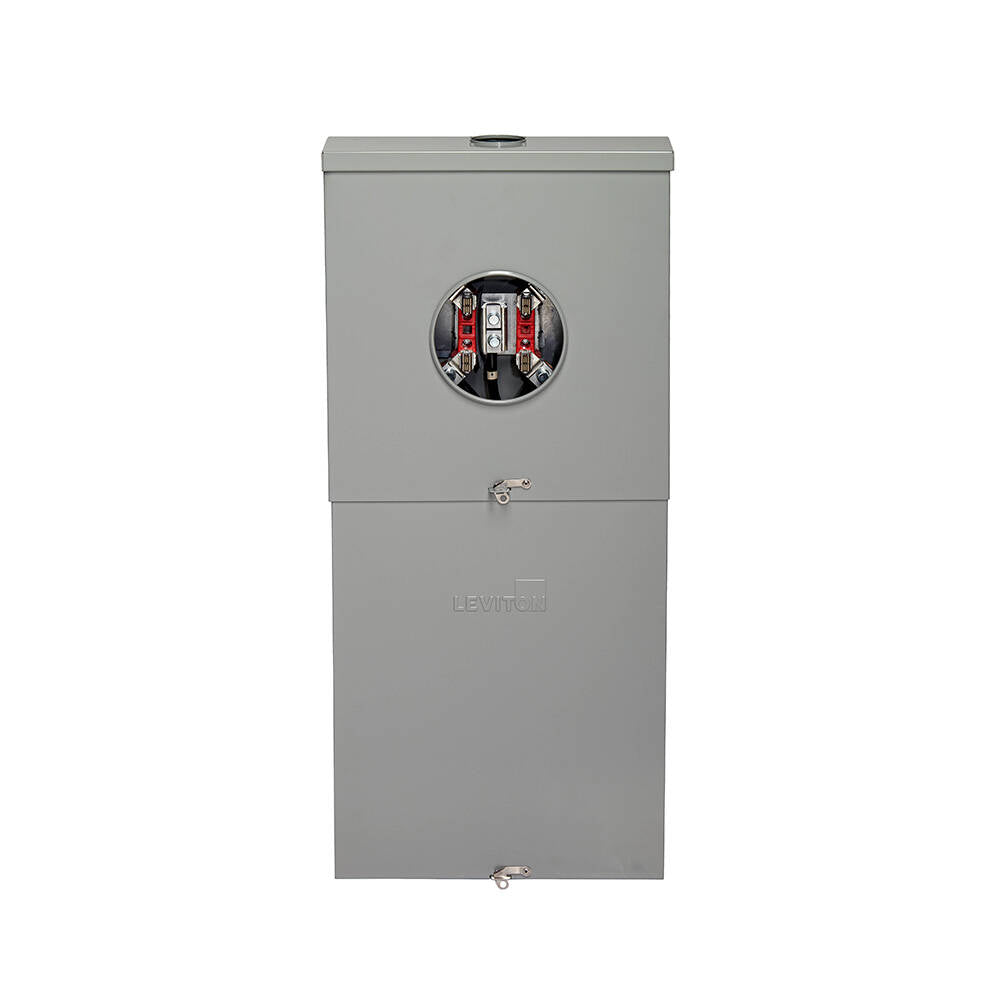

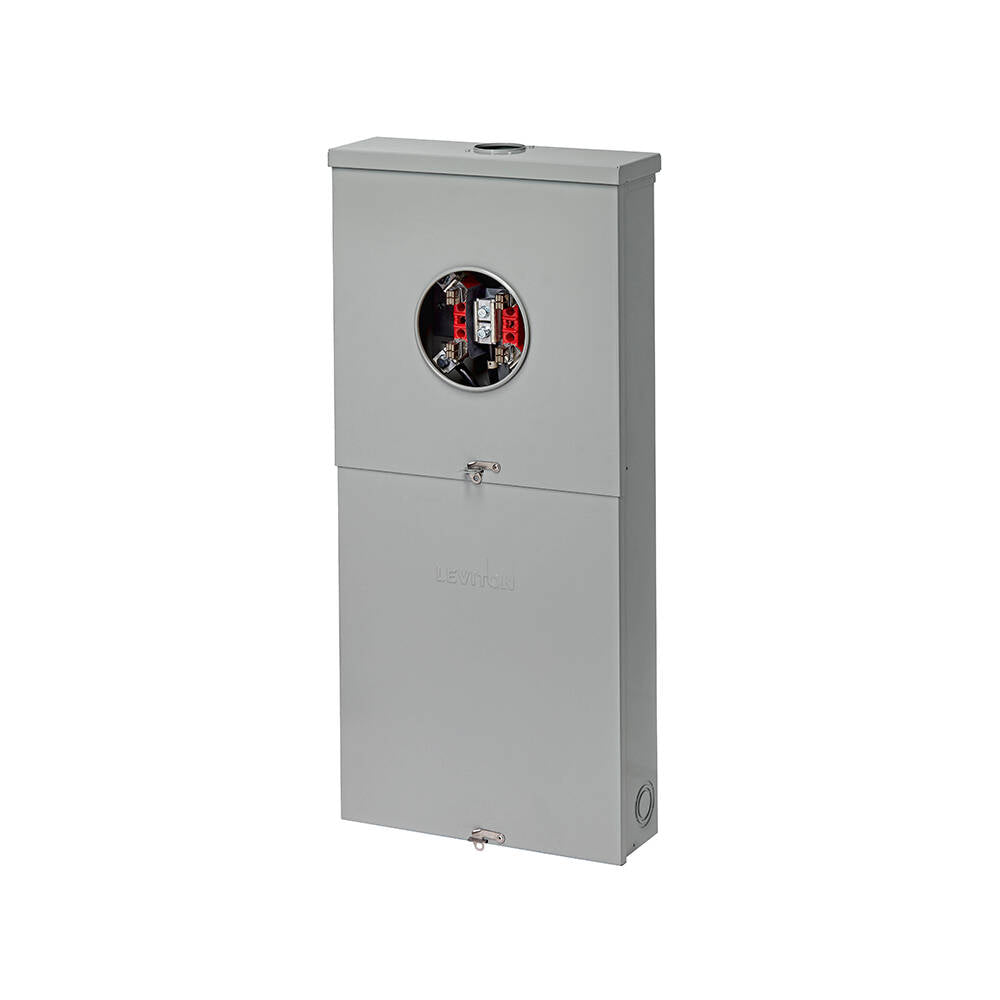

Outdoor Meter Main Combo with 200A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated. Includes Enclosure, Ring-Type Door, and Feed-Thru Lugs. Designed for use in Canada.
Leviton NEMA 3R Surface Mount Meter-Main with Main Breaker 8SP 200A Features:
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- ORGANIZED – Notches stamped into the enclosure for cable ties promote secure and neat wiring.
Leviton NEMA 3R Surface Mount Meter-Main with Main Breaker 8SP 200A Specifications:
- Product Features
- Color: Gray
- Warranty: 10-Year Limited
- Electric Specifications:
- Amperage: 200 A
- Short Circuit Current Rating: 22 KA
- Spaces / Circuits: 8 / 8
- Type of Load Center: Meter Main
- Voltage: 120/240 VAC
- Mechanical Specifications:
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Dimensions: 36"" H x 16.6"" W x 5.2"" D
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 6 AWG – 350 MCM
- Weight: 56.8 lbs
- Environmental Specifications:
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40°C to 70°C
- Standards and Specifications:
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
Technical Specifications
Outdoor Meter Main Combo with 200A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated. Includes Enclosure, Ring-Type Door, and Feed-Thru Lugs. Designed for use in Canada.
Leviton NEMA 3R Surface Mount Meter-Main with Main Breaker 8SP 200A Features:
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- ORGANIZED – Notches stamped into the enclosure for cable ties promote secure and neat wiring.
Leviton NEMA 3R Surface Mount Meter-Main with Main Breaker 8SP 200A Specifications:
- Product Features
- Color: Gray
- Warranty: 10-Year Limited
- Electric Specifications:
- Amperage: 200 A
- Short Circuit Current Rating: 22 KA
- Spaces / Circuits: 8 / 8
- Type of Load Center: Meter Main
- Voltage: 120/240 VAC
- Mechanical Specifications:
- Busbar Material: Copper, Bright Tin-Plated
- Busbar Rating: 225A
- Dimensions: 36"" H x 16.6"" W x 5.2"" D
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 6 AWG – 350 MCM
- Weight: 56.8 lbs
- Environmental Specifications:
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40°C to 70°C
- Standards and Specifications:
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
