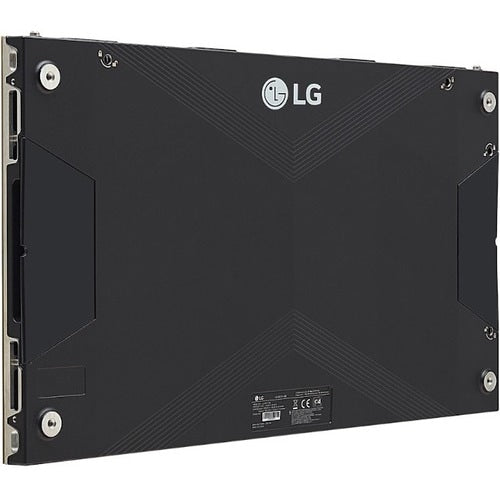

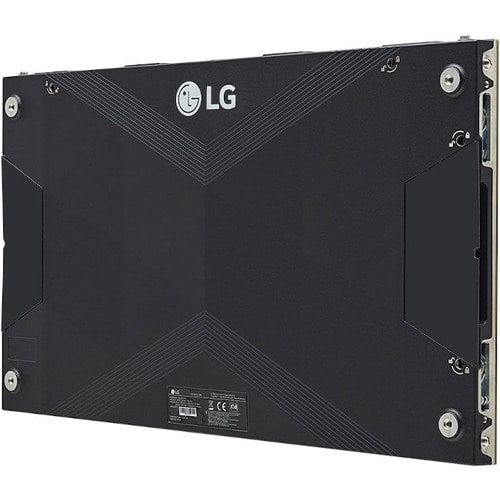

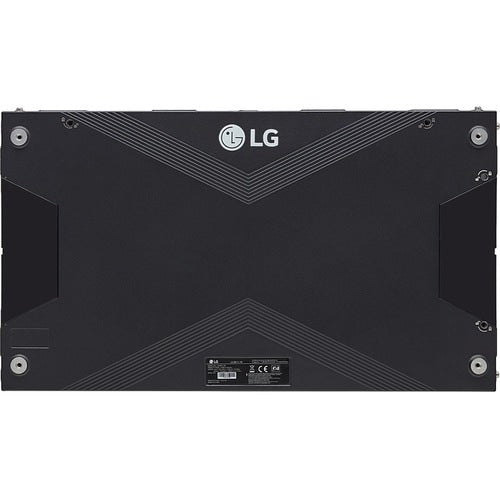

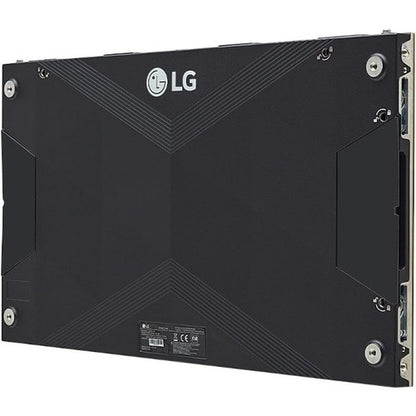

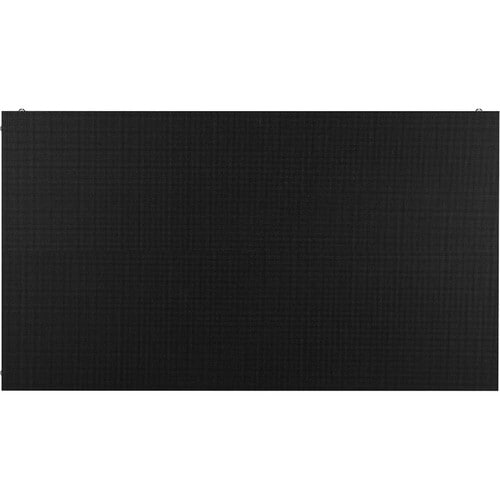

LG Ultra Slim LSCB012-RK Digital Signage Display
LG Ultra Slim LSCB012-RK Digital Signage Display

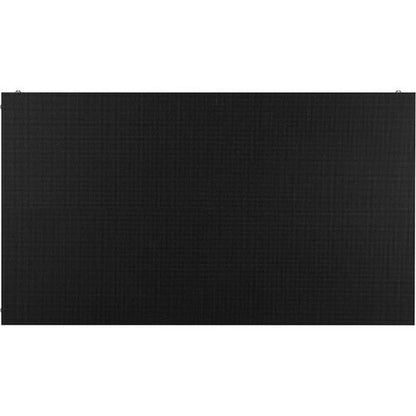

LG Ultra Slim LSCB012-RK Digital Signage Display - LCD - High Dynamic Range (HDR) - 480 x 270 - 16:9 - LED - 800 cd/m²
VPN:LSCB012-RK.AUSQ SKU:AC792301 UPC: BR9224
Pixel Pitch: 1.25mmBrightness: 800cd/m²Ultra Slim Depth
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details











Recently Viewed
LG Ultra Slim LSCB012-RK Digital Signage Display
Product information summary

About the product

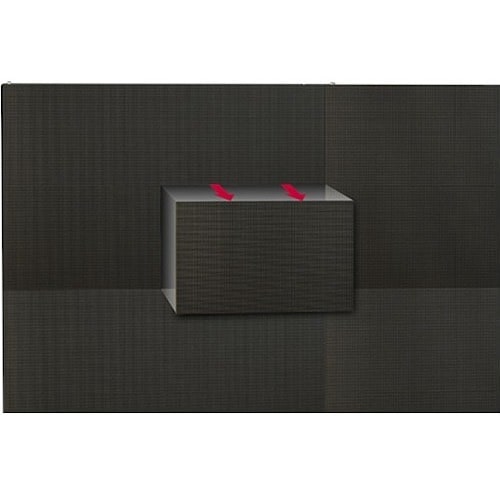

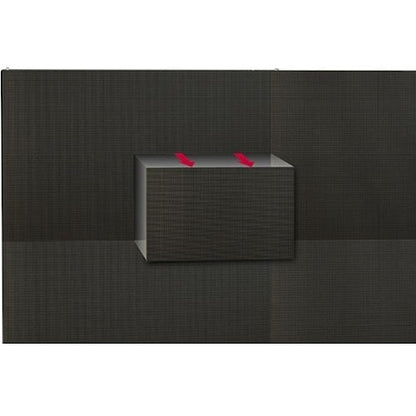

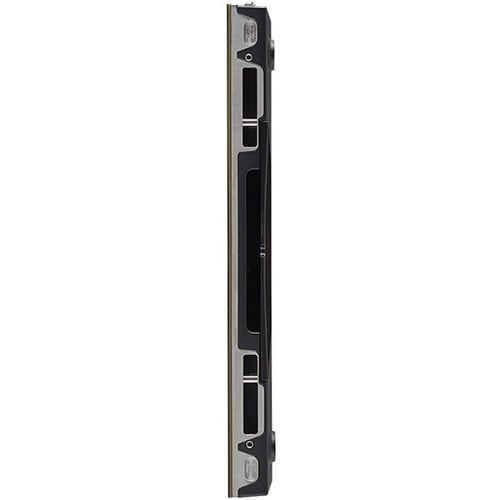

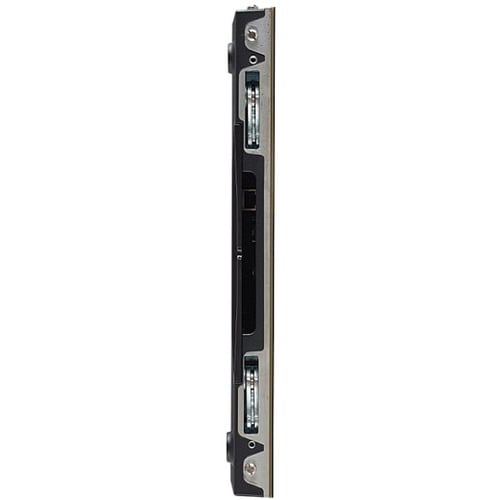

Easy & Seamless InstallationThe LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.16:9 FHD/UHD ConfigurationEach cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content without additional cost and time for editing.EMC Class B Certified & Fire Resistant DesignThe LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.Ultra Slim DepthIts ultra-slim design with 41 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings

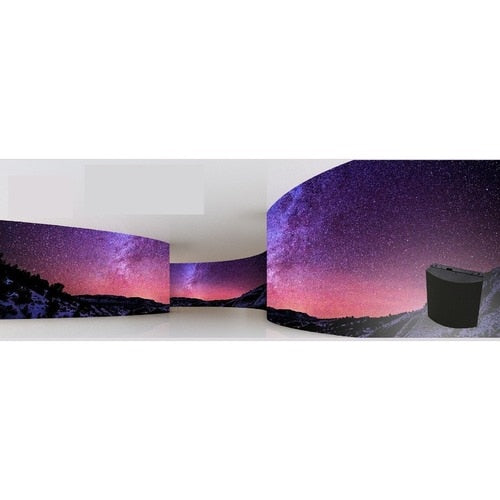

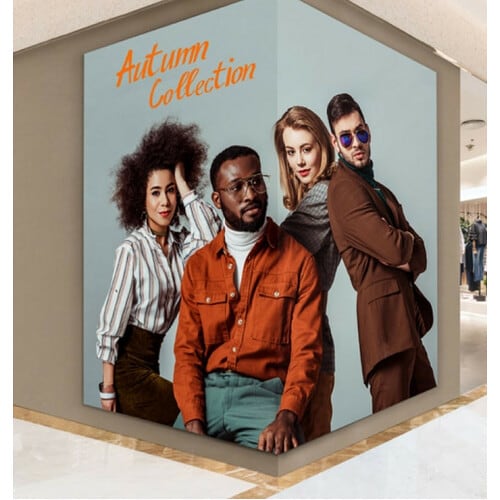

90° Corner Design AvailableIf you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.Compatibility with LG Software SolutionsWhen connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.Flexible Curve LED DisplayThe LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm*. This greatly enhances the design's flexibility, which allows users to freely create the curved screen as they want.Pixel Pitch: 1.25mmBrightness: 800cd/m²Ultra Slim DepthEMC Class B, BS 476 Part7 Class 1
Technical Specifications
Miscellaneous | |
Application/Usage | Business |
Technical Information | |
Ingress Protection (IP) Rating | IP30 |
Environmental Conditions | |
Minimum Operating Temperature | 14°F (-10°C) |
Maximum Operating Temperature | 113°F (45°C) |
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Video | |
Brightness | 800 cd/m² |
Color Depth | 14-bit |
Native Contrast Ratio | 5,000:1 |
Physical Characteristics | |
Weight (Approximate) | 11.68 lb (5300 g) |
Height | 13.29" (337.50 mm) |
Width | 23.62" (600 mm) |
Depth | 1.34" (34 mm) |
Housing Material | Die-cast Aluminum |
General Information | |
Product Type | Digital Signage Display |
Manufacturer Part Number | LSCB012-RK.AUSQ |
Manufacturer Website Address | http://www.lg.com |
Manufacturer | LG Electronics |
Product Model | LSCB012-RK |
Product Name | Ultra Slim LSCB012-RK Digital Signage Display |
Product Line | Ultra Slim |
Product Series | LSCB |
Brand Name | LG |
Display & Graphics | |
Aspect Ratio | 16:9 |
Pixel Pitch | 49.21 mil (1.25 mm) |
Display Resolution | 480 x 270 |
Display Screen Type | LCD |
Backlight Technology | LED |
Curved Screen | Yes |
High Dynamic Range (HDR) | Yes |
High Dynamic Range (HDR) Type | HDR10 Pro |
HDR10 | |
Number of Modules Per Cabinet | 2x2 |
Module Resolution | 240 × 135 |
Maximum LED Life | 11.4 Year |
