Lg Electronics
BACKMAN VIDCOM ONLY DVLED 3YR WARR
BACKMAN VIDCOM ONLY DVLED 3YR WARR
VPNLSCB018-RK SKU:359693DIN UPC:
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details











Recently Viewed
BACKMAN VIDCOM ONLY DVLED 3YR WARR
Product information summary

About the product
LSCB Direct View LED Customizable to fit your needs

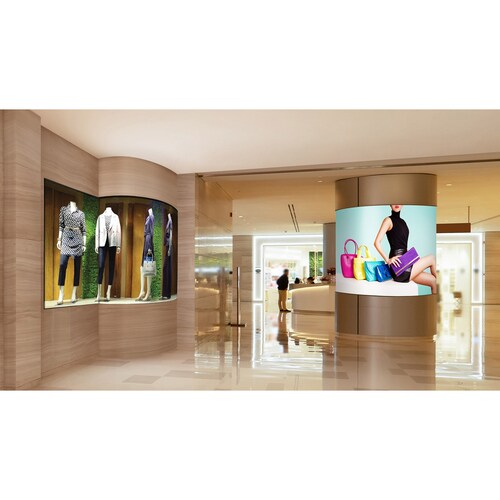

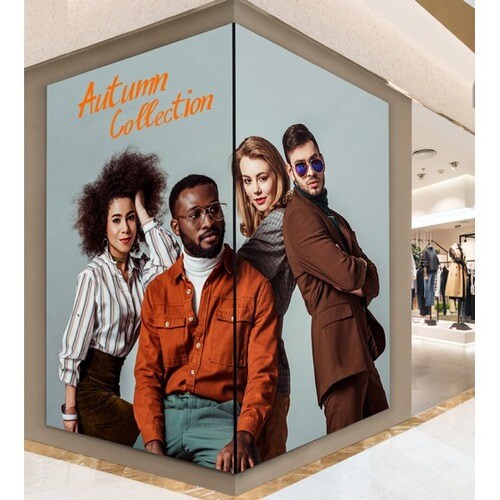

For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations.

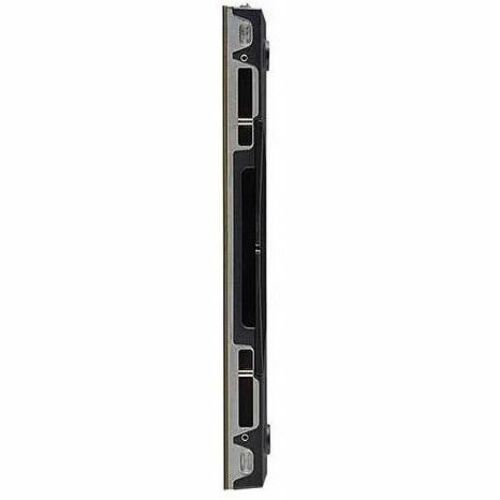

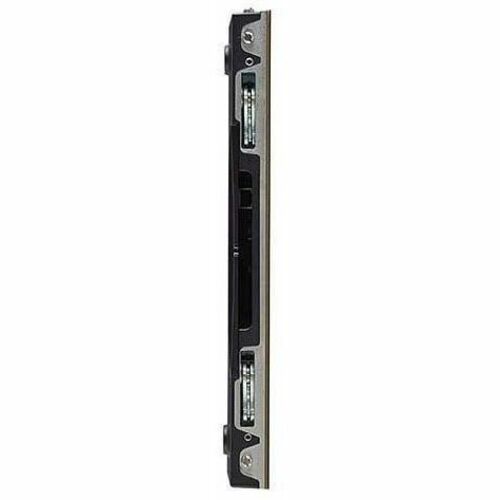

Ultra Slim Depth

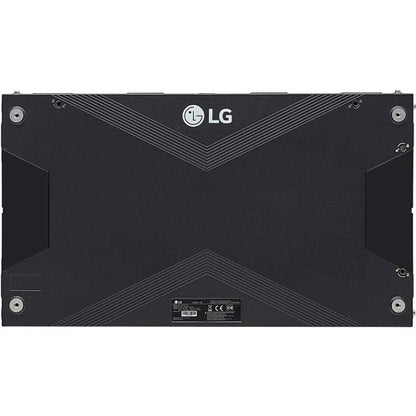

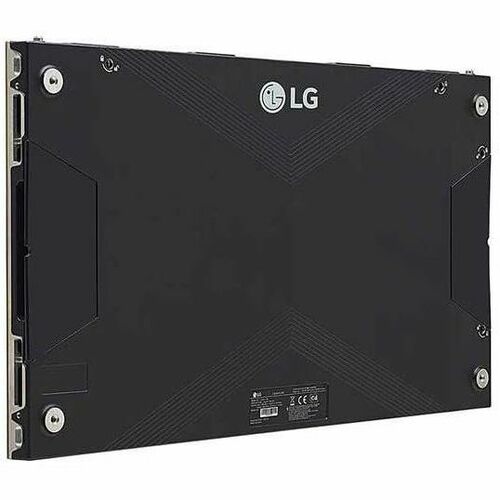

The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.

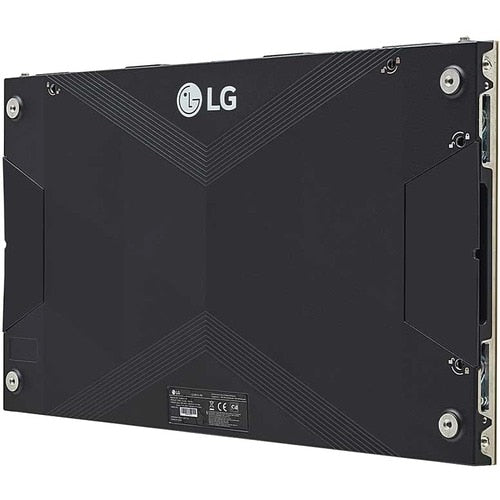

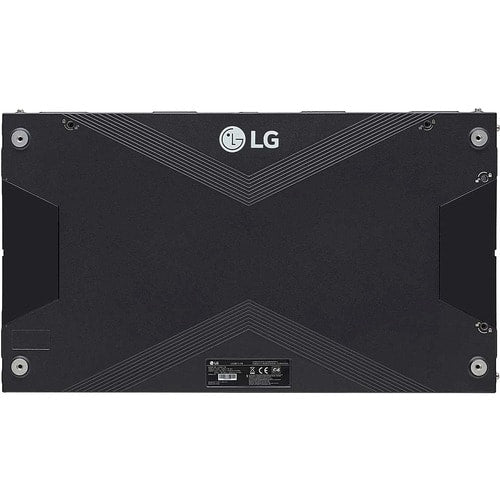

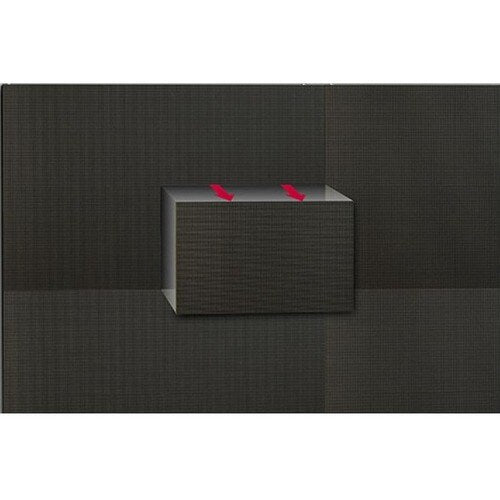

Front and Rear Installation and Maintenance
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
Compatibility with LG Software Solution
Powered by LG's high-performance system controller, the LSCB series is compatible with LG software solutions, including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
Technical Specifications
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description | |
Input Voltage | 230 V AC |
120 V AC | |
Video | |
Brightness | 800 cd/m² |
Color Depth | 14-bit |
Dynamic Contrast Ratio | 5,000:1 |
Display & Graphics | |
Pixel Pitch | 73.82 mil (1.88 mm) |
Display Resolution | 320 x 180 |
Number of Screens | 4 |
Display Screen Type | LCD |
Backlight Technology | LED |
Video Wall Configuration | 2x2 |
Physical Characteristics | |
Weight (Approximate) | 5.22 kg |
Height | 13.30" (337.82 mm) |
Width | 23.60" (599.44 mm) |
Depth | 1.30" (33.02 mm) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Digital Signage Display |
Manufacturer Part Number | LSCB018-RK |
Manufacturer Website Address | http://www.lg.com |
Manufacturer | LG Electronics |
Product Model | LSCB018-RK |
Product Name | LSCB018-RK Digital Signage Display |
Product Series | LSCB |
Brand Name | LG |
