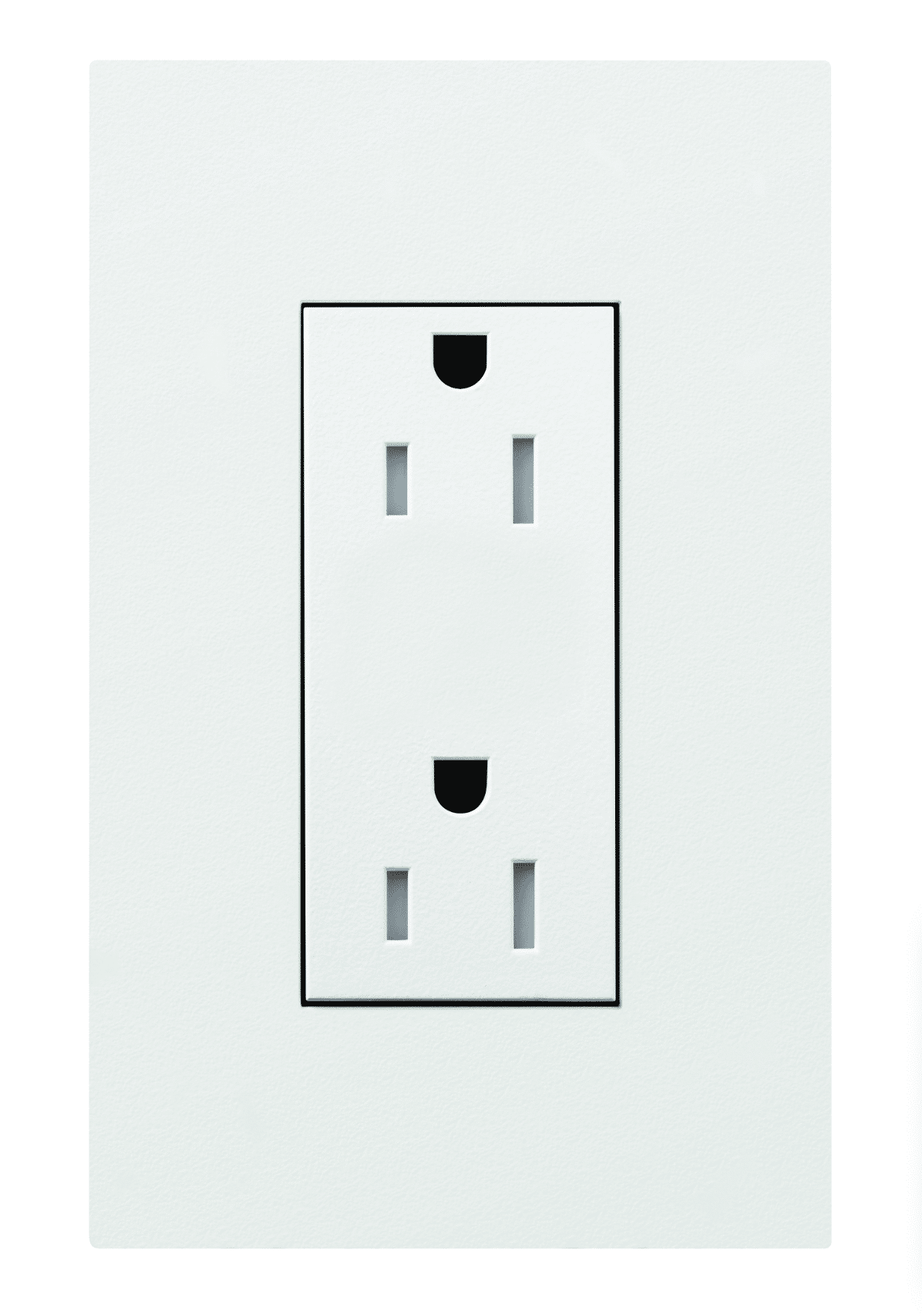

Lutron Duplex 15A Receptacle, White Overview
New Architectural accessories provide a clean, consistent aesthetic by allowing accessories to be added to the Palladium and GRAFIK T product lines.
Lutron Duplex 15A Receptacle Features
- Able to be ganged with Palladium keypads and GRAFIK T controls.
- Faceplates are available in a variety of colors and finishes.
- Plastic receptacles are used with all colors and finishes.
- Tamper-resistant.
- Side or back wire installation capable.
- 125 V~ only (U.S. style wall box).
- Compatible with Lutron New Architectural faceplates only.
Lutron Duplex 15A Receptacle Specifications
Regulatory Approvals
- Lutron Quality Systems is registered to ISO 9001:2015.
- cULus listed devices
- NOM Certified
- All receptacles comply with UL498
- USB receptacle complies with UL1310
Ratings
- Duplex receptacle
- – 15 A 125 V~ 60 Hz
- – 20 A 125 V~ 60 Hz
- – Capable of being wired in a split feed installation
- – Fork terminal capable
Terminals
- Each terminal accepts up to two 14 AWG to 10 AWG (1.5 mm2 to 6.0 mm2) wires.
- Side or back wire installation capable.
- Solid or stranded wires.
- Copper wires only.
Environment
- Ambient operating temperature: 32°F to 104°F (0°C to 40°C)
- Maximum 90% non-condensing relative humidity
- Indoor use only
Mounting
- Typical U.S. style wall box dimensions: 3.0 in (76 mm) H x 2.0 in (51 mm) W x 2.5 in (64 mm) D
- See Mounting Diagrams on page 11 for more details.
- When ganging receptacles with low-voltage keypads, the installation should be in accordance with all local and national codes. Separation from low-voltage wiring must be maintained.
Technical Specifications
Lutron Duplex 15A Receptacle, White Overview
New Architectural accessories provide a clean, consistent aesthetic by allowing accessories to be added to the Palladium and GRAFIK T product lines.
Lutron Duplex 15A Receptacle Features
- Able to be ganged with Palladium keypads and GRAFIK T controls.
- Faceplates are available in a variety of colors and finishes.
- Plastic receptacles are used with all colors and finishes.
- Tamper-resistant.
- Side or back wire installation capable.
- 125 V~ only (U.S. style wall box).
- Compatible with Lutron New Architectural faceplates only.
Lutron Duplex 15A Receptacle Specifications
Regulatory Approvals
- Lutron Quality Systems is registered to ISO 9001:2015.
- cULus listed devices
- NOM Certified
- All receptacles comply with UL498
- USB receptacle complies with UL1310
Ratings
- Duplex receptacle
- – 15 A 125 V~ 60 Hz
- – 20 A 125 V~ 60 Hz
- – Capable of being wired in a split feed installation
- – Fork terminal capable
Terminals
- Each terminal accepts up to two 14 AWG to 10 AWG (1.5 mm2 to 6.0 mm2) wires.
- Side or back wire installation capable.
- Solid or stranded wires.
- Copper wires only.
Environment
- Ambient operating temperature: 32°F to 104°F (0°C to 40°C)
- Maximum 90% non-condensing relative humidity
- Indoor use only
Mounting
- Typical U.S. style wall box dimensions: 3.0 in (76 mm) H x 2.0 in (51 mm) W x 2.5 in (64 mm) D
- See Mounting Diagrams on page 11 for more details.
- When ganging receptacles with low-voltage keypads, the installation should be in accordance with all local and national codes. Separation from low-voltage wiring must be maintained.
