About the product
The Vertiv Avocent LongView LV4010P KVM extender is part of the Avocent high-performance family of KVM extension solution products. The LV4010P KVM extender allows users to distribute a single-link DVI video stream, USB 2.0, and analog audio over a single CATx cable. The LV4010 transmits and delivers perfect 1080p digital video at distances over 164 feet (50 meters) and resolutions up to 164 MPixels per second (such as 1920x1200 @ 60Hz or 3840x2400 @ 17Hz). Locate critical computing hardware in a secure and temperature-controlled environment, away from the user's workstation environment, while maintaining the same user experience. In operation, the LongView 4010 is truly plug and play, delivering full Extended Display ID (EDID) data from computer to screen ensuring your hardware is always setup to deliver optimal display performance.
- KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments
- USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.
- PURCHASE INCLUDES: Includes 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
- PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops
- LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.
Technical Specifications
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United Kingdom |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Power Description | |
| Input Voltage | 240 V AC |
| 120 V AC | |
| Power Consumption | 12.50 W |
| Input Voltage Range | 100V AC to 240V AC |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Number of USB Ports | 4 |
| Digital Audio/Video | Yes |
| Number of DVI Ports | 1 |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1000 ft (304800 mm) |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Device Type | High Performance KVM |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | LV4010P-001 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | LV4010 |
| Product Name | LV4010 Single VGA KVM Extender |
| Product Line | LV |
| Product Series | 4000 |
| Brand Name | Vertiv AVOCENT |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 3U |

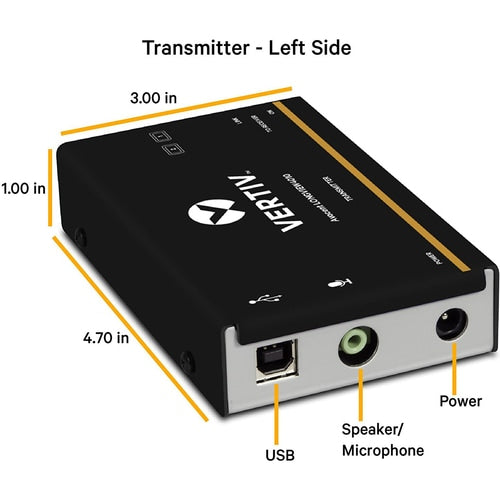

| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 4.70" (119.38 mm) |
| Transmitter Depth | 3" (76.20 mm) |

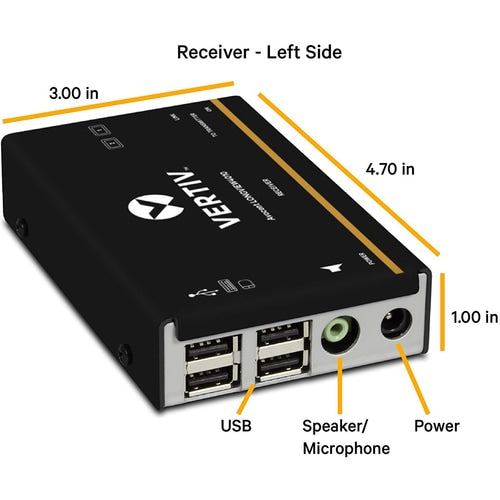

| Receiver Height | 1" (25.40 mm) |
| Receiver Width | 4.70" (119.38 mm) |
| Receiver Depth | 3" (76.20 mm) |
| Transmitter Weight (Approximate) | 11.20 oz (317.51 g) |
| Receiver Weight (Approximate) | 11.20 oz (317.51 g) |
