About the product

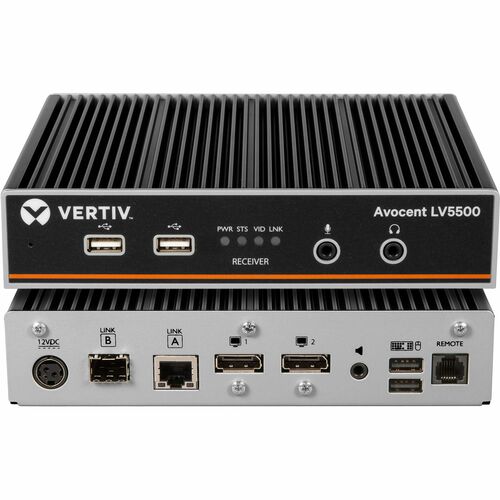

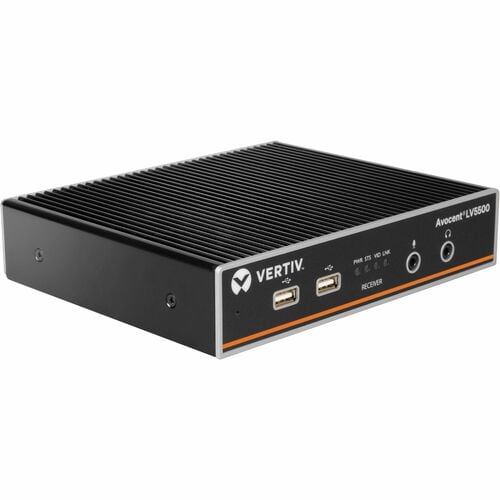

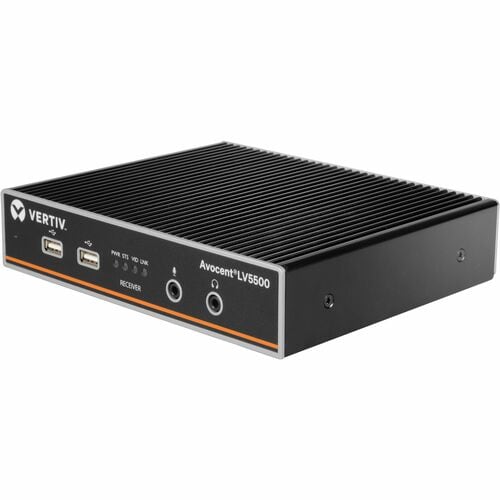

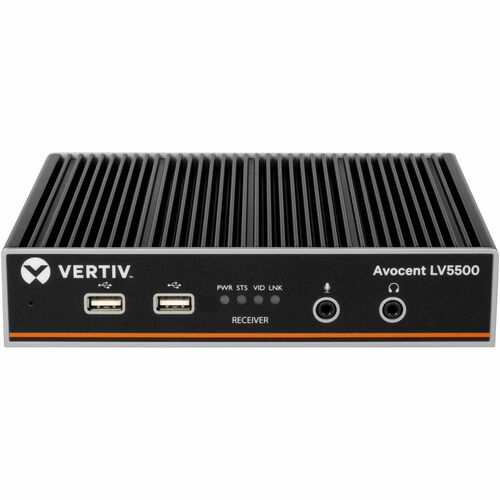

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.
- Delivers seamless KVM control and 4k video transmission.
- Allows for greater distance with the Fiber Option.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Faster throughput with updated USB.
Technical Specifications
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphic Mode | 4K |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Consumption | 18 W |
| Input Voltage Range | 100-240 VAC |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 13123.36 ft (4000000 mm) |
| KVM Technology | Digital |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Device Type | High Performance KVM |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Receiver Height | 1.54" (39.12 mm) |
| Receiver Width | 7.32" (185.93 mm) |
| Receiver Depth | 5.83" (148.08 mm) |
| Receiver Weight (Approximate) | 2.73 lb (1238.31 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | KVM Extender Receiver |
| Manufacturer Part Number | LV5500R-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | LV5500R |
| Product Name | LV5500 High-Performance KVM Extender | Receiver |
| Product Line | LongView |
| Product Series | 5000 |
| Brand Name | Vertiv AVOCENT |
| Miscellaneous | |

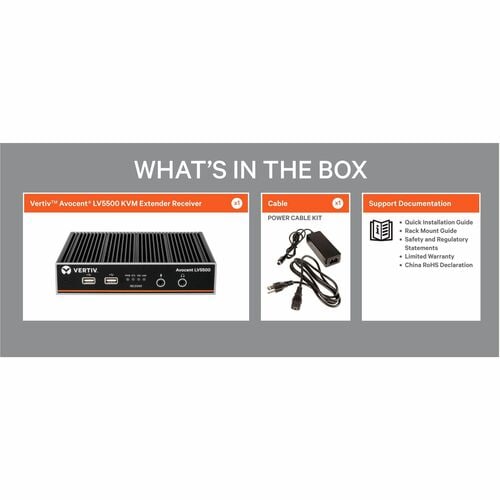

| Package Contents |
|
| Platform Supported | Linux |
| Mac | |
| PC | |
| Sun | |
| Unix | |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |

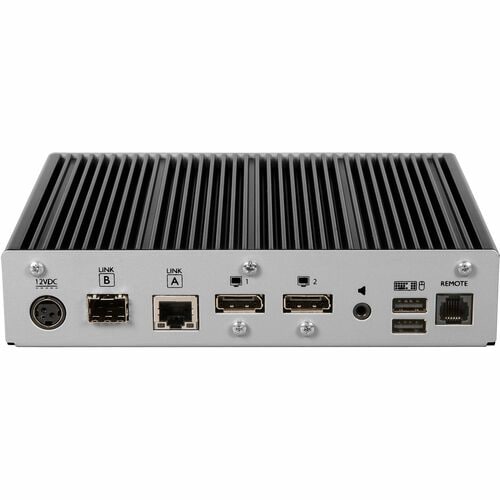

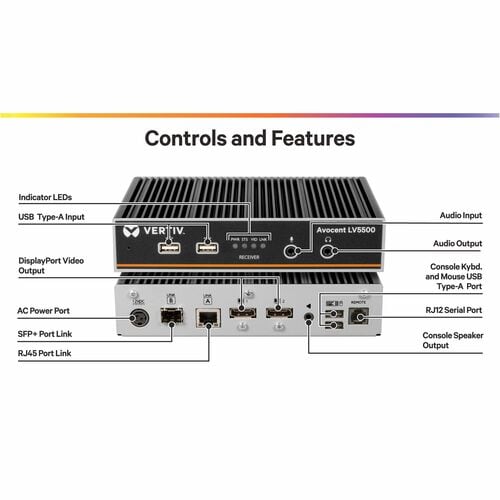

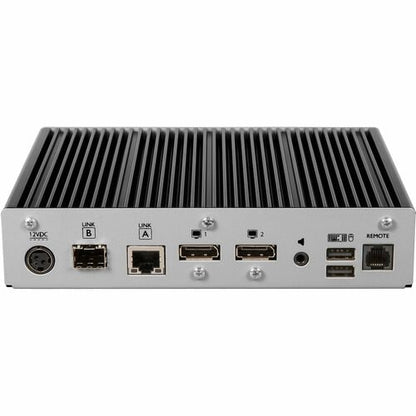

| Interfaces/Ports | |
| Microphone | Yes |
| USB | Yes |
| HDMI | No |
| Number of HDMI Ports | 0 |
| DVI | No |
| VGA | No |
| Headphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Proprietary Interface | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 0 |
| DMS-59 Port | No |
| Number of ST Ports | 0 |
| Number of VGA Ports | 0 |
| Digital Audio/Video | Yes |
| Number of DVI Ports | 0 |
