About the product

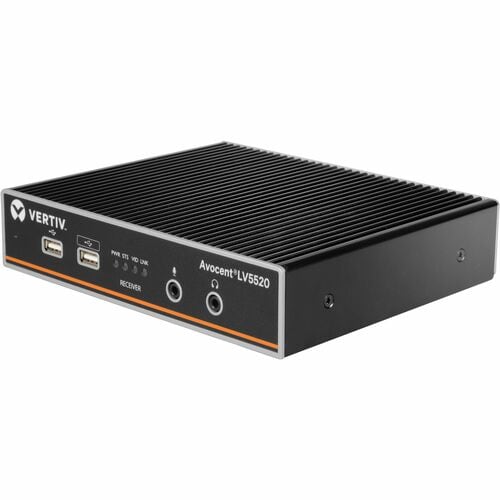

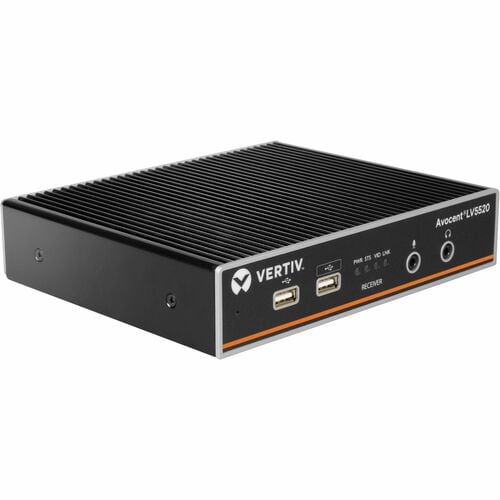

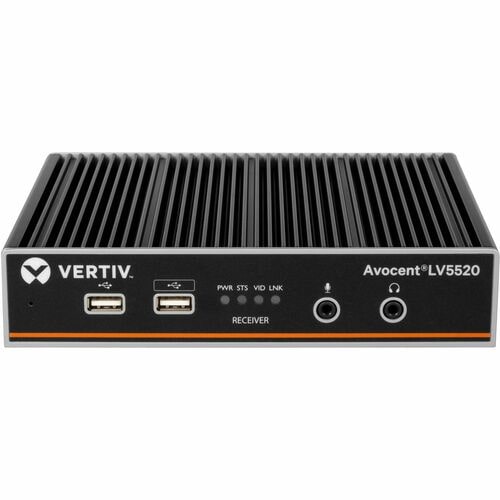

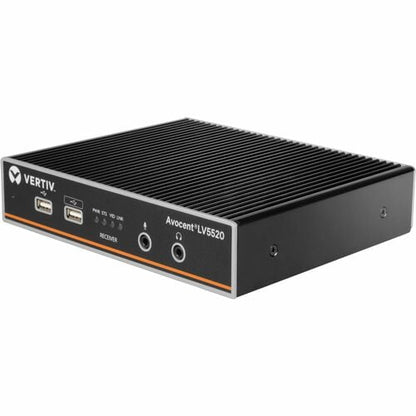

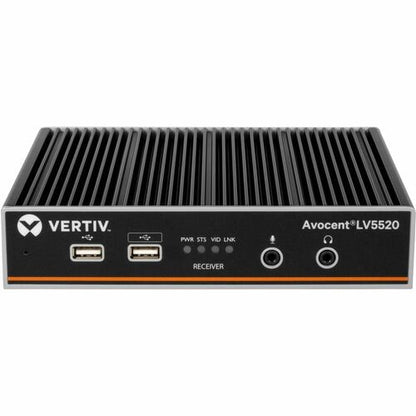

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.
- Delivers seamless KVM control and 4k video transmission.
- Allows for greater distance with the Fiber Option.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Faster throughput with updated USB.
Technical Specifications
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphic Mode | 4K |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Consumption | 18 W |
| Input Voltage Range | 100-240 VAC |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 13123.36 ft (4000000 mm) |
| KVM Technology | Digital |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Device Type | High Performance KVM |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Receiver Height | 1.54" (39.12 mm) |
| Receiver Width | 7.32" (185.93 mm) |
| Receiver Depth | 5.83" (148.08 mm) |
| Receiver Weight (Approximate) | 2.73 lb (1238.31 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | KVM Extender Receiver |
| Manufacturer Part Number | LV5520R-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | LV5520R |
| Product Name | LV5520 High-Performance KVM Extender | Receiver |
| Product Line | LongView |
| Product Series | 5000 |
| Brand Name | Vertiv AVOCENT |
| Miscellaneous | |

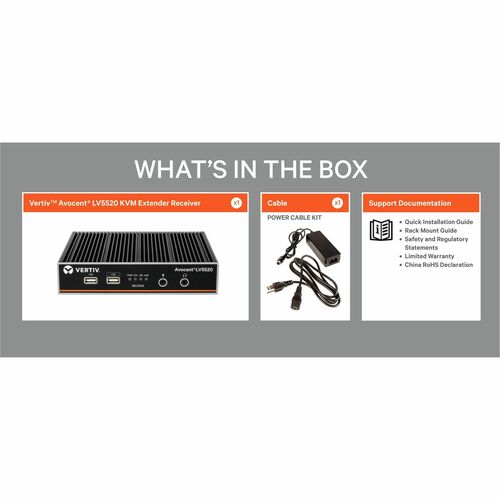

| Package Contents |
|
| Platform Supported | Unix |
| Sun | |
| PC | |
| Mac | |
| Linux | |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |

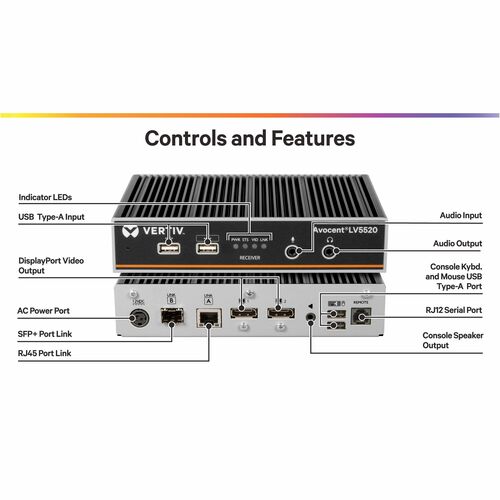

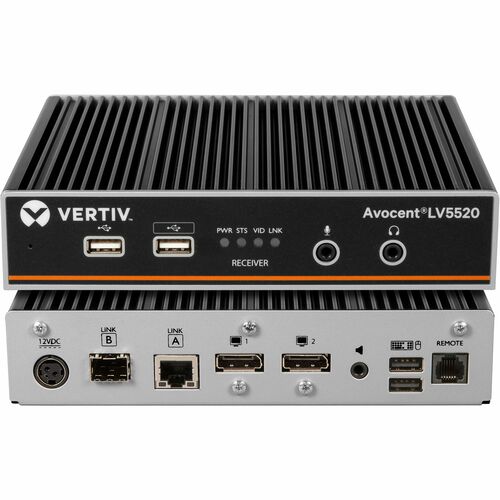

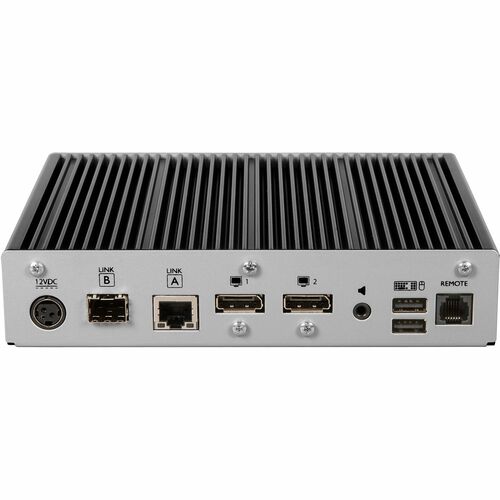

| Interfaces/Ports | |
| Microphone | Yes |
| USB | Yes |
| HDMI | No |
| Number of HDMI Ports | 0 |
| DVI | No |
| VGA | No |
| Headphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Proprietary Interface | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 0 |
| DMS-59 Port | No |
| Number of ST Ports | 0 |
| Number of VGA Ports | 0 |
| Digital Audio/Video | Yes |
| Number of DVI Ports | 0 |
