About the product
The Vertiv Avocent LongView 5520 Transmitter (LV5520T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5520T comes equipped with dependable performance, along with intelligent EDID management. Coupled with the Avocent LV5520R, the LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
- Delivers seamless KVM control and 4k video transmission.
- Allows for greater distance with the Fiber Option.
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
- Plug-and-play with no drivers or software to install, and no on-site configuration required.
- Faster throughput with updated USB.
Technical Specifications
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphic Mode | 4K |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Consumption | 18 W |
| Input Voltage Range | 100-240 VAC |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 13123.36 ft (4000000 mm) |
| KVM Technology | Digital |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Device Type | High Performance KVM |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Transmitter Height | 1.54" (39.12 mm) |
| Transmitter Width | 7.32" (185.93 mm) |
| Transmitter Depth | 5.83" (148.08 mm) |
| Transmitter Weight (Approximate) | 2.84 lb (1288.20 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | KVM Extender Receiver |
| Manufacturer Part Number | LV5520T-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | LV5520T |
| Product Name | LV5520 High-Performance KVM Extender | Transmitter |
| Product Line | LongView |
| Product Series | 5000 |
| Brand Name | Vertiv AVOCENT |
| Miscellaneous | |

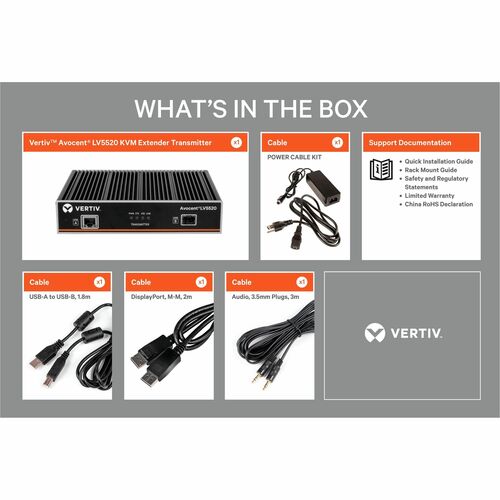

| Package Contents |
|
| Platform Supported | Mac |
| PC | |
| Sun | |
| Unix | |
| Linux | |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |

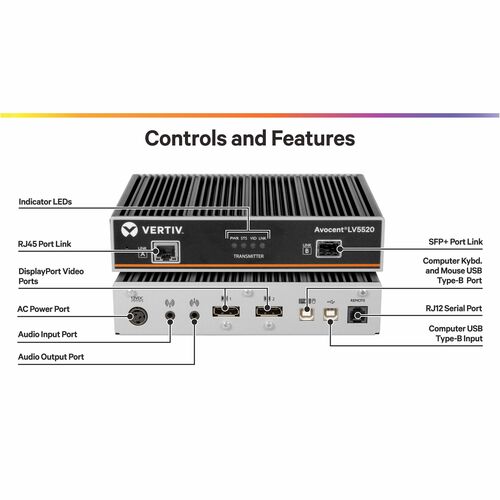

| Interfaces/Ports | |
| Microphone | Yes |
| USB | Yes |
| HDMI | No |
| Number of HDMI Ports | 0 |
| DVI | No |
| VGA | No |
| Headphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Proprietary Interface | No |
| PS/2 Port | No |
| Number of PS/2 Ports | 0 |
| DMS-59 Port | No |
| Number of ST Ports | 0 |
| Number of VGA Ports | 0 |
| Digital Audio/Video | Yes |
| Number of DVI Ports | 0 |
