Chief ConnexSys Landscape Video Wall Mount

Name: Chief ConnexSys Landscape Video Wall Mount
Brand: Chief
SKU: AC473083
Price: 1069.84 CAD
Availability: OutOfStock

$1,069.84 CAD

~~$1,198.22 CAD~~ $1,069.84 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Chief ConnexSys Landscape Video Wall Mount - For Displays 42-80" - Black - Chief ConnexSys Landscape Video Wall Mount - For Displays 42-80" - Black

VPN:LVSXU SKU:AC473083 UPC: 91721Z

Supports 80\" displaysSustains a maximum load capacity of 68.04 kg

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

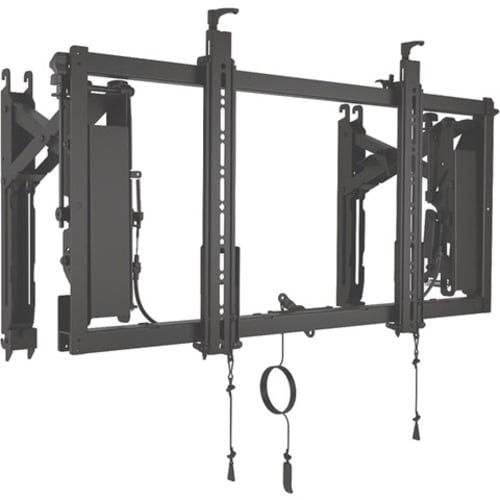

Chief ConnexSys Landscape Video Wall Mount

About the product

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements. The LVSXU ConnexSys Video Wall system landscape mount ships without rails

Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.Supports 80 displaysSustains a maximum load capacity of 68.04 kg

Technical Specifications

Miscellaneous
Additional Information	Hang units on a single strut channel for quick row leveling PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Both sides adjust independently, compensating for imperfections in the wall Walls can be out of alignment by up to 2" (horizontally) Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
Compatibility	1-5/8" Sizes of Channel Strut
Country of Origin	China
Physical Characteristics
Height	21.80" (553.72 mm)
Width	35.50" (901.70 mm)
Depth	4" (101.60 mm)
VESA Mount Compatible	Yes
Mounting Pattern	700 x 400
	200 x 100
Product Color	Black
General Information
Product Type	Wall Mount
Manufacturer Part Number	LVSXU
Manufacturer Website Address	http://www.legrand.com
Manufacturer	Legrand Group
Product Model	LVSXU
Product Name	ConnexSys Video Wall Landscape Mounting System without Rails
Product Line	ConnexSys
Product Series	LVS
Brand Name	Chief
Product Information
Device Supported	Flat Panel Display
Features	Adjustable Depth
	Tilt
	Pivot
	Lateral Adjustment
Maximum Load Capacity	150 lb (68038.86 g)
Minimum Screen Size Supported	42" (1066.80 mm)
Maximum Screen Size Supported	80" (2032 mm)
Maximum Adjustable Depth	13.40" (340.36 mm)
Number of Displays Supported	1
Height Adjustable	Yes
