About the product

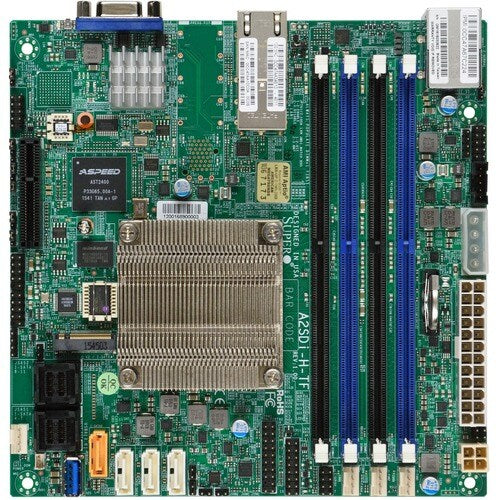

C3000 Series BOARDS (System-on-Chip)
Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Technical Specifications
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Processor & Chipset | |
| Processor Socket | Socket BGA-1310 |
| Video | |
| Graphics Controller Model | AST2400 |
| Onboard Video | On-board Video Chipset |
| I/O Expansions | |
| Number of PCI Express x4 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Integrated Processor | |
| Integrated Processor Type | Atom |
| Integrated Processor Model | C3758 |
| Integrated Processor Core | Octa-core (8 Core) |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of USB Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Chassis:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Onboard Interfaces | |
| Number of SATA Interfaces | 12 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.0 Ports | 1 |
| Number of M.2 Interfaces | 1 |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-A2SDI-H-TF-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | A2SDi-H-TF |
| Product Name | A2SDi-H-TF Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 1600 MHz |
| 1866 MHz | |
| 2400 MHz | |
| 2133 MHz |
