About the product
Xeon® E5 Family BOARDS / Socket R3 (LGA 2011)
Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
Introducing Supermicro's latest generation of dual processor motherboard technology based on Intel's E5-2600 v3 Haswell processor. Supermicro's X10 motherboards are specifically designed to meet the demanding needs of today's complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- With 2 USB 2.0 ports, transfer several documents without error
- Supported 0 RAID levels provide data reliability and fault tolerance
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
Technical Specifications
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Miscellaneous | |
| Compatibility | Supermicro SuperChassis 1U Chassis:
|
| Certifications & Standards | ACPI 4.0 |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Video | |
| Graphics Controller Model | AST2400 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Onboard Video | On-board Video Chipset |
| I/O Controller | |
| RAID Levels | 5 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of PCI Express x8 Slots | 5 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express 2.0 | |
| Total Number of PCI Express Slots | 6 |
| Total Number of Expansion Slots | 6 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA 2011-v3 |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X10SRI-F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |

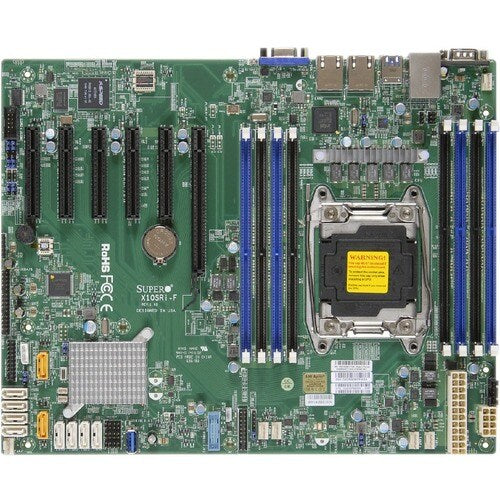

| Product Model | X10SRi-F |
| Product Name | X10SRi-F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-1600/PC4-12800 |
| DDR4-1866/PC4-14900 | |
| DDR4-2133/PC4-17000 | |
| Number of Memory Slots | 8 |
| Memory Form Factor | RDIMM |
| LRDIMM | |
| DIMM | |
| Memory Speed Supported | 1866 MHz |
| 1600 MHz | |
| 2133 MHz |
