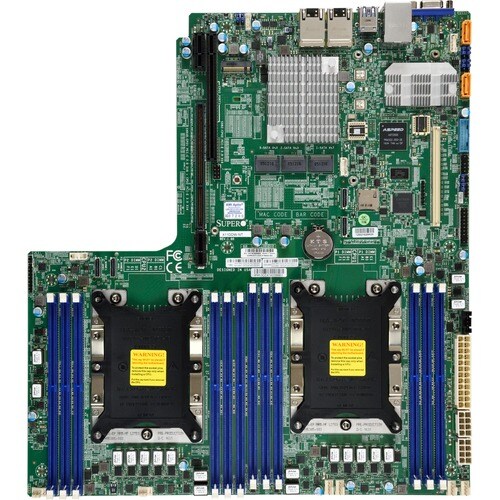

DP Xeon® Motherboards - Socket P (LGA 3647)
BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)
Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.
- Proprietary Form Factor style to support numerous features for constructing a reliable computing system
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 10 RAID levels provide data reliability and fault tolerance
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
Technical Specifications
| Audio | |
| Audio Channels | 7.1 |
| Miscellaneous | |
| Compatibility | SuperServer:
Chassis:
|
| Network & Communication | |
| 10Gigabit Ethernet | Yes |
| Video | |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| Interfaces/Ports | |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Proprietary Form Factor |
| Width | 13.40" (340.36 mm) |
| Depth | 12.30" (312.42 mm) |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x32 Slots | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 14 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 3.0 Ports | 2 |
| Number of M.2 Interfaces | 1 |
| Number of NVMe Ports | 4 |
| Processor & Chipset | |
| Processor Supported | Xeon |
| Total Processor Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| I/O Controller | |
| RAID Levels | 1 |
| 10 | |
| 5 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11DDW-NT-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11DDW-NT |
| Product Name | X11DDW-NT Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
| Memory | |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 12 |
| Memory Form Factor | LRDIMM |
| RDIMM | |
| DIMM | |
| Memory Speed Supported | 2133 MHz |
| 2666 MHz | |
| 2400 MHz |
