About the product

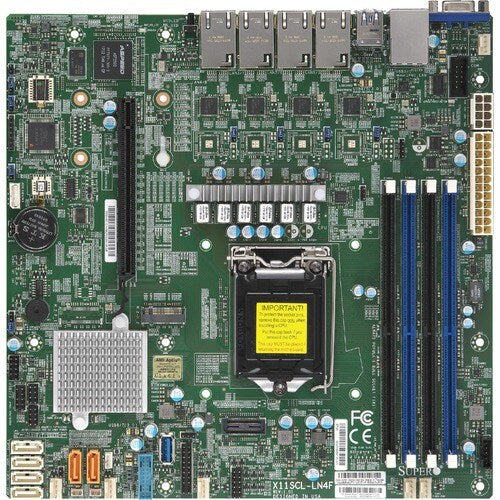

Xeon® E-2100 Boards / Socket H4 (LGA 1151)
The new Supermicro Building Block Solutions® for the Intel® Xeon® E-2100 series include new server-class motherboards offering a wide range of high performance, network appliance and embedded/IoT applications.
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
- With the compatible Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
Technical Specifications
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro Chassis:
|
| Video | |
| Graphics Controller Model | AST2500 |
| Onboard Video | On-board Video Chipset |
| I/O Expansions | |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.1 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 3.1 Ports | 3 |
| I/O Controller | |
| RAID Levels | 0 |
| 1 | |
| 10 | |
| 5 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 2133 MHz |
| 2400 MHz | |
| 2666 MHz | |
| Processor & Chipset | |
| Processor Supported | Core i3 |
| Xeon | |
| Pentium | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Chipset Manufacturer | Intel |
| Chipset Model | C242 |
| General Information | |
| Product Type | Server Motherboard |
| Manufacturer Part Number | MBD-X11SCL-LN4F-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | X11SCL-LN4F |
| Product Name | X11SCL-LN4F Server Motherboard |
| Package Type | Retail |
| Brand Name | Supermicro |
