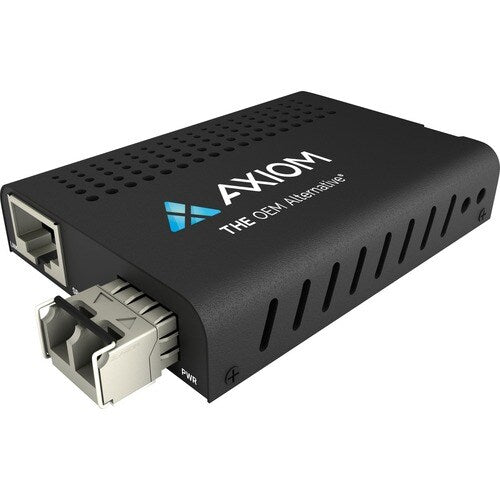

Axiom Memory Axiom Transceiver/Media Converter - 1 x Network (RJ

Features

The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.

• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function

• Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
• With 1000Base-SX technology get up to 1000Mbps data transfer rate over twisted pair cable
• With Optical Fiber cable, get the desired data transfer rate up to a required distance
