About the product

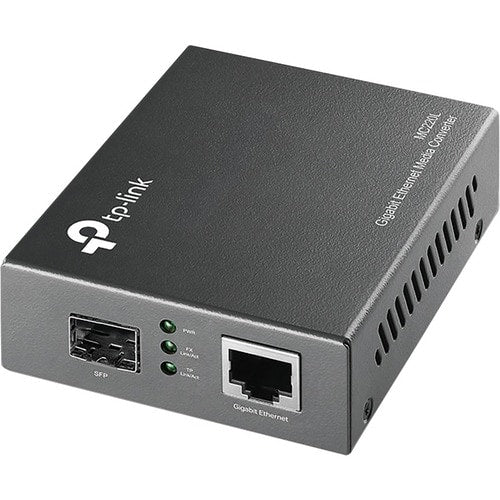

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

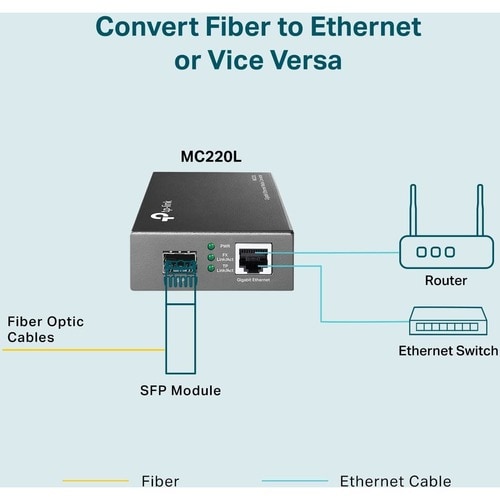

- Convert Fiber to Ethernet: Designed to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa.

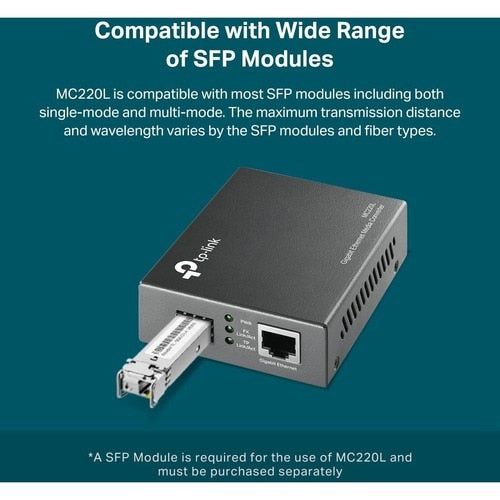

- Versatile Compatibility: Works with both single-mode and multi-mode fiber SFP modules and is fully compatible with 10/100/1000 Base-T Ethernet connections.
- Easy to Use: Plug and play with no software installation or configuration needed.

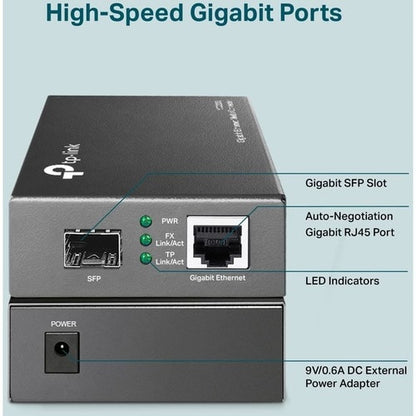

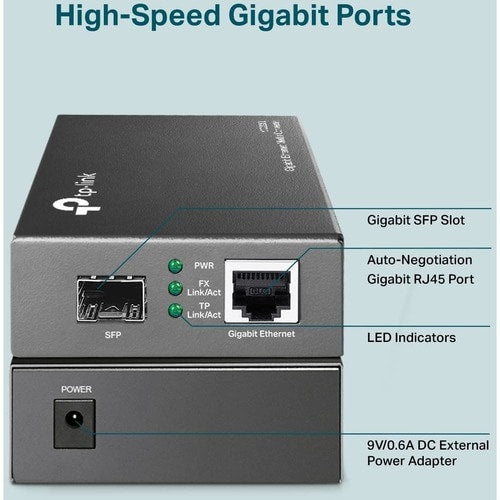

- Auto-Negotiation Gigabit Connection: Auto-negotiation RJ45 port supports Half-Duplex/Full-Duplex transfer mode and auto-MDI/MDIX.

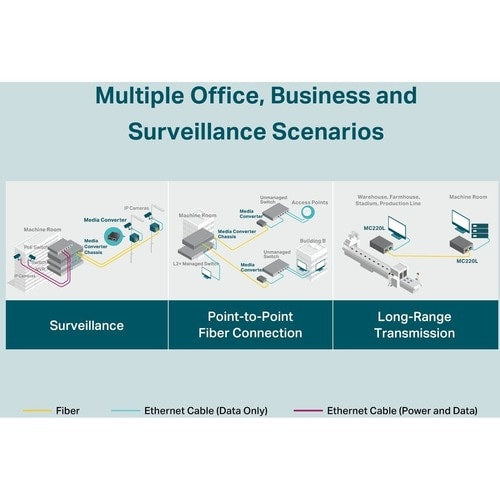

- Long-Range Transmission: When used with different types of SFP modules, the Hot-Swappable FX Port extends fiber distance up to 12.4miles (20km) for Single-Mode transmission and 1,800 feet (550m) for Multi-Mode transmission.
Technical Specifications
| Network & Communication | |
| Network Technology | 1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 1.70 W |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Miscellaneous | |
| Additional Information | FX Port Supports hot-swappable (LC/SC) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Form Factor | External |

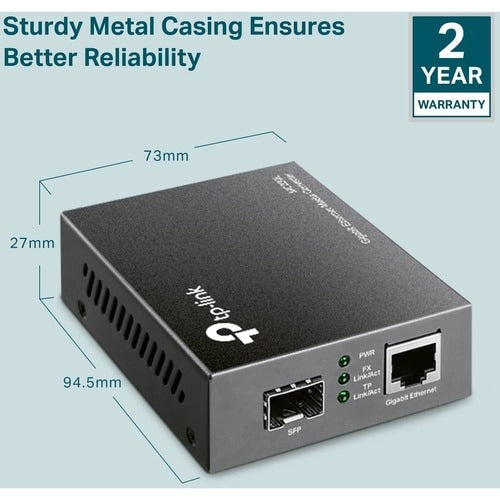

| Height | 1.10" (27.94 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 2.90" (73.66 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MC220L |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | MC220L |
| Product Name | MC220L Gigabit Ethernet Media Converter |
| Brand Name | TP-Link |
