About the product
Yealink MCore Pro is a Mini-PC specially designed for Yealink conference room systems. It uses the Intel Core 11th generation i5 processor with excellent performance, providing powerful data processing capabilities for conference room systems. MCore Pro has three built-in HDMI video output interfaces, which support the simultaneous display of three screens to provide a diverse video conferencing experience. Use the TPM 2.0 to keep your data secure. The automatic wake-up screen feature supported by CEC allows you to enjoy a convenient experience by one touch.
Technical Specifications
| Primary Information | |
| Product Description: | Yealink MVC Series MCoreKit-C5-MS - video conferencing kit |
| Device Type: | Video conferencing kit |

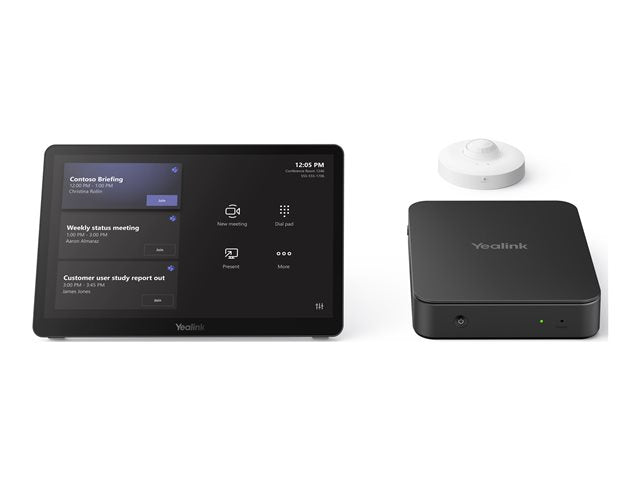

| Kit Content: | MTouch Plus touch panel, MCore Pro Mini-PC, RoomSensor |
| Display: | 11.6 IPS / 1920 x 1080 |
| Video Output: | 5K |
| Input Device: | 11.6 touchscreen (wireless, wired) |
| PC Configuration: | 11th Gen Core i5, 8GB RAM, 128GB SSD |
| Networking: | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Manufacturer Warranty: | 2-year warranty |
| General | |
| Device Type: | Video conferencing kit |
| Kit Content: | MTouch Plus touch panel, MCore Pro Mini-PC, RoomSensor |
| Dimensions & Weight Details: | Mini-PC - Width 6.6 in Depth 7.8 in Height 1.5 in Weight 24.3 oz ¦ Touch console - Weight 34.1 oz |
| Display | |
| Technology: | IPS |
| Diagonal Size: | 11.6 |
| Native Resolution: | 1920 x 1080 |
| Monitor Features: | Anti-glare, anti-fingerprint |
| Video Output | |
| Max External Resolution: | 5K |
| PC Configuration: | 11th Gen Core i5, 8GB RAM, 128GB SSD |
| Input Device | |
| Type: | 11.6 touchscreen |
| Connectivity Technology: | Wireless, wired |
| Features: | Automatic wake-up |
| Networking | |
| Type: | Network adapter |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features: | Wi-Fi Miracast ready, Apple AirPlay, Trusted Platform Module 2.0 (TPM 2.0), Google Cast |
| Expansion / Connectivity | |
| Interfaces: | 3 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x Yealink Mtouch port - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
