About the product

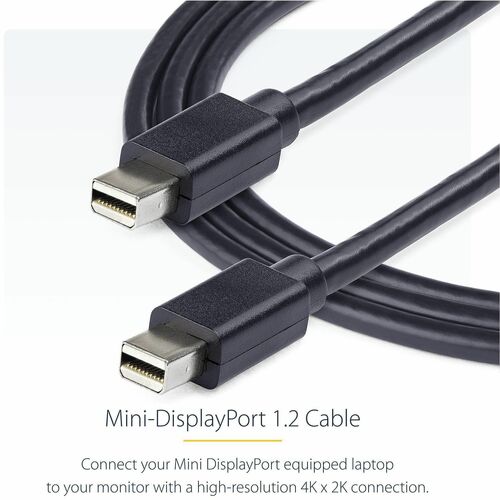

The MDISPLPORT3 3ft Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISPLPORT3 is backed by StarTech.com's Lifetime Support, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

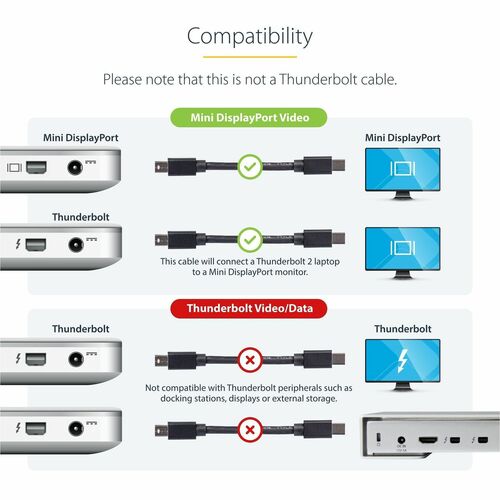

Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note:This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- MINI DISPLAYPORT 1.2 CABLE: This 3ft (91cm) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding

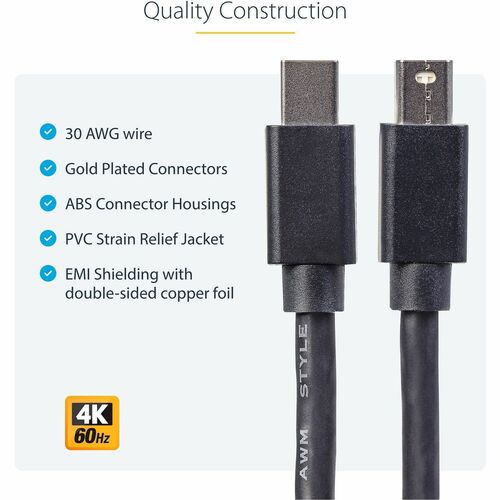

- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 3 feet (91 cm); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 30 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life
Technical Specifications
| Miscellaneous | |
| Certifications & Standards | CMG Rated |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.60 oz (45.36 g) |
| Weight (Approximate) | 1.20 oz (34 g) |
| Shipping Height | 0.39" (9.91 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | MDISPLPORT3 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | MDISPLPORT3 |
| Product Name | 3 ft Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k |
| Brand Name | StarTech.com |
| Packing | Bagged |
| Technical Information | |
| Cable Length | 3 ft (0.91 m) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Audio/Video Device |
| MacBook | |
| MacBook Air | |
| MacBook Pro | |
| Monitor | |
| Notebook | |
| Jacket Type | CMG |
| Features | Multi-Stream Transport (MST) Support |
| Fray Resistant | |
| Flexible | |
| EMI Protection | |
| Damage Resistant | |
| Strain Relief | |
| Cable Type | DisplayPort |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Gold | |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 3840 x 2400 |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
