About the product

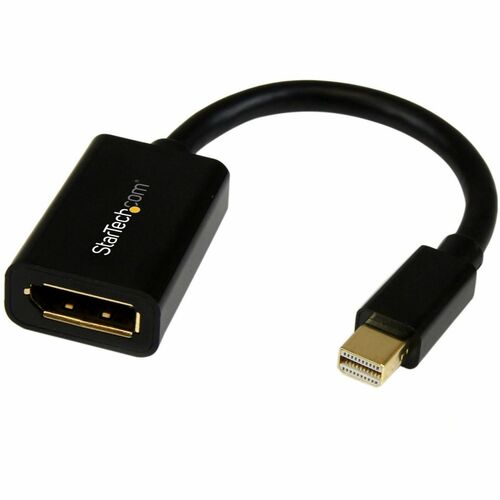

The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
More from the Manufacturer
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
- RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
- QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
- APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- SPECS: 6 inch (15 cm) | Black | DisplayPort v1.2 | Mini-DP Male to Standard DP Female adapter | 32 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 0.67 oz (19 g) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Cable Adapter |
| Manufacturer Part Number | MDP2DPMF6IN |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 6in Mini DisplayPort to DisplayPort Video Cable Adapter - M/F |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 6" (152.40 mm) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Notebook |
| Video Device | |
| Monitor | |
| Shielding | Yes |
| Features | Damage Resistant |
| Strain Relief | |
| Multi-Stream Transport (MST) Support | |
| Fray Resistant | |
| EMI Protection | |
| Flexible | |
| Cable Type | DisplayPort/Mini DisplayPort |

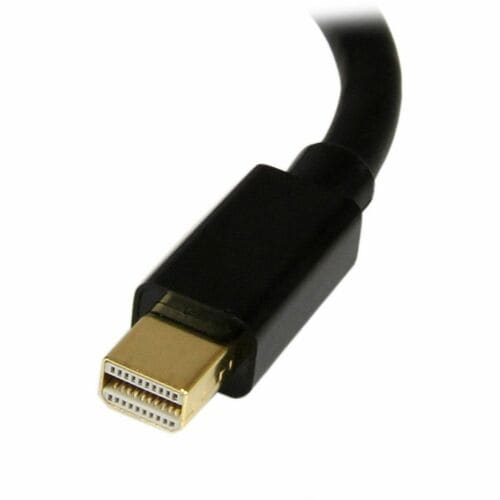

| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating | Gold |
| Nickel | |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2400 |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
