About the product

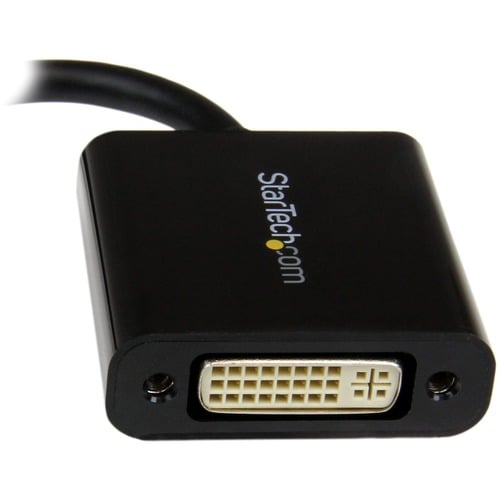

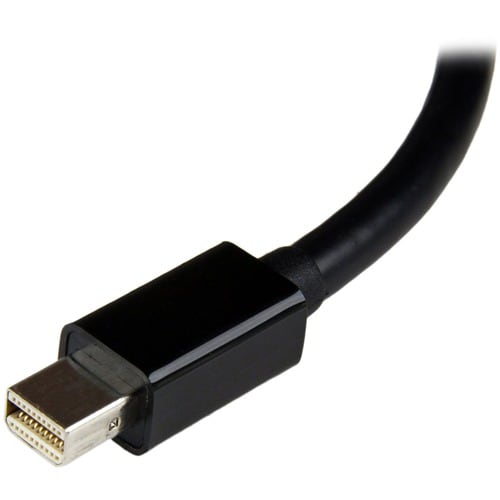

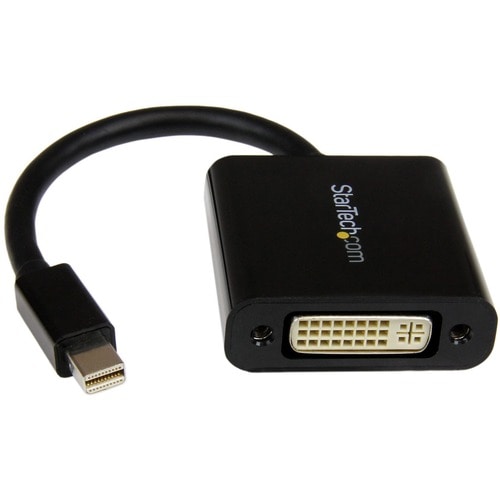

The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle | Compact design makes it ideal for travel | 5" (13cm) attached cable
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors | Tested with DVI cables up to 25ft | mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 0.93 oz (26.50 g) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | MDP2DVI3 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Displayport/DVI Video Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 5.1" (129.54 mm) |
| Features | Extended Display Identification Data (EDID) |
| Passive | |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DVI-I Digital Video - Female |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 29-pin DVI-I Digital Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
