About the product

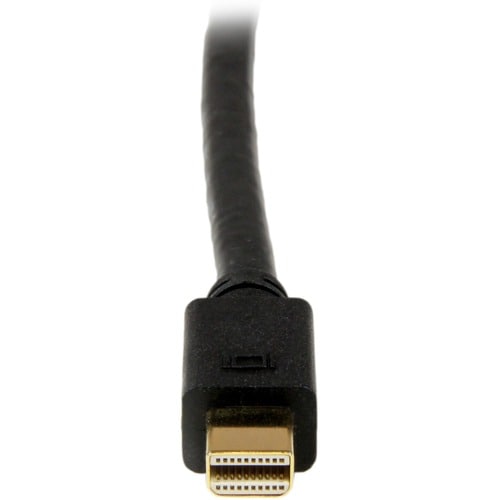

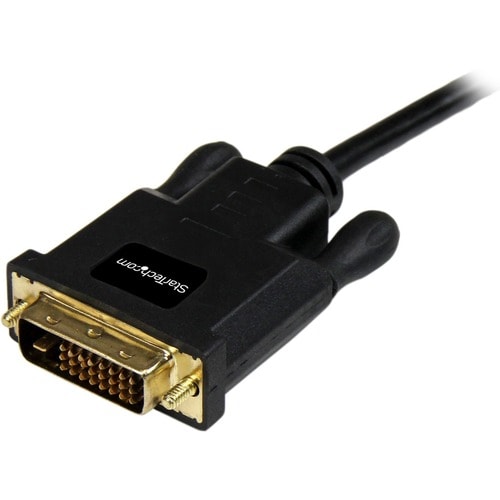

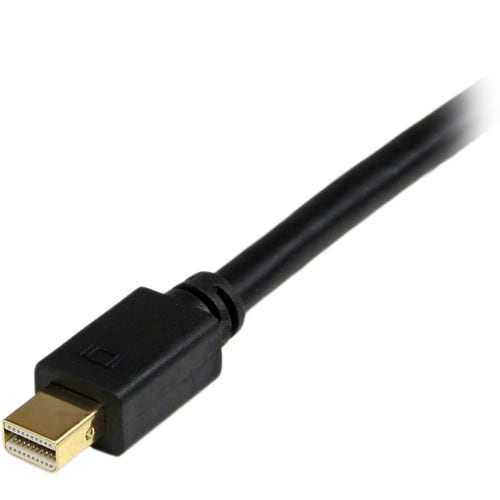

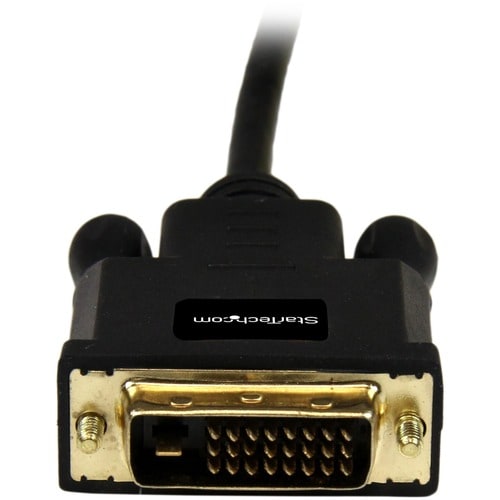

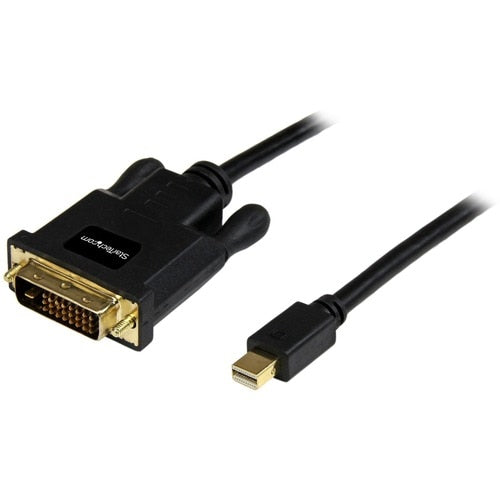

The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- MINI DISPLAYPORT TO DVI CABLE: 10ft (3m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display | 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable | Supports DVI screw locking cable to prevent accidental disconnection | mDP male to DVI male
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Technical Specifications
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 5.76 oz (163.29 g) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
| Shipping Height | 0.79" (20.07 mm) |
| Shipping Width | 6.30" (160.02 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable Adapter |
| Manufacturer Part Number | MDP2DVIMM10B |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Mini DisplayPort/DVI Video Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Conductor | Copper |
| Device Supported | Mac mini |
| MacBook | |
| MacBook Air | |
| Monitor | |
| Notebook | |
| Projector | |
| TV | |
| Ultrabook | |
| Video Device | |
| Features | Passive |
| Flexible | |
| Extended Display Identification Data (EDID) | |
| Cable Type | DVI/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D Digital Video - Male |
| Supported Resolution | 1920 x 1200 |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 25-pin DVI-D Digital Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
